- Page 1 16HP Eurorack Module Built & designed in Belgium www.shakmat.com Shakmat Four Bricks Rook Building Guide...
-
Page 2: Table Of Contents
1.2 kΩ resistors ..................... 11 5.2.8 Push buttons ....................12 PCB stacking ......................... 13 Front panel preparation ..................... 14 LEDs mounting ........................ 15-16 Nuts mounting ........................17 Potentiometers & buttons caps ..................18 Powering & basic testing ....................18-19 • www.shakmat.com... -
Page 3: Preamble
1. Preamble Thank you for purchasing a Shakmat DIY kit ! We spare no effort in our kit packing process to prevent any mistakes or missing parts. In this document as well, we do our best to describe the assem- bly process in the most practical and comprehensive way. -
Page 4: Component List & Necessary Tools
4x 5.5 kΩ 1% resistors 1x 1.2 kΩ 1% resistor 11x 1N4148 diodes 1x 78L05 regulator 1x WhiteLED 9x Amber LEDs 9x Push buttons 4x M3 screws 4x M3 nuts 5x Round push buttons caps 4x Square push buttons caps • www.shakmat.com 03/19... -
Page 5: Pcb Details

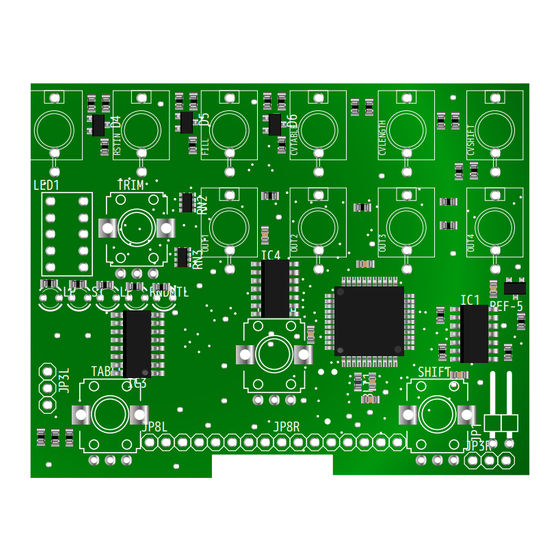

3. PCB details LED1 TRIM RNDMTL IC1 REF-5 LENGTH TABLE SHIFT JP8L JP8R JP3R Top PCB Front & back RECORD FUNCTION ERASE QUANTIZE SHAKMAT MODULAR FOUR BRICKS ROOK v1.1 PAD1 PAD2 PAD3 PAD4 Bottom PCB Front & back • www.shakmat.com 04/19... -
Page 6: Top Pcb Assembly
LED1 TRIM pins and nothing else. You will solder the remaining pins once the potentio- meter is well placed through its front RNDMTL IC1 REF-5 LENGTH panel hole. TABLE SHIFT JP8L JP8R JP3R • www.shakmat.com 05/19... -
Page 7: Big Potentiometers
If necessary, you can reheat the only pin you have solde- red to adjust the pot placement. Tighten RNDMTL IC1 REF-5 Once the placement is OK, you can Tighten LENGTH solder every remaining pin. TABLE SHIFT JP8L JP8R JP3R Tighten • www.shakmat.com 06/19... -
Page 8: Back
Place them, with the short pin side through the hole. Use the same procedure as for the smaller headers. It is even more important to have these two big headers upright than the smaller headers. • www.shakmat.com 07/19... -
Page 9: Bottom Pcb Assembly
Then, once your component is upright and flat with the PCB, solder the remaining pins. SHAKMAT MODULAR FOUR BRICKS ROOK v1.1 Front 5.2.1 1N4148 Diodes (x11) Flip the PCB and place the eleven diodes. -
Page 10: Electrolytic Capacitors
PCB. Also pay attention to the orientation, the flat & round contour of the component have to match the RECORD FUNCTION ERASE QUANTIZE contour of the PCB silkscreen. PAD1 PAD2 PAD3 PAD4 • www.shakmat.com 09/19... -
Page 11: Kω Resistor
RECORD FUNCTION ERASE QUANTIZE PAD1 PAD2 PAD3 PAD4 5.2.5 5.6 kΩ 1% resistor Solder the 5k6Ω resistor. There’s no orientation to observe on resistors. RECORD FUNCTION ERASE QUANTIZE PAD1 PAD2 PAD3 PAD4 • www.shakmat.com 10/19... -
Page 12: 33 Kω Resistors
There’s no orientation to observe on resistors. RECORD FUNCTION ERASE QUANTIZE PAD1 PAD2 PAD3 PAD4 5.2.7 1.2 kΩ 1% resistor (x4) Solder the four 1k2Ω resistors. There’s no orientation to observe on resistors. RECORD FUNCTION ERASE QUANTIZE PAD1 PAD2 PAD3 PAD4 • www.shakmat.com 11/19... -
Page 13: Push Buttons
We recommend you to place the buttons, then flip the PCB (holding the button in place with a RECORD FUNCTION ERASE QUANTIZE piece of cardboard) and press it against a table. PAD1 PAD2 PAD3 PAD4 • www.shakmat.com 12/19... -
Page 14: Pcb Stacking
JP3R RECORD FUNCTION ERASE QUANTIZE SHAKMAT MODULAR FOUR BRICKS ROOK v1.1 PAD1 PAD2 PAD3 PAD4 It’s now time to join and solder the two PCBs together. Be very careful during this step. If you solder every pin and the PCBs arn’t well alligned, you will likely not be able to correct it and will encounter all sorts of problems on your way to the end of this build. -
Page 15: Front Panel Preparation
You can screw them almost until the end of the thread. In addition to these, two other nuts added later will assure the stability & alignment of the PCB’s bottom half. • www.shakmat.com 14/19... -
Page 16: Leds Mounting
Assemble the PCBs & front panel with some nuts: one on the Clock input, one on Out 4 and one on the Length potentiometer. Once everything is well secured, it’s time to adjust the two small M3 nuts you’ve screwed on (...) • www.shakmat.com 15/19... - Page 17 Triple check the display alignment through the front panel window. When all of its legs are soldered, it is imposible to correct its placement. Once it’s nicely placed, you can solder the remaining legs of the display and trim them all. • www.shakmat.com 16/19...
-
Page 18: Nuts Mounting
To ensure that these M3 nuts don’t become loose over time and fall inside your case (potentially PAD1 PAD2 PAD3 PAD4 causing electrical damages), we recommand you to put a little dab of loctite or nail varnish over them. • www.shakmat.com 17/19... -
Page 19: Potentiometers & Buttons Caps
-12V normally, the display should show an alphanumeric character. t The Trig Length & Play mode SHAKMAT MODULAR FOUR BRICKS ROOK v1.1 LED should be on. If nothing is on, turn off the rack immediately. • www.shakmat.com 18/19... - Page 20 If at any moment you feel lost in a menu or stucked with something you don't understand, turn the module off and on again. After testing, take time to read the manual before playing - enjoy ! • www.shakmat.com 19/19...
- Page 21 www.shakmat.com...
