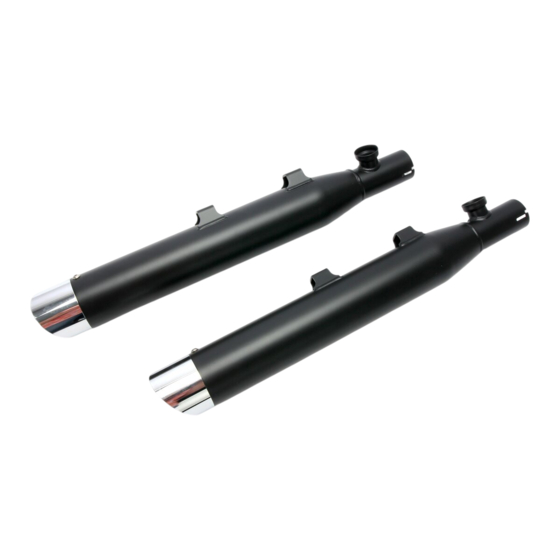

1 – FRONT MUFFLER ASSEMBLY
1 – REAR MUFFER ASSEMBLY
Instruction Manual >
Read all instructions carefully and completely before installing your new slip-on mufflers
1.
Unbolt the headpipe support clamp from the support bracket located midway down the rear headpipe and save
the hardware for reinstallation.
2.
Loosen all heatshield clamps for clearance but do not remove the heatshields.
3.
Loosen both headpipes at the cylinders. Remove and save the mounting bolts that secure the mufflers to the
mounting bracket/crossover tube.
4.
Loosen the stock muffler clamps then rotate the headpipes/mufflers out until the crossover slips disengage.
Remove the stock mufflers from the headpipes. Save the stock clamps because they will be reused.
5.
Remove gaskets from stock muffler crossover slips and install them into the supplied slip-on mufflers. If needed,
replacement gaskets may be purchased through your dealer (HD Part #65927-00).
6.
Slide the stock clamps over the slip-on mufflers and position them as shown in Figure 1.
7.
NOTE: THE MUFFLER WITH THE COBRA LOGO WILL ALWAYS BE THE REAR MUFFLER.
headpipes (reverse the order of removal) until the mounting holes align and crossover slips engage. Fasten the
mufflers using the stock mounting bolts in the same manner as stock but do not tighten.
ORIENT STOCK
CLAMPS WITH HEX
HEAD AS SHOWN
STOCK CROSSOVER
SLIP GASKET
POSITION OF MUFFLERS AND MOUNTING BRACKETS SHOWN ABOVE MAY VARY FROM ACTUAL APPLICATION
Disclaimer: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION
CONTROLLED MOTOR VEHICLES.
DOCUMENT NO. 0017
REV. A
07/16
23801 E. La Palma Ave., Yorba Linda, Ca 92887 Ph. 714.692.8180 Fax. 714.692.5016
®
FRONT
MUFFLER

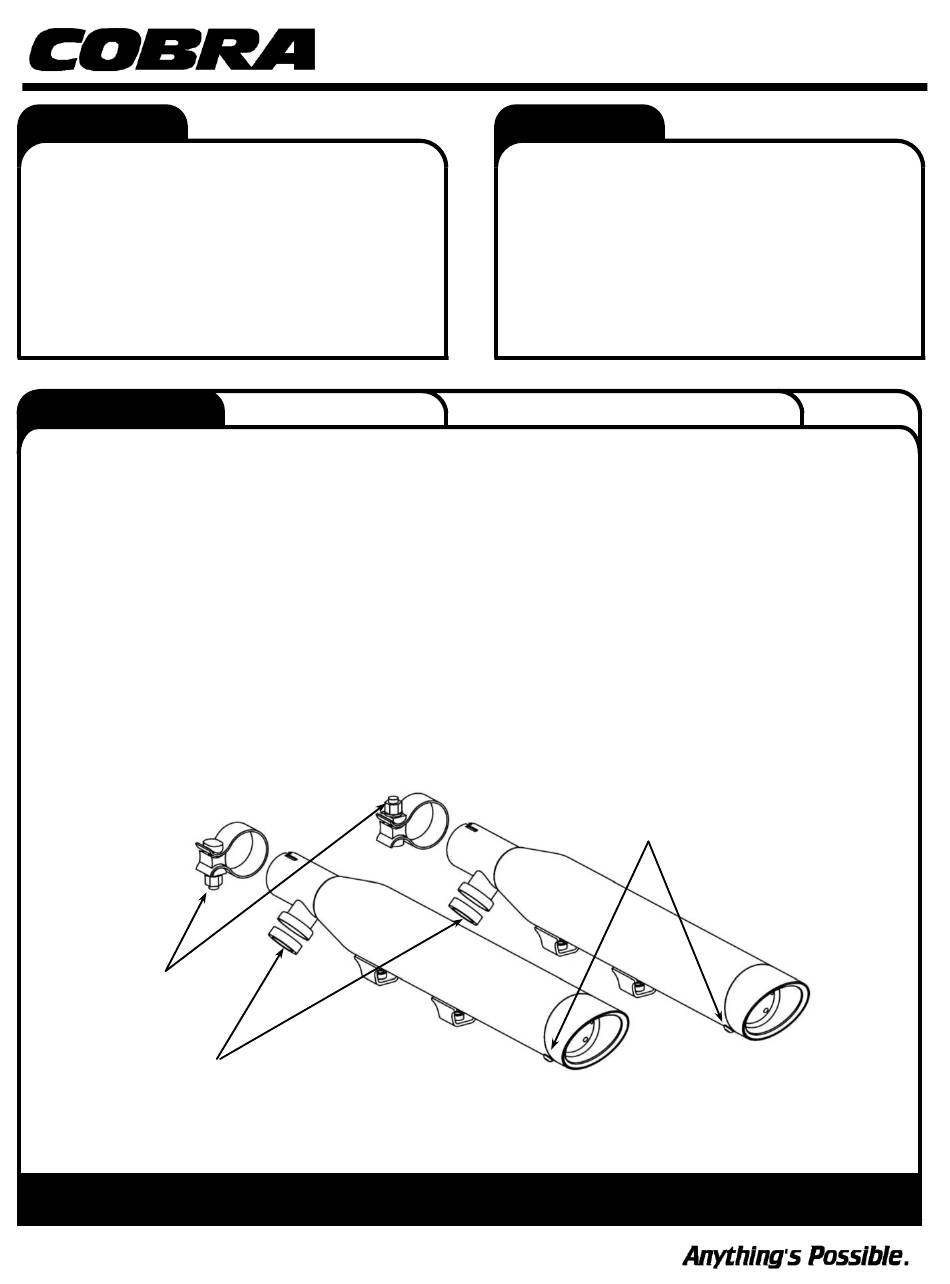

FIGURE 1
Continued on Page 2
Application(s) >
HARLEY:
SPORTSTER 883
SPORTSTER 1200 CUSTOM
SPORTSTER 1200 LOW
SPORTSTER 1200 NIGHTSTER
SPORTSTER 1200 ROADSTER
SPORTSTER 1200 FORTY EIGHT
6030RB
REMOVE BOLT AND ROTATE TIP
FOR DIFFERENT TIP POSITIONS
REAR
MUFFLER
www.cobrausa.com
04-13
04-13
06-11
07-12
04-08
10-13
Page 1 of 2
