Edbak PWB2 Instruction Manual

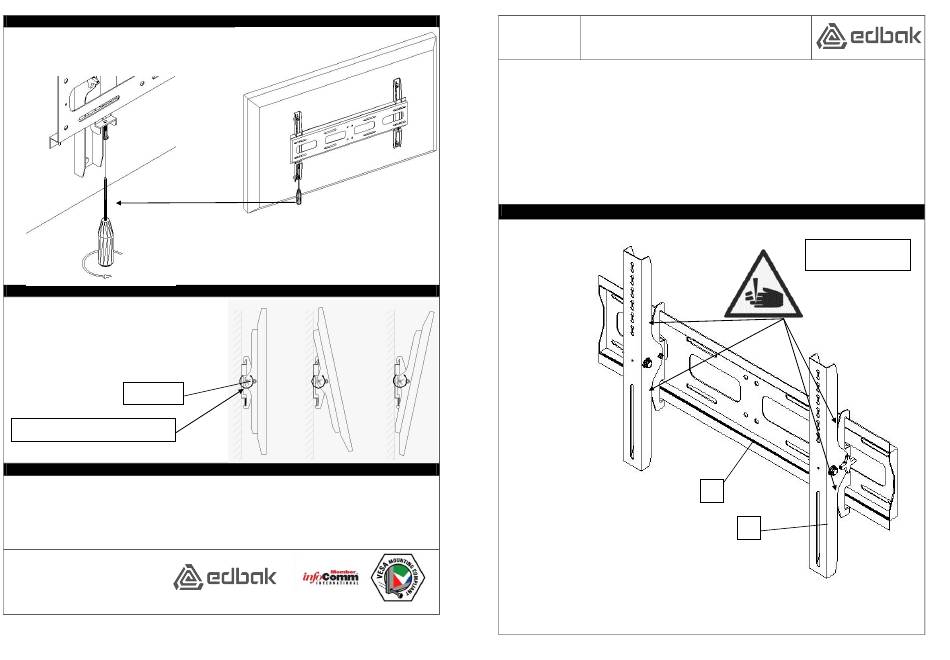

4. Security screw

When the screen is hanging securely on the back plate, tighten solidly two security screws situated in
bottom part of front panels using Philips screw driver.

5. Tilt adjustment

Tilt adjustment can be carried out only after
execution of point 4.
In order to change viewing angle it is necessary
to slightly loosen the handles on the sides of
both front plates, set up desired viewing angle
and tighten the handles.
Handle
Warning! Watch at your fingers!
Maintenance
6.
Before maintenance of wall mount it is necessary to turn off and unplug plasma/LCD screen.
Every 6 months run periodical check the condition of screw joints and in case they are loose, please
tighten them again.
Wipe the screen up with dry cloth. If the wall mount is very dirty, it is necessary to remove the dirt first
with neutral cleaner diluted with water, and than wipe the mount up with dry cloth. You can not use such
cleaners like solvent, furniture wax as it may cause peeling off of the powdercoated metal parts.
EDBAK Sp. z o.o.
Piotrowice 186
23-107 Strzyżewice, PL
+48 81 562 81 19
www.edbak.pl info@edbak.pl
Rev.date: 14-02-2013 10:13
instruction_manual_PWB2[EN]_v.3.1.doc
Universal tilting wall mount for 42"-55"
PWB2
Instruction manual

SAFETY WARNING!

Remarks regarding safety and installation
INSTRUCTIONS MUST BE ALWAYS FOLLOWED PRECISELY
1. Before installation read carefully this installation manual and instruction manual of your plasma/LCD
screen for proper installation.
2. Installation of this unit should be carried out by at least two qualified technicians.
3. This unit is not adapted to direct installation on the ceiling surface. Mounting to the ceiling is only possible
with CM1 adapter.
4. EDBAK is not liable for any damage or injury caused by mishandling or improper installation.
5. Maximum capacity load: 80 kg
6. Mounting interface: min. 100x100 mm, max 750x460
7. It is forbiden to use the bracket if it is damaged.
8. To mount the bracket use at least 6 screws/anchores with minimum tention load general of 1 kN
Universal Tilting Wall Mount PWB2

List of components:

1. Back plate – 1 pcs.
2. Front plate – 2 pcs..
3. Fixings and spacers - 1 bag
4. Instruction manual – 1 pcs.

Tools required for installation (not included):

Allen key nr 3,4,5, 6 – 1 pcs.
-
Philips PH2 screwdriver – 1 pcs.
-
Warning! Watch
your fingers!
1
2
