TCi KLC Series Installation Manual

Warnings and Cautions
Dangerous Voltage Warning: warns of
Warning
situations in which a high voltage can
cause physical injury and/or equipment
damage. The text next to this symbol
describes ways to avoid the danger.
General Warning: warns of situations
Warning
that can cause physical injury and/or
equipment damage by means other
than electrical. The text next to this
!
symbol describes ways to avoid the
danger.
General Safety Instructions
Warning
Be sure to read, understand, and
follow all safety instructions.
!
Warning Only qualified electricians should
carry out all electrical installation and
maintenance work on the V1k drive
!
output filter.
Warning
All wiring must be in accordance with
the National Electrical Code (NEC)
and/or any other codes that apply to
!
the installation site.
Warning
Disconnect all power before working
on the equipment. Do not attempt any
work on a powered V1k output filter.
Warning
The V1k, VFD, motor, and other
connected equipment must be
properly grounded.
Warning
The VFD terminals and connected
cables are at a dangerously high
voltage when power is applied to the
VFD, regardless of motor operation.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Field Wiring
Field Wiring Connection Terminals
Compression type terminals are provided for all line wiring
connections. The wire size capacity ranges and tightening torque
for the power terminals are listed in the table.
Input and Output

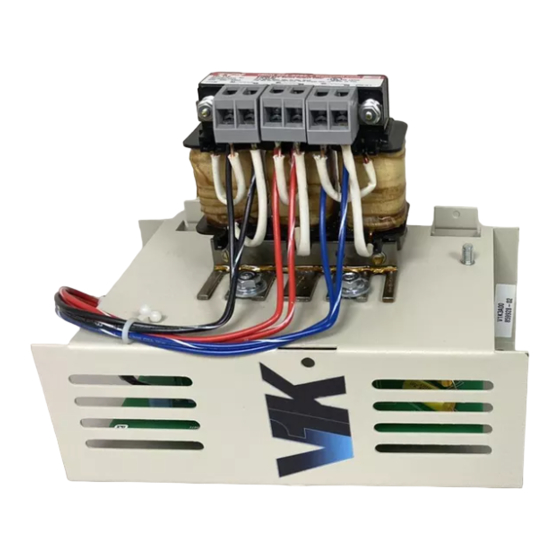

V1k
Motor Power
Model
Numbers
Wire Size
V1k2A to 12 -18
V1k12A
V1k16A to 4 - 18
V1k80A
V1k110A to 2/0 - 6
V1k130A
V1k160A 250 MCM - 6
V1k200A to Two: 2/0 - 14
V1k250A
V1k305A 600 MCM - 4
Two: 250 MCM - 1/0
V1k362A Two: 350 MCM - 4
V1k420A to Two: 600 MCM - 2
V1k600A
V1k750A 350 MCM - 6
For V1k Products with the Short-Circuit Rating Option.
Required fusing for SCCR.
V1k Series Device Withstand Rating
Class J fuse rated
2-45A 5,000A; 600 VAC
225% of FLA
Class J fuse rated
55-160A 10,000A; 600 VAC
225% of FLA
Class J fuse rated
200-305A 18,000A; 600 VAC
450A max
Class L fuse rated
362A 100,000A; 600 VAC
300% of FLA
Class L fuse rated
420-750A 100,000A; 600 VAC
1200A max
See Trans Coil website for dimensions tables. Please
contact TCI Technical Support or your TCI distributor for
application information regarding the use of V1k output
filters on the output side of the VFD.
Torque
(in. - lb.)
10
20
Performance and Protection for Drives
120
275
120
500
275
500
Installation
275
Branch Protective
Device
V1k
Guide
