TCi KLC Series Installation Manual

Warnings and Cautions
Dangerous Voltage Warning: warns of
Warning
situations in which a high voltage can
cause injury and/or equipment damage.
The text next to this symbol describes
ways to avoid danger.
Warning
General Warning: warns of situations
that can cause physical injury and/
or equipment damage by means other
!
than electrical. The text next to this
symbol describes ways to avoid the
danger.
General Safety Instructions
Warning
Be sure to read, understand, and follow
!
all safety instructions.
Warning
Only qualified electricians should
carry out all electrical installation and
!
maintenance work on output filter.
Warning
All wiring must be in accordance with
the National Electrical Code (NEC)
!
and/or any other codes that apply to
the installation site.
Warning
Disconnect all power before working
on the equipment. Do not attempt any
work on a powered output filter.
Warning
The KLC, VFD, motor, and other
connected equipment must be properly
grounded.
Warning
The VFD terminals and connected
cables are at a dangerously high voltage
when power is applied to the VFD,
regardless of motor operation.

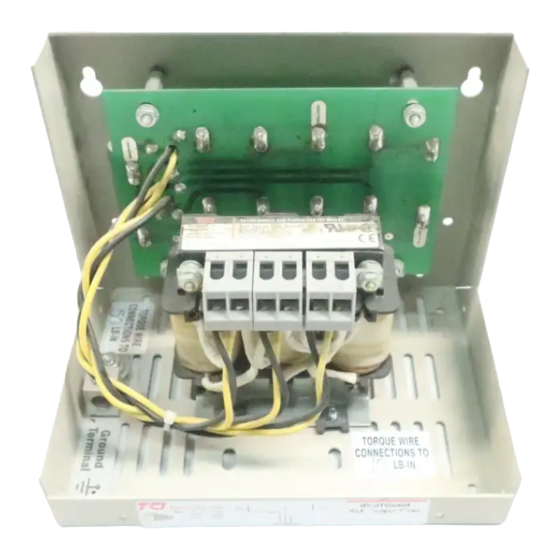

Field Wiring
KLCUL Field Wiring Connection Terminals
Compression type terminals are provided
for all line wiring connections. The wire size
capacity ranges and tightening torque for
the power terminals are listed in the table.
Input and Output Motor Power
KLCUL Model
Numbers
Wire Size
KLCUL2A to
12 - 18
KLCUL12A
KLCUL16A to
4 - 18
KLCUL55A
KLCUL80A 1 - 22
KLCUL110A to
2/0 - 6
KLCUL130A
KLCUL160A to
250 MCM - 6
KLCUL200A
KLCUL250A to 600 MCM - 4
KLCUL300A Two: 250 MCM - 1/0
KLCUL360A Two: 350 MCM - 4
KLCUL420A to
Two: 600 MCM - 2
KLCUL600A
Two: 800 MCM - 300
KLCUL750A
MCM
See www.transcoil.com for dimension tables
Please contact TCI Technical Support
or your TCI distributor for application
information regarding the use of KLC
output filters on the output side of the VFD.
TCI, LLC
7878 North 86th Street
Milwaukee, WI 53224
Ph: 800-TCI-8282
www.transcoil.com
Torque
(in. - lb.)
10
20
KLC/KLCUL
35
120
Installation
275
500
275
500
500
7878 North 86th Street
Milwaukee, WI 53224
Version 1.5
Guide
TCI, LLC
Ph: 800-TCI-8282
www.transcoil.com
Part # 25389 Apr. 2, 2012
