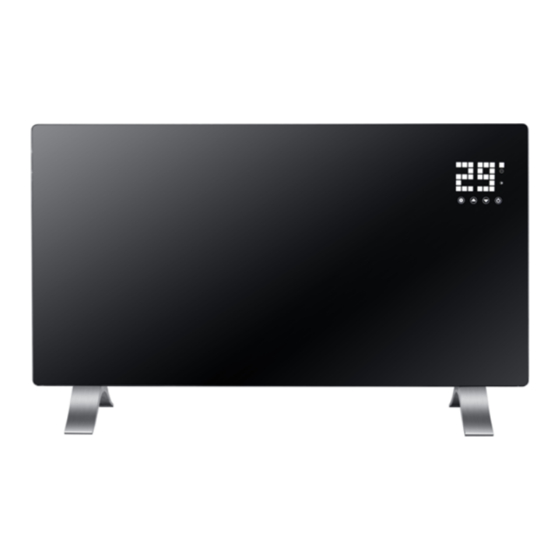

- Page 1 KOGAN SMARTERHOME™ 2400W GLASS PANEL HEATER KASGSHT24BA, KASGSHT24WA...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Installation Connect to SmarterHome™ App Operation Google Home Control Amazon Alexa Control Notes... -
Page 3: Safety & Warnings
• Do not attempt to repair this product yourself. If the product or its power supply experiences any malfunction or damage, stop using it immediately and contact Kogan.com to arrange a repair. • If the power cable shows any signs of damage, cease use immediately and contact help.Kogan.com for support. - Page 4 • This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by Kogan.com, may result in fire, electric shock or injury to persons. • Check exterior walls for areas of damage before installing the heater.
-
Page 5: Components
COMPONENTS A Glass panel heater (x1) B 35mm self-tapping screws (x2) C M4 8mm screws (x8) D Wall anchors (x2) E User guide (x1) -
Page 6: Overview
OVERVIEW Air Outlet Control Display Switch Setting button Timer indicator Up button Temperature (°C) Down button LED number display Power button ECO mode Heating element working indicator Low/High heating mode Low indicator (50% power) Wi-Fi Indicator (solid when connected; otherwise, flashing) High indicator (100% power) -
Page 7: Installation
INSTALLATION Leg Installation Remove the heater and all accessories from the packaging. Place the heater on a flat, dry, and clean surface. Secure the legs in place using the M4 8mm screws, as shown below. Turn the heater right-side up and ensure it sits firmly on its legs. Notes: •... - Page 8 Wall Mount Installation Note: The heater MUST be installed with a minimum distance of 100mm from all four sides of the heater. 100mm Air Outlet 100mm 100mm 100mm Floor Drill two holes 538mm apart, ensuring they are straight using a spirit level, then insert the wall anchors.
-
Page 9: Connect To Smarterhome™ App
CONNECT TO SMARTERHOME™ APP Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To register: If you already have a SmarterHome account, select ‘Log In’. To register a new account, select ‘Sign Up’. - Page 10 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (Wi-Fi indicator will be flashing rapidly). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by press and holding the setting button for five seconds until Wi-Fi indicator is flashing rapidly.
- Page 11 Ensure that the device is in pairing mode, with the Wi-Fi indicator rapidly flashing, and tap “Next”. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.
- Page 12 Having trouble connecting? The prior steps detail the process for “EZ Mode” connection. If that does not work for your connection, we suggest trying it again, and if still no success, attempting the following method for AP Mode connection. Set device in AP pairing mode Set the device in pairing mode by pressing and holding the five seconds until Wi-Fi indicator is flashing slowly.
- Page 13 Using the App Heating Level Child-lock Set temp. Environment temp. Heating Increase temp. Decrease temp. Button child-lock Count down °C/F Mode ON/OFF Settings Schedule Notes: • When device is online, it can be controlled. • When device is offline, it displays “Offline” and cannot be remotely powered on.
-
Page 14: Operation
OPERATION Turn the Heater On/Off Connect the heater to a power socket and turn on the main switch: the heater will be in standby. Press the power button to begin heating operation: the display will show the current ambient temperature. Press the power button to turn the heater off. - Page 15 During operation, press and hold the setting button for 5 seconds. Wi-Fi will now be reset, and the Wi-Fi indicator light will be flashing rapidly. Connect the heater to the Kogan SmarterHome™ app following the steps from the “Connect To SmarterHome™ App” section of this user guide.
-
Page 16: Google Home Control
From the home page of the Google Home app, select the “+” icon to access the ‘Add and manage’ page. Select ‘Set up device’, then under the Works with Google banner, select ‘Have something already set up?’ Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™ service. - Page 17 Tap ‘Authorise’ to grant Google permission to access the SmarterHome™ app and your devices. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 18 Tap on any of the devices to view a list of available commands. Note: Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product’s smart functionality, please use the Kogan SmarterHome™ app.
-
Page 19: Amazon Alexa Control
AMAZON ALEXA CONTROL Note: You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Alexa app From the home page of the Alexa app, select the “ ” icon in the top-right and select Skills &... - Page 20 Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 21 SmarterHome™ account. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa’s voice commands. Note: Please note that Alexa can only control the base/core functions of any compatible SmarterHome™...
-
Page 22: Notes
NOTES... - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
