QUICK INSTALL GUIDE
Wireless Controller System
with High-Power 900N
Access Points
XWS-2500
System Includes

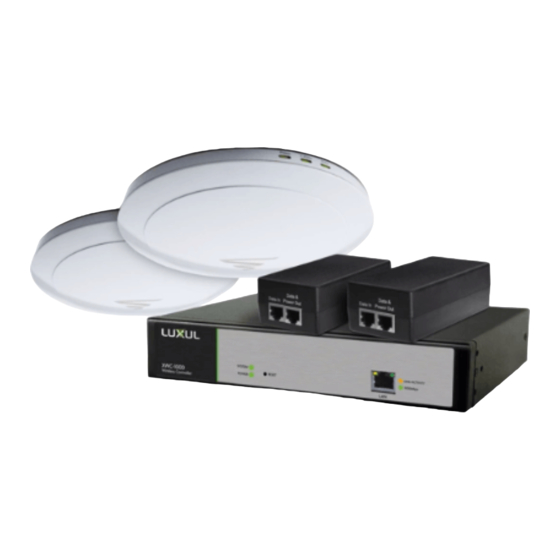

One: XWC-1000 Wireless Controller
„
(Includes Rack Mount Kit and Power Cord)
Two: XAP-1500 High-Power 900N Access Points
„
Two: PoE Injectors
„
Advertisement
Table of Contents
Related Manuals for Luxul XWS-2500
Summary of Contents for Luxul XWS-2500
- Page 1 QUICK INSTALL GUIDE Wireless Controller System with High-Power 900N Access Points XWS-2500 System Includes One: XWC-1000 Wireless Controller „ (Includes Rack Mount Kit and Power Cord) Two: XAP-1500 High-Power 900N Access Points „ Two: PoE Injectors „...
- Page 2 READ ME FIRST - AP COMPATIBILITY The Access Points included in this XWS-2500 Wireless Controller Kit are ready for setup. If you don’t plan to use the Wireless Controller to manage any older or previously- installed APs, you can skip to the next section titled, “Before You Begin Installation”.
- Page 3 BEFORE YOU BEGIN INSTALLATION Access Point Firmware: If you are using APs other than those included in this kit, please refer to READ ME FIRST - AP COMPATIBILITY on the previous page. Controller Setup Sequence: Be sure to setup the XWC-1000 Wireless Controller BEFORE powering up the APs.
- Page 4 Access Point Placement: Place APs to ensure adequate coverage, but not so far apart that there is no signal overlap. You may have to experiment with AP placement to optimize the roaming experience. The APs should overlap enough that the client device has a good connection to the AP to which it is currently attached, but also sees the next-nearest AP.
- Page 5 WIRELESS CONTROLLER SYSTEM KIT SETUP 1. Use an Ethernet cable to plug the XWC-1000 Wireless Controller into the network. Do not connect any APs to the network yet. Note:cBecsurecacDHCPcserverciscpresentconcthecnetworkcandcthatcallcLuxulcAPscandc thecXWC-1000cWirelesscControllercwillcsharecthecsamecsubnet.cIfcyourcnetworkc usescac192.168.0.XcIPcaddresscscheme,cyoucarecreadyctocstartcthecsetupcprocess.cIfc not,cyoucwillcneedctocmanuallycchangecthecIPcaddresscofcyourccomputerctocbecablec tocconfi c gurecthecXWC-1000cWirelesscControllercsocthatcitcisconcthecsamecsubnetcasc yourcnetwork.cForchelpcsettingcthecIPcaddresscofcyourcparticularcoperatingcsystem,c visitcluxul.com/ip-addressing. 2. To access the Setup Wizard, open your web browser and enter the Wireless Controller’...
- Page 6 No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights.
- Page 7 This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Hereby, Luxul, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020, declares that this Luxul XAP-1500 is in compliance with the essential requirements and other relevant provisions of Directive 1995/5/EC.
- Page 8 Sales Technical Support P: 801-822-5450 P: 801-822-5450 Option 3 E: sales@luxul.com E: support@luxul.com © 2015 Luxul. All Rights Reserved. LUX-QIG-XWS-2500 04281509...
