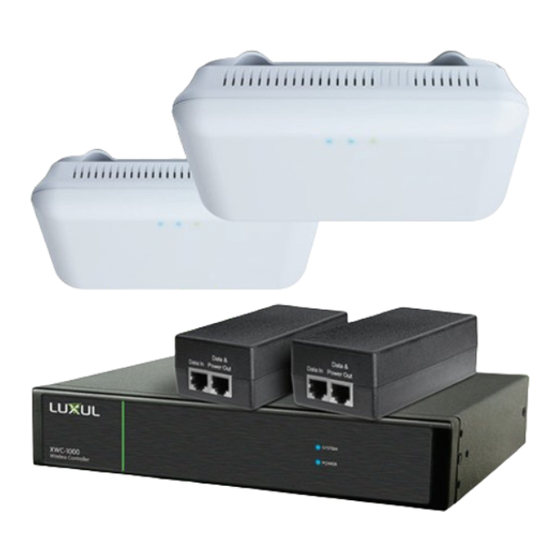

- Page 1 QUICK INSTALL GUIDE Wireless Controller System with High Power AC1900 Dual-Band Wireless APs XWS-2510 Includes: XWC-1000„Wireless„Controller„ „ „ (Includes„Rack„Mount„Kit„and„Power„Cord) XAP-1510„High„Power„AC1900„Dual-Band„Wireless„APs„ „ „ PoE„Injectors „ „...
- Page 2 SETUP AND CONFIGURATION Before You Begin Installation Access Point Firmware:„If„you„are„using„APs„other„than„those„included„in„ „ „ this„kit,„you„may„need„to„manually„upgrade„the„AP„firmware„before„installing„ „ the„Wireless„Controller.„Luxul„APs„running„firmware„version„5„or„later„are„ Controller-compatible„and„can„be„used„with„the„Controller„as-is. Controller Setup Sequence:„Be„sure„to„setup„the„XWC-1000„Wireless„ „ „ Controller„BEFORE„powering„up„the„APs.„Once„logged„into„the„Wireless„ Controller,„the„Setup„Wizard„will„prompt„you„when„it„is„time„to„add„the„APs„ to„the„network.„A„DHCP„server„is„required„on„the„network. Accessibility:„Once„an„Access„Point„is„controlled„by„the„XWC-1000„Wireless„ „ „ Controller,„the„web„interface„on„the„AP„is„no„longer„enabled.„Conversely,„if„ an„AP„configuration„is„managed„via„its„web„interface,„communication„with„ the„XWC-1000„Wireless„Controller„will„be„disabled.„To„change„an„AP„from„ Controller-managed„to„standalone„(or„the„reverse),„restore„the„AP„to„Factory„ Default.„„ Firmware Updates:„The„XWC-1000„Wireless„Controller„automatically„ „ „ checks„for„firmware„updates„of„Controller-compatible„APs„and„the„Wireless„ Controller„itself,„but„requires„Internet„access„to„do„so.„The„Wireless„ Controller„will„still„operate„without„Internet„access,„but„firmware„updates„ will„not„be„available.
- Page 3 Physical Installation Connecting Devices:„The„XWC-1000„Wireless„Controller„simply„connects„ to„the„network.„The„XAP-1510„APs„connect„to„the„same„network„via„the„ included„PoE+„Injectors,„or„via„a„compatible„802.3at„Power„over„Ethernet„ (PoE+)„switch. PoE+ Injectors Wireless Controller LINK/ACTIVITY POWER UPLINK LINK/ACT RESET SYSTEM XMS-1010P POWER UPLINK 10-Port/8 PoE+ Gigabit Managed Switch PoE+ Switch Wireless Controller...
- Page 4 Access Point Placement:You„may„need„to„experiment„with„AP„place- ment„to„optimize„the„roaming„experience.„Place„APs„to„ensure„adequate„ coverage,„but„not„so„far„apart„that„there„is„no„signal„overlap.„Adjacent„APs„ should„overlap„enough„that„the„client„device„has„a„good„connection„to„ the„AP„to„which„it„is„currently„attached,„but„also„sees„the„next-nearest„AP.„ Ideally,„roaming„clients„should„see„signal„strength„of„two„overlapping„APs„in„ the„range„of„-60„to„-70„dBm„at„the„midway„point„between„two„APs.„To„learn„ more„about„AP„placement,„visit„luxul.com/ap-placement. Note:nConsidernusingnEkahaunHeatMapperntonassistnwithnthisnprocess,n availablenfromnwww.ekahau.com.nLuxulnalsonoffersnanninformativen “How-To”nvideononnHeatMappernatnluxul.com/how-to-videos.
- Page 5 WIRELESS CONTROLLER SYSTEM KIT SETUP 1.„ Use„an„Ethernet„cable„to„plug„the„XWC-1000„Wireless„Controller„into„the„ network.„Do„not„connect„any„APs„to„the„network„yet. Note:nBensurenanDHCPnservernisnpresentnonnthennetworknandnthatnallnLuxuln APsnandnthenXWC-1000nWirelessnControllernwillnsharenthensamensubnet.n Ifnyournnetworknusesnan192.168.0.XnIPnaddressnscheme,nyounarenreadynton startnthensetupnprocess.nIfnnot,nyounwillnneedntonmanuallynchangenthenIPn addressnofnyourncomputerntonbenablentonconfigurenthenXWC-1000nWirelessn Controllernsonthatnitnisnonnthensamensubnetnasnyournnetwork.nFornhelpn settingnthenIPnaddressnofnyournparticularnoperatingnsystem,nvisitnluxul. com/ip-addressing. 2.„ To„access„the„Setup„Wizard,„open„your„web„browser„and„enter„the„Wireless„ Controller’ s „default„192.168.0.19„IP„address„in„the„address„field.„Log„in„to„the„ Wireless„Controller„using„the„default„user„name„and„password: Default IP: 192.168.0.19 „ Username: admin Password: admin„ Note:nIfntherenisnanotherndevicenonnthennetworknalreadynusingnthen 192.168.0.19naddress,nyou’llnneedntoneitherntemporarilyndisconnectnorn reconfigurenthatnotherndevice,nornmanuallynconfigurenthenWirelessn Controllernwithnandifferentnaddressnonnanseparatenisolatednnetwork. 3.„ Follow„the„built-in„Setup„Wizard„in„the„Wireless„Controller.„The„Wizard„ will„direct„you„to„power„the„APs„on„at„the„appropriate„time„and„walk„you„ through„completing„the„setup. Smart Tip:nFornmoreninformationnonnsetupnandnconfigurationnbestn practices,nvisitnluxul.com/smart-tips.
- Page 6 RESETTING THE CONTROLLER Reset/Reboot:„Use„a„paperclip„to„press„and„release„the„reset„button„on„ „ the„front„panel„of„the„Controller„to„force„it„to„reboot.„The„LEDs„will„go„dark„ once„the„button„is„released,„then„blink„slowly„while„the„controller„boots. Restore Factory Defaults:„To„restore„the„controller„to„Factory„Default„ „ configuration,„press„and„hold„the„reset„button„for„at„least„5„seconds.„The„ System„LED„will„blink„quickly„to„indicate„that„the„Controller„is„returning„to„ Factory„Default„configuration,„go„dark„for„a„few„seconds,„then„blink„slowly„ while„the„controller„reboots. Normal Operation:„When„the„controller„is„operating„normally,„the„System„ „ LED„will„blink„like„a„heartbeat,„i.e.„blink-blink-dark.
- Page 7 LEGAL AND REGULATORY INFORMATION No„part„of„this„document„may„be„modified„or„adapted„in„any„way,„for„any„purposes„ without„permission„in„writing„from„Luxul.„The„material„in„this„document„is„subject„ to„change„without„notice.„Luxul„reserves„the„right„to„make„changes„to„any„product„ to„improve„reliability,„function,„or„design.„No„license„is„granted,„either„expressly„or„ by„implication„or„otherwise„under„any„Luxul„intellectual„property„rights.„An„implied„ license„only„exists„for„equipment,„circuits„and„subsystems„contained„in„this„or„any„ Luxul„product. FCC ID:„W59XAP1510 IC:„8584A-XAP1510 Hereby,„Luxul,„14203„Minuteman„Drive,„Suite„201,„Draper,„Utah,„84020,„ declares„that„this„Luxul„XAP-1510„is„in„compliance„with„the„essential„ requirements„and„other„relevant„provisions„of„Directive„1995/5/EC. For„a„copy„of„this„report„send„a„self„addressed„stamped„envelope„to:„ Luxul„CE,„14203„Minuteman„Drive,„Suite„201,„Draper,„Utah,„84020.
- Page 8 Sales Technical Support P:„801-822-5450„ P:„801-822-5450„Option„3„ E:„sales@luxul.com E:„support@luxul.com Copyright„and„Trademark„Notices No„part„of„this„document„may„be„modified„or„adapted„in„any„way,„for„any„ purposes„without„permission„in„writing„from„Luxul.„The„material„in„this„ document„is„subject„to„change„without„notice.„Luxul„reserves„the„right„to„ make„changes„to„any„product„to„improve„reliability,„function,„or„design.„No„ license„is„granted,„either„expressly„or„by„implication„or„otherwise„under„ any„Luxul„intellectual„property„rights.„An„implied„license„only„exists„for„ equipment,„circuits„and„subsystems„contained„in„this„or„any„Luxul„product. ©„Copyright„2015„Luxul.„All„rights„reserved.„The„name„Luxul,„the„Luxul„ logo,„the„Luxul„logo„mark„and„Simply„Connected„are„all„trademarks„and„ or„registered„trademarks„of„Luxul„Wireless,„Inc.„All„other„trademarks„and„ registered„trademarks„are„property„of„their„respective„holders. LUX-QIG-XWS-2510„0151610...
