Cisco SOURCEfire 3D500 Quick Start Manual

Included items:
• one of the following Sourcefi re devices:
• Sourcefi re 3D500
• Sourcefi re 3D1000
• Sourcefi re 3D2000
These devices have identical chassis. To confi rm
which model you have, see your packing list.
• one power cord
• two straight-through Cat 5e Ethernet cables
• USB thumb drive
• rack-mounting kit (optional)
Required items:
• either a computer to use as a management console
or a monitor and keyboard to connect directly to the
device
• fl athead and Phillips screwdrivers for the
rack-mounting kit (optional)
LEDS, SPECIFICATIONS, REGULATORY, and SECURITY
Physical and Environmental Parameters
Parameter Description
Form factor 1U
Dimensions (D x W x H) 6.7" x 11.8" x 1.25" (17 cm x 30 cm x 3.2 cm)
Power adapter - AC input 1/6 Ampere maximum at 110-240 Volts 50-60 Hz
Power adapter - DC output 5 Ampere maximum at 12 Volts
Operating temperature 0°C to 40°C (32°F to 104°F)
Non-operating temperature -20°C to 75°C (-4°F to 167°F)
Non-operating humidity 5% to 95%, non-condensing at 45°C (113°F)
Cooling requirements Designed to operate in an air-conditioned environment
Regulatory Conformance
This Sourcefi re appliance conforms to multiple national and international standards. For a full list of
regulatory compliance, see the Sourcefi re 3D System Installation Guide .
Security Considerations
Before you install your appliance, Sourcefi re recommends that you
consider the following:
• Locate your appliance within a secure location that
prevents access by unauthorized personnel.
• Allow only trained and qualifi ed personnel to install,
replace, administer, or service the appliance.
• Always connect the management interface to a secure
internal management network that is protected from
unauthorized access.
!
WARNING!
This Sourcefi re appliance should be installed and maintained by
qualifi ed personnel only. Keep in mind the following safety
information to avoid system damage or personal injury:
• Remove all factory packaging before using the appliance.
• Provide adequate ventilation to prevent overheating. Do not
cover or block vents, or otherwise enclose the appliance.
• The appliance must be properly grounded when connecting
power to the power outlet.
• At all times, keep the chassis area free from dust.
• Lifting the chassis for rack installation may require two people,
as the unit is heavy.
• To avoid electrical shock, do not open or remove the chassis
covers or metal parts without proper instruction.
Quick Start Guide - 3D500/1000/2000 Devices
QUICK START GUIDE
Thank you for choosing Sourcefi re!
Before installing this device, download and follow the
instructions in the Sourcefi re Support Welcome Kit
(https://support.sourcefi re.com) to get started with
Sourcefi re Support, and to set up your Customer Center
account.

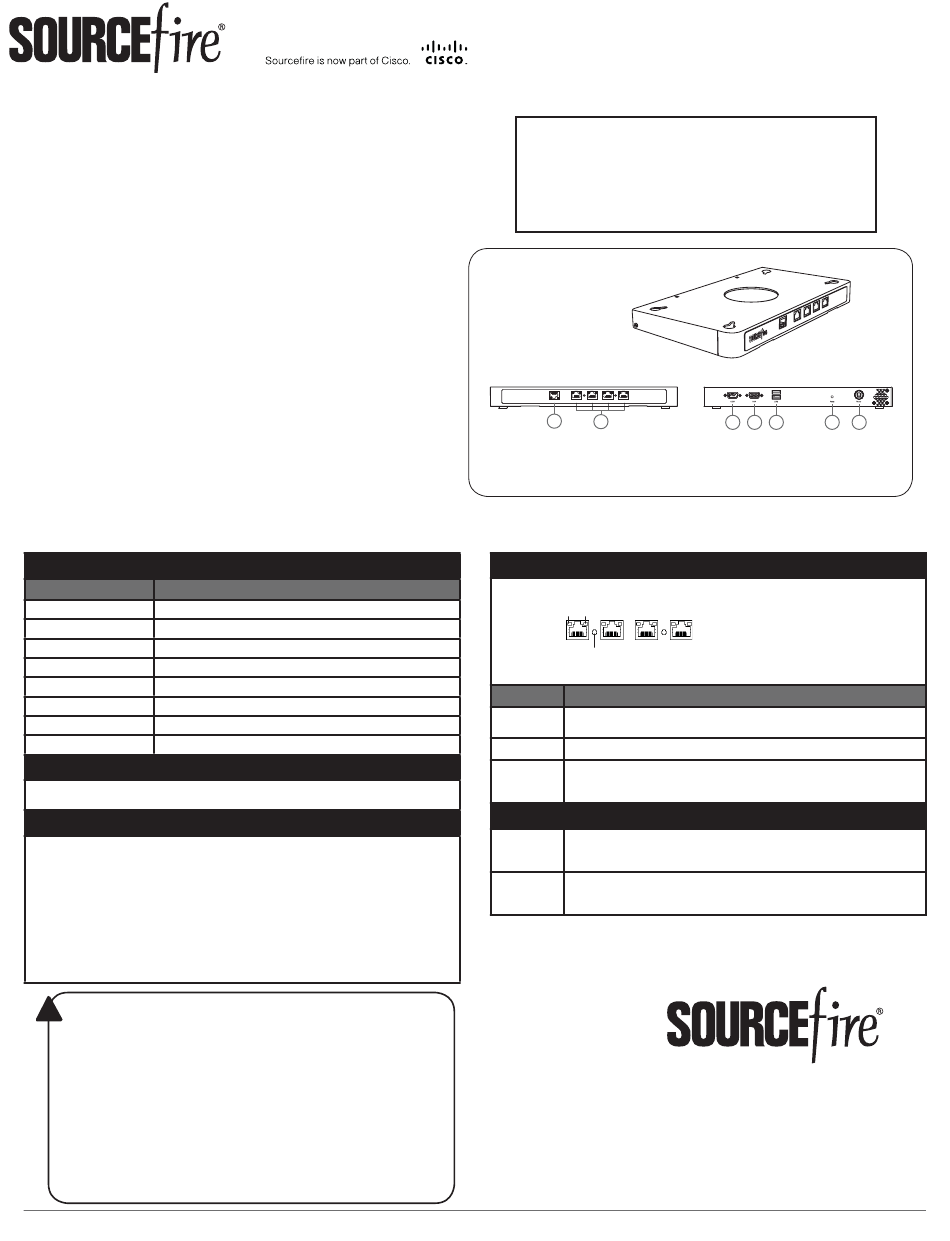

3D500/1000/2000
FRONT
MGMT 1 Bypass 2 3 Bypass
A
B
(A) Management Interface
(B) Sensing interfaces
Sensing Interface LEDs
FOUR PORT 1000BASE-T COPPER
Link Activity
Bypass
LEDs Description
Link The color of the LED indicates the speed of the connection. Refer to the
Sourcefi re 3D System Installation Guide for more information.
Activity A blinking LED indicates traffi c. If the LED is off, there is no activity.
Bypass Indicates that an inline pair has failed open. If the LED is on, an inline with
bypass inline set is inspecting traffi c normally. The LED is off at all other
times.
Management Interface LEDs (all)
Left Indicates activity on the port:
(activity)
• A blinking light indicates activity.
• No light indicates there is no link.
Right (link) Indicates whether the link is up:
• A light indicates the link is up.
• No light indicates there is no link.
Page 1 of 4
3D500/1000/2000
BACK
4
C D E
(C) Serial port
(D) VGA port
(E) USB ports
(F) Reset button
(G) Power supply connector
9770 Patuxent Woods Drive
Columbia, MD 21046 USA
800.917.4134 | +1.410.423.1901
support@sourcefi re.com
©2014 Cisco and/or its affi liates.
All rights reserved.
F G
2014-5.2-3
