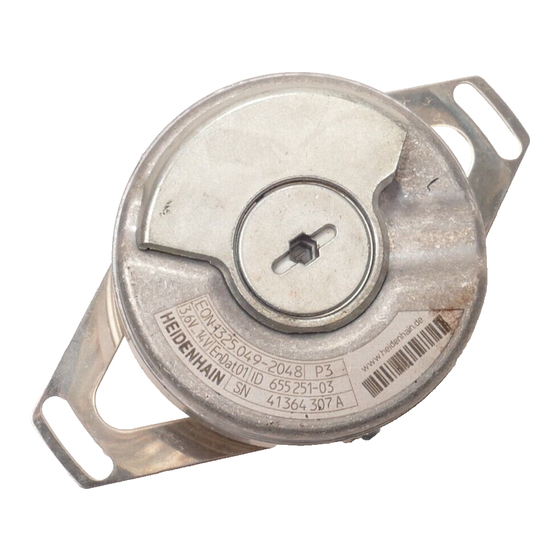

HEIDENHAIN EQN 1325.049 Mounting Instructions

Power supply

typical

without delay compensation

> 100 mm

Shield on housing

Zero position for shaft/cap alignment

Ø 4.5 mm

R ‡ 18 mm

†

Rising code values

†

Without load

> 100 mm

> 200 mm

Noise sources

Mounting kit included

Spacer

Note: Mounting and commissioning is to be conducted by a qualified specialist under

compliance with local safety regulations.

In addition to this, the machine manufacturer or designer himself must define the other data

required for final assembly (e.g. anti-rotation lock for screws required or not) for the respective

application.

Do not engage or disengage any connections while under power.

The drive must not be put into operation during installation.

{

Mounting Instructions

*I_737136-91*

Table of Contents

Do you have a question about the EQN 1325.049 and is the answer not in the manual?

Page 1 Power supply † Rising code values † typical Without load Mounting Instructions Mounting kit included without delay compensation Spacer General Information > 100 mm > 100 mm > 200 mm Note: Mounting and commissioning is to be conducted by a qualified specialist under compliance with local safety regulations.
Page 2 Assembly Electrical connection Do not remove threadlocker Press cable into place À Á Â Do not use the provided spacers for a coupling distance of 55±0.1 mm! Two ways of pressing the encoder out during dismounting Required mating dimensions À ¬...
