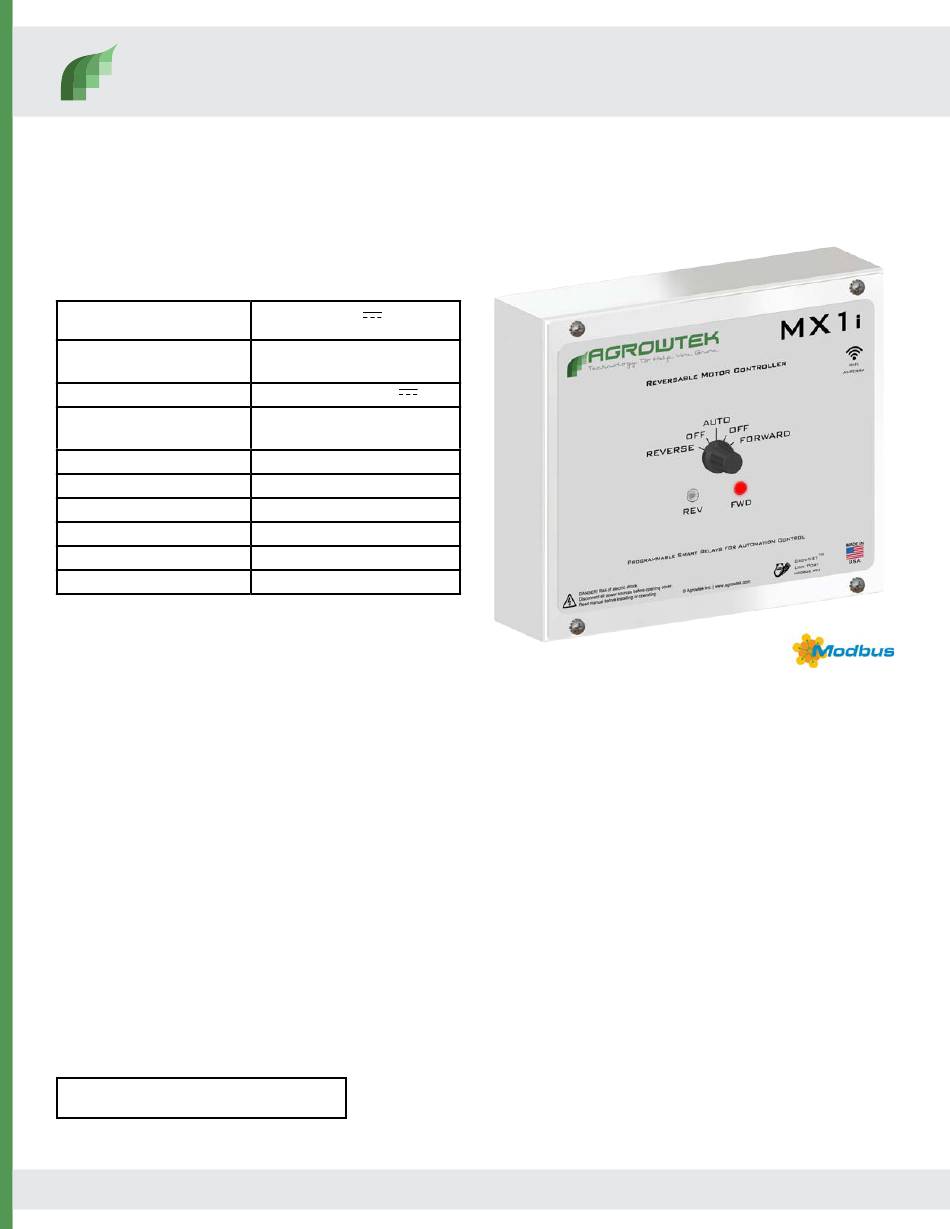

AGROWtEK
Technology to Help You Grow
Specifications
Input Power
Max Switching Current
Max Switching Voltage
HP Rating
Status Indicators
Enclosure Knock-Outs
Enclosure Rating
Interface
Relay Ratings
Relay Cycle Counters
Contents
KEEP THESE INSTRUCTIONS
1
Intelligent Reversing Motor Controller
for D.C. or Single-Phase A.C. Motors
2 W @ 12-24Vdc
Class II / Limited Energy Power Supply
8A @ 120Vac ~
2A @ 24Vdc
120 Vac ~ / 24Vdc
1/2HP (8FLA @ 120Vac ~)
Red LEDs, Forward/Reverse
(2) dia. 7/8"
TYPE 12K NEMA
GrowNET™, MODBUS
100,000 cycles
Up to 4 billion cycles per relay
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™
2
2
2
3
3
4
4
5
6
7
8
INSTRUCTION MANUAL
MX1i
9
9
10
10
11
11
11
11
12
12
12
12
12
Advertisement
Table of Contents
Related Manuals for Agrowtek MX1i
Summary of Contents for Agrowtek MX1i
-
Page 1: Table Of Contents
Technical Information AC Motor Wiring Troublshooting DC Motor Wiring Maintenance & Service Storage and Disposal Warranty KEEP THESE INSTRUCTIONS © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™ © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 2: Introduction
MX1i by the GCX control system on the device configuration page (see configuration.) The position is stored in the MX1i’s local memory every time the travel stops. In the event that an operator changes the position by using the manual knob on the front of the unit, the position will continue to be tracked and stored accurately in the MX1i’s memory. -
Page 3: Installation Instructions
à la borne de terre du châssis marquée. Installez tous les équipements électriques et le câblage conformément aux codes électriques nationaux et locaux. Pour une utilisation en intérieur dans des endroits secs seulement (0-80% RH sans condensation.) Remplacer les pièces réparable seulement avec ceux recommandés par Agrowtek Inc. External Features... -
Page 4: Dimensions
2.1mm DC barrel jack and included power supply, or c) the Vin terminal block on the circuit board for DIN rail power supplies. DC Power In DC Barrel Jack RJ45 Terminal Block GrowNET Port © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 5: Mounting The Relay
DANGER! Risk of injury or death from electric shock; disconnect all power before wiring or service. DO NOT drill holes into the enclosure or enlarge holes. Metal chips from drills can cause short circuits on the PCB. © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 6: Internal Component Locations
2. Motor Outputs Output connections for motor. 3. Motor Fuse Fuse sized according to specifications. Replace only with recommended fuse. 4. DC Power Optional DC power connection for backup power. © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 7: Ac Motor Wiring
FROM MX1i-AC GEAR MOTOR (RIDDER RW-45) A/C TERMINALS MOTOR GROUND (PE) LIMIT SWITCHES MOTOR FORWARD (W1) MOTOR NEUTRAL (U1) MOTOR REVERSE (V1) © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 8: Dc Motor Wiring
Power to the motor is switched by the relay to the output terminals. Limit switches on the motor are wired at the motor. Conduit is recommended for wiring connections. +24Vdc FROM MOTOR DC POWER SUPPLY © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 9: Connection To Growcontrol™ Gcx
Non-conductive grease is designed to prevent corrosion from moisture in electrical connectors. • Loctite LB 8423 • Dupont Molykote 4/5 • CRC 05105 Di-Electric Grease • Super Lube 91016 Silicone Dielectric Grease • Other Silicone or Lithium based insulating grease © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 10: Connection To Usb Agrowlink
Connection to USB AgrowLINK Agrowtek’s intelligent relays may be connected to the LX1 USB AgrowLINK for firmware updates, commu- nication protocol configuration, addressing and manual operation. Standard drivers automatically install in Windows for the LX1 USB AgrowLINK. GrowNET API is available for custom software applications. -
Page 11: Supported Commands
32 bit, unsigned 49001 Relay Closure Count Relay 2 49003 A request to read or write a register that is not available will return an illegal address error (0x02). © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 12: Technical Information
Warranty Period. In no event or circumstance shall Agrowtek Inc. be liable to any third party or the claimant for damages in excess of the price paid for the product, or for any loss of use, inconvenience, commercial loss, loss of time, lost profits or savings or any other incidental, consequential or special damages arising out of the use of, or inability to use, the product.
