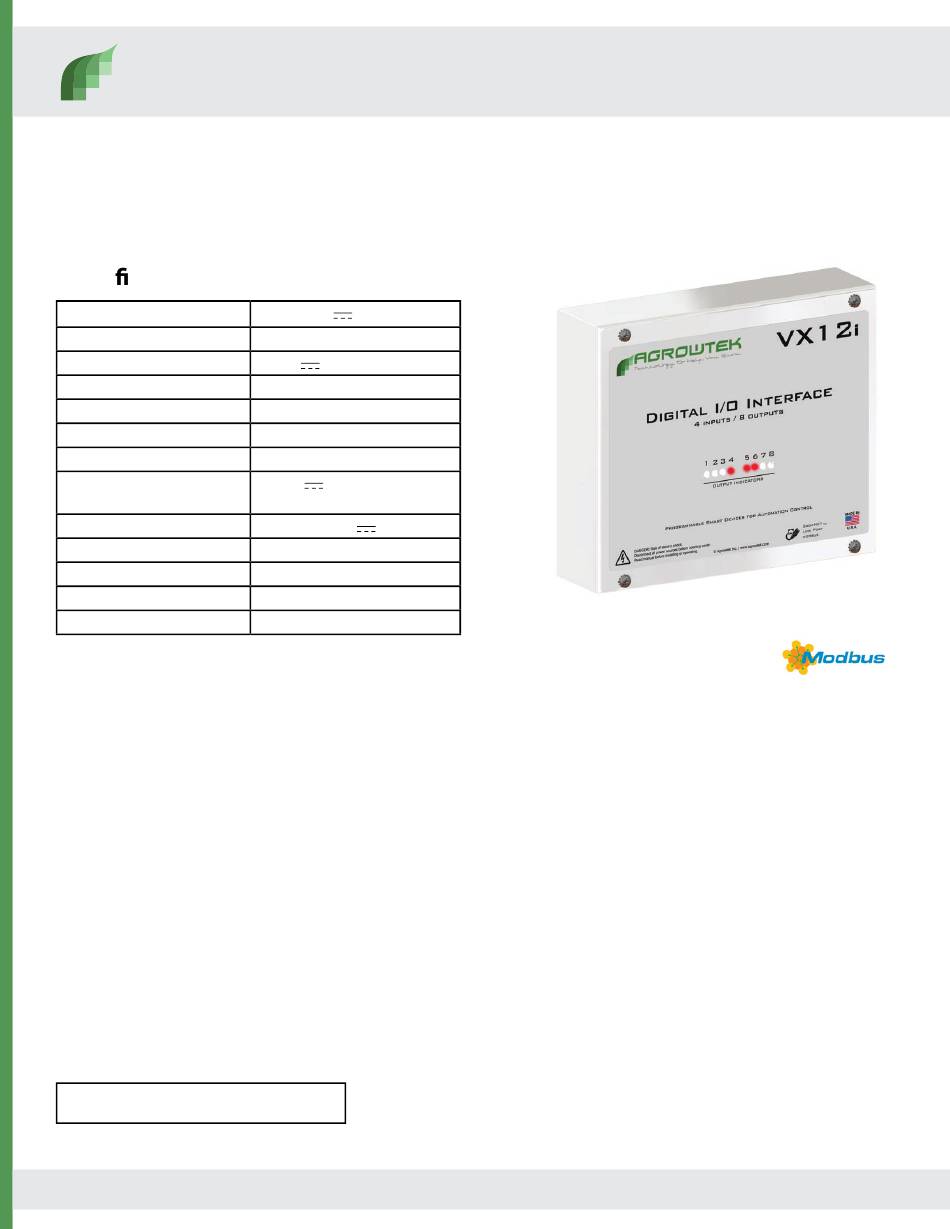

AGROWtEK
Technology to Help You Grow

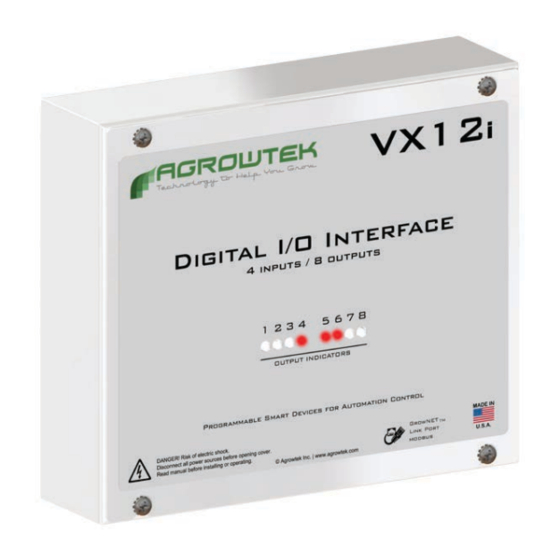

VX8i: 8 Output
VX12i: 8 Output / 4 Input
Speci cations
Input Power
Max Switching Current
Max Switching Voltage
Outputs
Output Status Indicators
PWM on Outputs
Inputs
Analog Input Type
Analog Sensor Power
Enclosure Knock-Outs
Enclosure Rating
Minimum Cycle Time
Interface
Contents
KEEP THESE INSTRUCTIONS
1
Digital Irrigation Valve Controller
1A@15Vdc
1A per point / 1A combined
24Vdc
8 Sourcing FETS
Red LEDs
6 Channels, 1kHz 10-90%
4 Analog Channels
0-5Vdc
/ 0-20mA, 12-Bit
Jumper Selectable
500mA @ 5Vdc
(2) dia. 7/8"
TYPE 12K NEMA
1 second
GrowNET™, MODBUS
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™
2
3
4
4
5
5
6
7
8
9
10
11
12
INSTRUCTION MANUAL
VXi
12
13
13
13
14
14
15
15
15
15
15
Advertisement
Table of Contents
Related Manuals for Agrowtek VXi
Summary of Contents for Agrowtek VXi
-
Page 1: Table Of Contents
Input Connections, Analog Sensors (VX12i) Warranty Connection to GrowControl™ Cultivation Controllers Connection to USB AgrowLINK KEEP THESE INSTRUCTIONS © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™ © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 2: Introduction
Introduction GrowControl VX series digital interface modules connect Agrowtek’s intelligent controllers to devices in your growing environment. VX8i and VX12i modules feature eight discrete DC FET ouputs for directly driving 15Vdc/24Vac irrigation valves and other Dc devices. VX12i models also features four analog inputs. Analog inputs allow the connec- tion of SXL optical liquid sensors and other third party analog sensors for integration. -
Page 3: Component Locations
Optional input power terminals for hard wire applications. 4. LED Light Pipes Indicators for each of the eight (8) outputs; red when on. Pipes protrude through front panel openings. © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 4: Installation Instructions
à la borne de terre du châssis marquée. Installez tous les équipements électriques et le câblage conformément aux codes électriques nationaux et locaux. Pour une utilisation en intérieur dans des endroits secs seulement (0-80% RH sans condensation.) Remplacer les pièces réparable seulement avec ceux recommandés par Agrowtek Inc. Notes: 1. -
Page 5: Power Connections
Route sensor and input wires on the left side of the unit and route output wires on the right side of the unit, keeping the sensor wiring and output wiring separated. 1. Input Wiring 2. Output Wiring © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 6: I/O Terminals
There are eight (8) transistor outputs for driving solenoids, relays, contactors, etc. with a DC voltage. Six (6) of the outputs can be con gured for PWM control between 10-90% for motor speed control, light diming, etc. © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 7: Output Connections, Irrigation Valves
Standard irrigation valves can be connected directly to the DC outputs when the unit is operated with the included 15 Vdc power supply. Up to eight valves can be connected and up to four valves can be operated simultaneously. Valve 2 Valve 1 Valve 3 © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 8: Output Connections, Other Devices
DC powered relays, contactors and SSR’s may be driven directly by the outputs. Each output is protected for yback and surge, and is capable of up to 1A continuous current (1A max combined current.) © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 9: Input Connections, Discrete Sensors (Vx12I)
(SXL Liquid Detection Sensor) (Float Switch, Dry Contact) 1. Active Sensor Rquires three wires; V+, GND and signal output. 2. Passive Sensor Requires two wires; V+ and signal output. © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 10: Input Connections, Analog Sensors (Vx12I)
Mode for 0-20mA or 4-20mA type industrial analog sensors. Note: Jumpers must be installed on the PCB for mA mode. Analog Sensor (Moisture Probe) Bare (v-) Red (v+) Black (signal) © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 11: Connection To Growcontrol™ Cultivation Controllers
Non-conductive grease is designed to prevent corrosion from moisture in electrical connectors. • Loctite LB 8423 • Dupont Molykote 4/5 • CRC 05105 Di-Electric Grease • Super Lube 91016 Silicone Dielectric Grease • Other Silicone or Lithium based insulating grease © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 12: Connection To Usb Agrowlink
• More Agrowtek’s intelligent relays may be connected to the LX1 USB AgrowLINK for rmware updates, commu- nication protocol con guration, addressing and manual operation. Standard drivers automatically install in Windows for the LX1 USB AgrowLINK. GrowNET API is available for custom software applications. -
Page 13: Serial Speed & Format
(bytes) per register in hexadecimal format. Coil registers are single bit values which control and indicate the status of a relay; 1 = on, 0 = o . © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 14: Modbus Holding Registers
Relay 3 Relay 4 Relay 5 Relay 6 Relay 7 Relay 8 A request to read or write coils/registers that are not available will return an illegal address error (0x02.) © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 15: Technical Information
Warranty Period. In no event or circumstance shall Agrowtek Inc. be liable to any third party or the claimant for damages in excess of the price paid for the product, or for any loss of use, inconvenience, commercial loss, loss of time, lost pro ts or savings or any other incidental, consequential or special damages arising out of the use of, or inability to use, the product.
