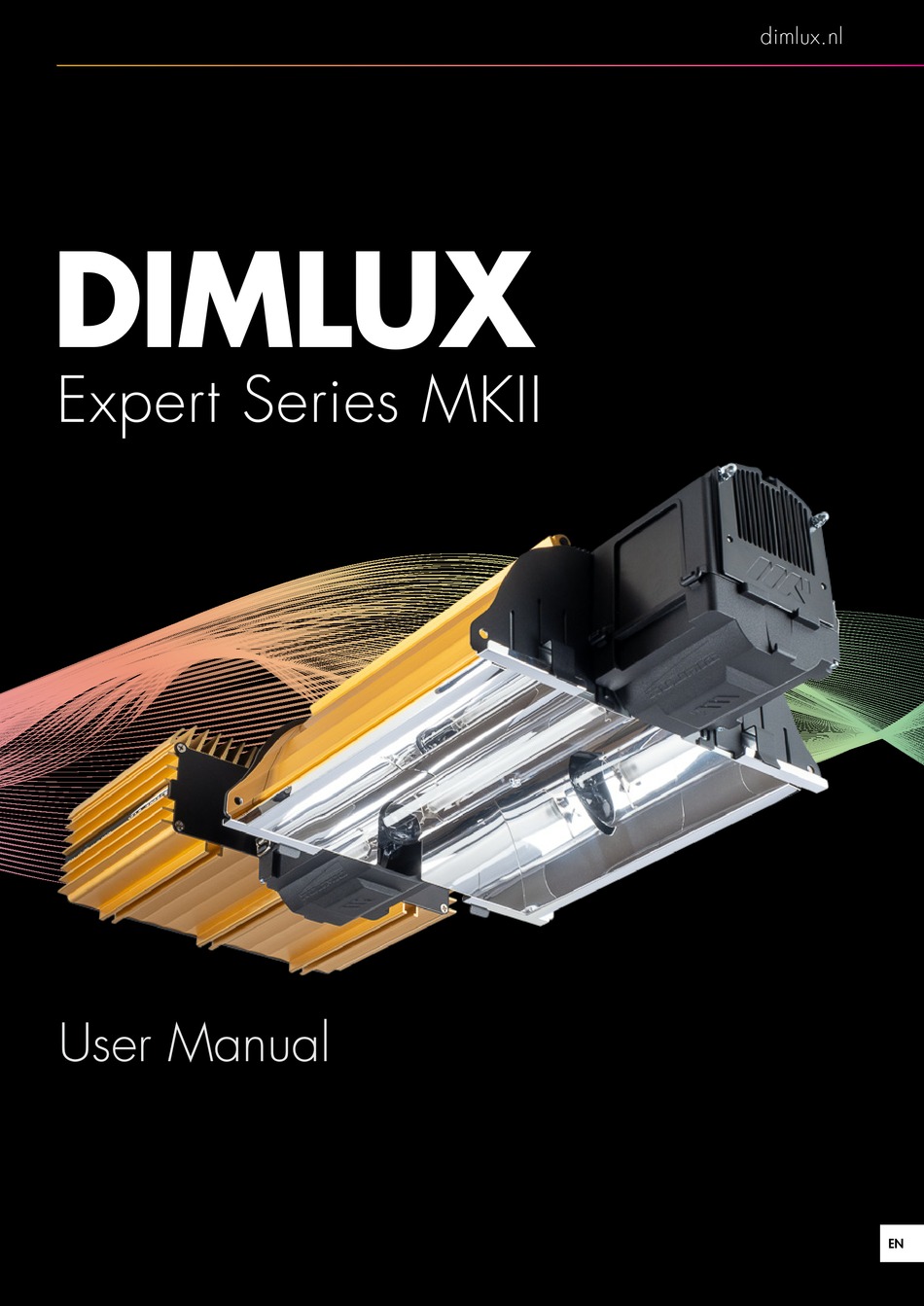

- Page 1 DIMLUX.NL DIMLUX ULTRA optics reflectors Expert Series MKII User Manual ® DimLux is a registered trademark of airSupplies...
- Page 2 DIMLUX EXPERT SERIES SPECIFICATIONS DIMLUX EXPERT SERIES MKII SPECIFICATIONS ULTRA optics reflectors 315 WATT FULL SPECTRUM 600 WATT EL UHF MKII Available in 120V, 230V, 277V Weight 4.9kg (10.80lbs) Dim levels: Soft-Off, 320W, 390W, 460W, 530W, Illumination surface: Illumination surface: 600W, 645W, 720W at 600W is min.
-
Page 3: Installation
Make sure that the contactors and timers are designed to match the load of the ballasts. Dimlux Expert 315 Watt (dual) Dimlux Expert 1000 watt EL UHF The Maxi Controller can control up to 160 Dimlux Expert fixtures at • • Dimlux Daylight 3k AGRO 1000W Philips Master Greenpower EL DE the same time. -
Page 4: General Use
INSTALLATION GENERAL USE The Maxi Controller sends a signal to the fixtures to switch them on or off. There are 2 out ports on the Maxi Controller. Each port can switch up to 80 fixtures using the oem interlink cables and splitters. Interlink cables are available in different lengths. -
Page 5: Error/Status Messages
Display indication on Dimlux Expert 315W + 630W Each Dimlux fixture has a self diagnosis system. The display on each unit shows error and status info. The Ultra Optics Hybrid 98 reflector has adjustable side-reflectors with 2 positions, a wide position and a deep position. -
Page 6: Lamp Replacement
Display: which will affect performance Meaning: Lamp on due digital ABP2 busprotocol Solution : - The Dimlux 315W CDM lamps have a bayonet connector. When installing a new lamp, ensure OFF DIGITAL Display: Meaning: Lamp off due digital ABP2 busprotocol... -
Page 7: Reflector Replacement
LAMP REPLACEMENT 1000W REFLECTOR REPLACEMENT REMOVE LAMP(S) BEFORE REPLACEMENT unlatch and unscrew both covers to expose lamp fittings Slide both fittings fully open, as shown Open reflector fully Make sure both sliders are in the fully-open position. Remove the lamp Getter Contact wire Open reflector fully... - Page 8 DIMLUX EXPERT SERIES / MKII DIMLUX EXPERT SERIES / MKII...
- Page 9 ® DimLux is a registered trademark of airSupplies Made in Holland www.dimlux.nl V-0314-2022...
