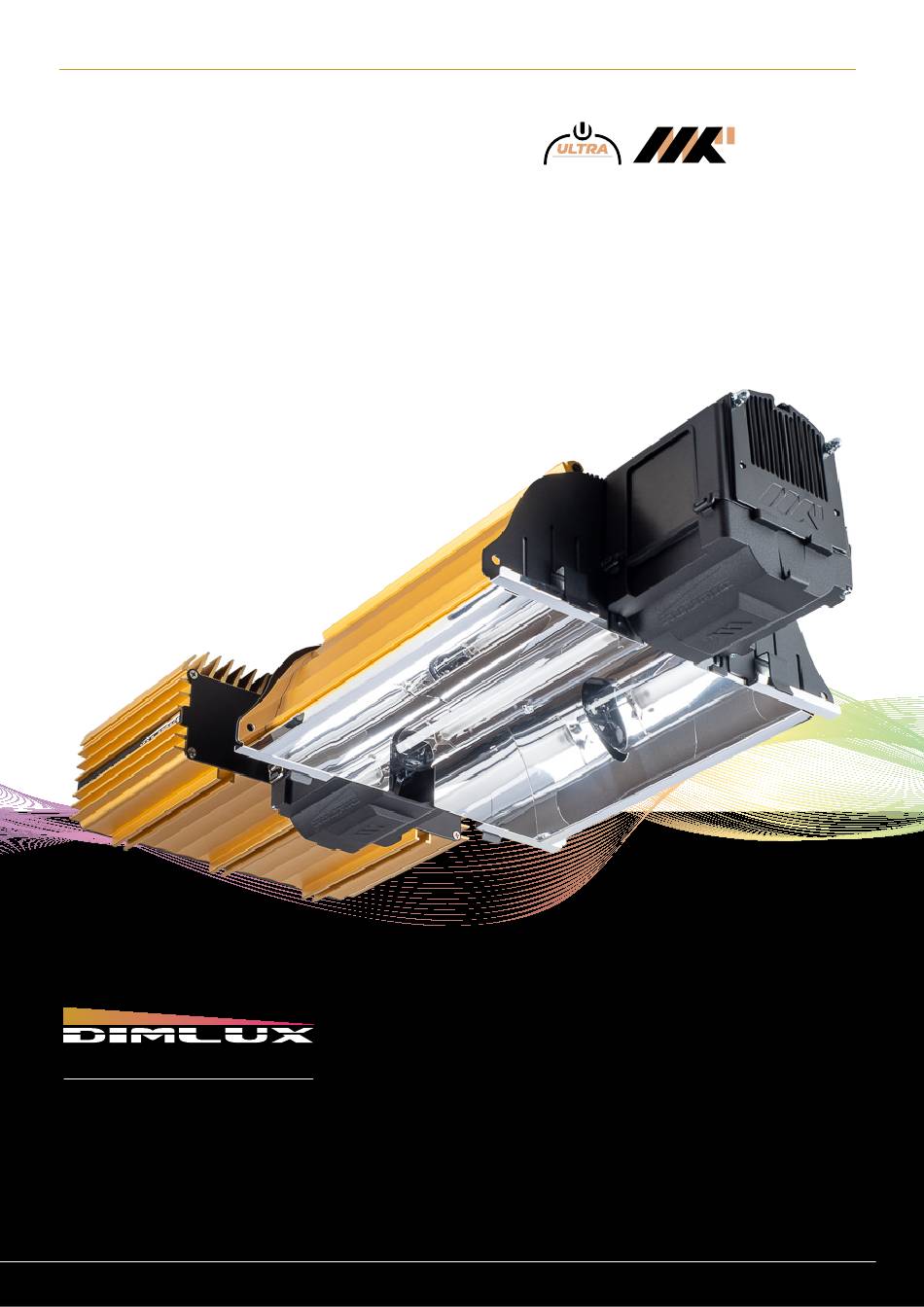

- Page 1 DIMLUX optics reflectors EXPERT SERIES/MKII USER MANUAL Engineered, Designed and Produced in Holland THE FUTURE OF GROWING JUST GOT BRIGHTER. www.dimlux.nl...
- Page 2 Illumination surface: Power consumption @315W is 331W, 1.4A @230V @380W is min 0.5m² (5.38ft²), max 1.2m² (12.91ft²) Lamp: Dimlux Xtreme Output HPS 400V 600/750W EL @600W = min. 0.78m² (8.39ft²), max. 2m² (21.52ft²) Power consumption @boost 380W is 399W, 1.7A @230V 50mm (2”) connection for active extraction...
-
Page 3: Installation
• Dimlux Xtreme Output HPS 400V 600/750W (2-79) Please ensure that only Dimlux branded 315w lamps are used in these fixtures as any other brand is not fully compatible and may fail after a short time. The Maxi Controller can control up to 160 Dimlux Expert fixtures at the same time. -
Page 4: General Use
INSTALLATION GENERAL USE The Maxi Controller sends a signal to the fixtures to switch them on or off. There are 2 out ports on the Maxi Controller. Each port can switch up to 80 fixtures using the oem interlink cables and splitters. Interlink cables are available in different lengths. -
Page 5: Error/Status Messages
Display indication on Dimlux Expert 315W + 630W Each Dimlux fixture has a self diagnosis system. The display on each unit shows error and status info. The Ultra Optics Hybrid 98 reflector has adjustable side-reflectors with 2 positions, a wide position and a deep position. -
Page 6: Lamp Replacement
Display: which will affect performance Meaning: Lamp on due digital ABP2 busprotocol Solution : - The Dimlux 315W CDM lamps have a bayonet connector. When installing a new lamp, ensure OFF DIGITAL Display: Meaning: Lamp off due digital ABP2 busprotocol... - Page 7 LAMP REPLACEMENT 1000W REFLECTOR REPLACEMENT REMOVE LAMP(S) BEFORE REPLACEMENT unlatch and unscrew both covers to expose lamp fittings Slide both fittings fully open, as shown Open reflector fully Make sure both sliders are in the fully-open position. Remove the lamp Getter Contact wire Open reflector fully...
- Page 8 NOTES NOTES...
- Page 9 DIMLUX optics reflectors EXPERT SERIES/MKII USER MANUAL Engineered, Designed & Produced in Holland ® DimLux is a registered trademark of airSupplies www.dimlux.nl Manual version 10 20 2022...
