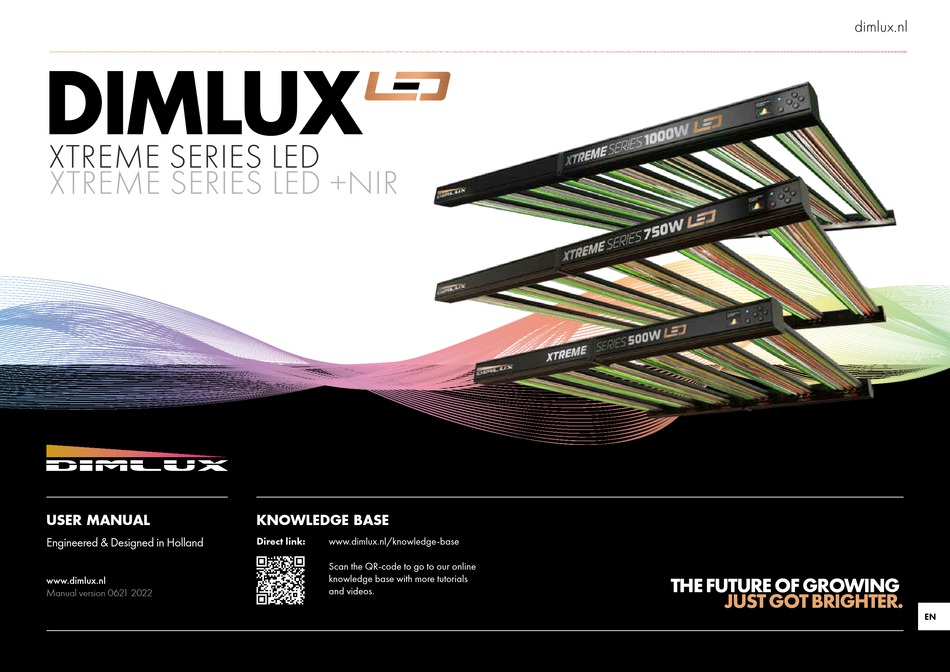

DIMLUX
XTREME SERIES LED
XTREME SERIES LED +NIR
USER MANUAL
Engineered & Designed in Holland
www.dimlux.nl
Manual version 0621 2022
KNOWLEDGE BASE
Direct link:
www.dimlux.nl/knowledge-base
Scan the QR-code to go to our online
knowledge base with more tutorials
and videos.
THE FUTURE OF GROWING
® DimLux is a registered trademark of
airSupplies
dimlux.nl
JUST GOT BRIGHTER.
EN
EN
1
Advertisement
Related Manuals for DIMLUX XTREME LED Series
Summary of Contents for DIMLUX XTREME LED Series
- Page 1 Engineered & Designed in Holland Direct link: www.dimlux.nl/knowledge-base Scan the QR-code to go to our online knowledge base with more tutorials THE FUTURE OF GROWING www.dimlux.nl and videos. Manual version 0621 2022 JUST GOT BRIGHTER. ® DimLux is a registered trademark of airSupplies...
- Page 2 PAR Photon Efficacy (400-700nm) 2.81 μmol/J @ 230-240V AC Total Photon Efficacy (350-800nm) 2.91 μmol/J @ 230-240V AC 12 Years ago, Dimlux introduced the first ever groundbreaking AC Input Power 540W @ 230-240V AC remote controlled HPS ballast in combination with the Maxi Spectrum Adjustable PhytoVegSpec ®...
- Page 3 USER MANUAL dimlux.nl DIMLUX XTREME SERIES 750W LED DIMLUX XTREME SERIES 1000W LED Adjustable PhytoVegSpec ® (+NIR) Indoor Adjustable PhytoVegSpec ® (+NIR) Indoor Spectrum Adjustable PhytoVegSpec ® Indoor Spectrum Adjustable PhytoVegSpec ® Indoor Light Output (PPF) 2276 μmol/s Light Output (PPF) 3035 μmol/s...
- Page 4 RH, nutrients and temperature are usually required. Because the LED fixture does not give off radiant heat towards the plants, it is recommended to work with the Dimlux Plant NOTICE: Do not touch the fixture besides the control buttons near the display while in •...
-
Page 5: General Care
DIGITAL PT CAMERA With this DimLux plant temperature camera, the DimLux Xtreme Series LED can indicate whether the crop is in the ideal temperature range. If it is outside this range it will be indicated on the display and by the auxiliary lighting. When connected to the Maxi Controller, the lighting dims based on the plant temperature if it gets too high due to, for example, a water shortage. -
Page 6: Available Accessories
Standard DC Cable (EU/UK/USA) (based on the continent of purchase) Digital Interlink Cable (based on the LED fixture of purchase) Dimlux Xtreme Series 500W LED (+) › 2 m / 80 in - Digital Interlink Cable Dimlux Xtreme Series 750W LED (+) ›... - Page 7 When unfolded use the tighten knob on both insides of the hinge and turn counter clockwise to fixate the Xtreme LED fixture. Always check whether hinge is tightly fixated. The Dimlux Xtreme LED Fixture is ready to be mounted.
-
Page 8: Mounting Instructions
Make sure the fixture still is on a flush, stable surface with the lenses facing downwards and follow the next steps; Take the supplied mounting cables. The Dimlux Xtreme LED fixture has 4 hang tails in each corner of the fixture. Mount the mounting cable to the hang tails 1A and 2A and the other mounting cable to 3B and 4B. - Page 9 There are 2 out ports on the Maxi Controller. Each port can switch up to 80 fixtures using the oem interlink cables and splitters. Interlink cables are available in different lengths. That is 160 Dimlux Xtreme LED fixtures in total. More information on page 15.
- Page 10 USA Plug 277 V Search for the round power sockets on the Dimlux Xtreme LED fixture. Insert the round waterproof powerplug in to the power socket on the Dimlux Xtreme LED fixture and make sure it is firmly and fully plugged in.
- Page 11 HOW TO USE OUR FIXTURE VIA THE LCD DISPLAY 5 Dec 19:43:36 For an extensive explanation of functionalities, settings, Output presets and how-to’s, you can scan the QR code or go to Dimlux.nl/knowledge-base Escape / Menu up / down / left / right...
- Page 12 DIMLUX XTREME SERIES LED Depending on your choice of LED fixture it has been equiped with an Adjustable PhytoVegSpec® Indoor or Adjustable PhytoVegSpec® +NIR Indoor spectrum. Please check your fixture for your specific configuration. LIGHT SOURCE 500W LED (+NIR) 750W LED (+NIR) 1000W LED (+NIR) PhytoVegSpec®...
- Page 13 USER MANUAL dimlux.nl XTREME SERIES 500W LED XTREME SERIES 750W LED XTREME SERIES 1000W LED Adjustable PhytoVegSpec ® (+NIR) Indoor Adjustable PhytoVegSpec ® (+NIR) Indoor Adjustable PhytoVegSpec ® (+NIR) Indoor TOP VIEW TOP VIEW TOP VIEW 32" (814mm) 43" (1094mm) 43"...
-
Page 14: Safety Recommendations And Warnings
DIMLUX XTREME SERIES LED SAFETY RECOMMENDATIONS AND WARNINGS • • Always adhere to the local rules and regulations when installing or using the LED fixture. Always disconnect the LED fixture from mains before performing any maintenance. • • Do not open or disassemble the LED fixture, it contains no serviceable parts inside. - Page 15 40 max. 40 max. 40 max. 40 Please refer to the Maxi Controller manual for specific settings information. ART 2-366 Dimlux Splitter Interlink Cable CAUTION: CAUTION: CAUTION: Regularly check the LED fixture for dust or dirt To prevent eye damage, avoid looking directly at To reduce the risk of overheating or fire, never buildup.
- Page 16 Engineered & Designed in Holland Direct link: www.dimlux.nl/knowledge-base Scan the QR-code to go to our online THE FUTURE OF GROWING knowledge base with more tutorials www.dimlux.nl and videos. Manual version 0621 2022 JUST GOT BRIGHTER. ® DimLux is a registered trademark of airSupplies...
