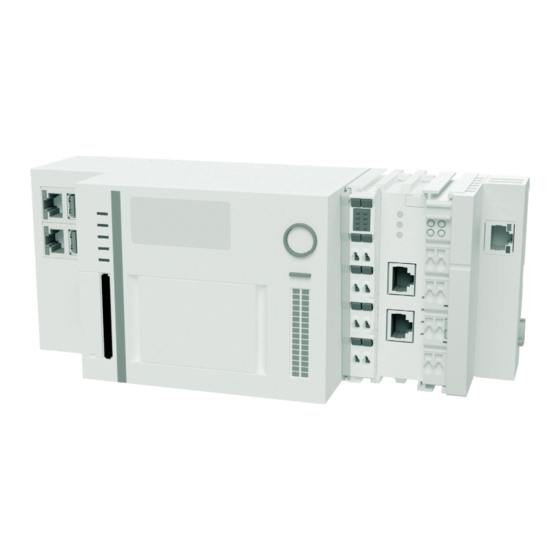

- Page 1 Operating manual iDM-MCU Master Control Unit ( MCU) iDM System with LJU communication STB_0016_iDM-MCU www.conductix.com...
- Page 2 Conductix-Wampfler Automation GmbH Handelshof 16 A 14478 Potsdam Germany Telephone: +49 331 887344-0 Fax: +49 331 887344-19 Email: info.potsdam@conductix.com Internet: www.conductix.com Translation of the original operating manual BDA_0016, 17, en_GB © 2022 Conductix-Wampfler Automation GmbH...
-
Page 3: Table Of Contents
System architecture..............18 Performance capabilities and properties........19 Product description.................. 21 Function..................21 Structure..................21 MCU modules................22 Type label..................23 MCU variants................23 Scope of delivery................. 25 Transport and storage................27 Transport..................27 iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 4 Extending the EtherCAT using CU1521 media converters..53 8.9.3.1 CU1521 media converter installation and connection data..53 8.9.3.2 Connection variants..............54 8.9.3.3 Installing CU1521 media converters........55 8.9.3.4 Connecting CU1521 media converters........56 Commissioning..................59 Commissioning procedure............60 iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
- Page 5 Replacing the MCU..............81 11.4 Repairing the MCU..............81 Disposal..................... 83 12.1 Information on disposal and environmental regulations....83 12.2 Disposal of batteries and rechargeable batteries......83 Technical Data................... 85 Customer service and addresses............89 Index......................91 iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
- Page 6 Table of contents iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 7: Information On The Description
Applicable documents The documents contained in the project documentation also apply if the device / system is part of a project-specific system plan. Their own documentation applies to connected devices and components. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 8: Copyright Protection
The popular names, trade names, production descriptions, etc. used in this description may constitute trademarks even without special designations and as such may be subject to legal requirements. is a registered trademark and a patented technology licensed by Beckhoff Automation GmbH, Germany. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 9: Warranty And Liability
All information and notes in this description have been compiled taking into account the applicable standards and regulations, the state of the art and our many years of knowledge and experience. Conductix-Wampfler Automation GmbH assumes no liability for damage and malfunctions during operation due to: Failure to comply with the description... - Page 10 Warranty and liability Limitation of liability iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 11: Safety Instructions
Only then can safe operation be guaranteed. Of course, all legally applicable general safety and accident prevention reg- ulations must be complied with. Conductix-Wampfler Automation GmbH assumes no liability for damage or accidents that were caused by non-observance of these safety notes. Warning concept This description contains notes that must be observed for your own per- sonal safety and to avoid property damage. -
Page 12: Signal Words
Warnings of the 'caution' group do not have a specific danger symbol. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. 3.1.5 Suggestions and recommendations This symbol indicates important information to help you handle the product. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 13: Intended Use
Modifications and alterations For the purpose of avoiding hazards and for ensuring optimum perform- ance, any modifications, additions, or alterations to the device require Con- ductix-Wampfler Automation GmbH's express consent. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 14: Responsibility Of The Operator
Due to their training and experience, qualified personnel are able to recog- nize risks and avoid possible hazards when dealing with this product / system. L WARNING! Injury hazard from insufficient qualification! Improper handling can cause substantial bodily harm or material damage. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 15: Special Hazards
Works on electric components may only be carried out by qualified electricians or persons instructed and supervised by a qualified elec- trician in accordance with the electro-technical regulations. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 16 Safety instructions Special hazards iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 17: The Idm System With Lju Communication
Interface between the system controller and the iDM system. SyMa System Manager Configuration and simulation software to set up, test, and visualise the iDM system in real-time on-site, remotely or offline on a PC. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 18: System Architecture
PLC not more than four PLCs on one MCU (type-dependent) Ring (redundancy) with a connection for an addi- tional PLC not more than four PLCs on one MCU (type-dependent) iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 19: Performance Capabilities And Properties
500 kbps max. in the rail bus system (SB) 31.25 kbps max. in the inductive wire bus system (iDB) depending on system used max. transfer rate depending on the vehicle control system series used iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 20 The iDM system with LJU communication Performance capabilities and properties iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 21: Product Description
A description of the used modules can be found in modules’ on page 22 An overview of the available MCU variants together with the modules Ä Chapter ‘MCU variants’ on page 23 used can be found in iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 22: Mcu Modules
MCU. This allows the connection of up to three PLCs to one MCU. The connections in these modules are switchable. EtherCAT The MCU communicates with the TCUs in the iDM system via the module EK1110 EtherCAT module. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 23: Type Label
The following figure shows a maximum configured MCU. Fig. 5: Maximum configured MCU 1 Ethernet module CX2500-0060 2 Embedded PC CX2030-0125 3 PSU module CX2100-0004 4 PROFINET module EL6631-0010 or EtherNet/IP module EL6652-0010 5 EtherCAT module EK1110 iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 24 MCUs were replaced by new designations. The following table lists the new names. Item number Old designation New designation 3230490 CWA-60068102 MCU-Set-CX2030 MCU-TCP 3233696 CWA-60068113 MCU-Set-CX2030 MCU-1PN 3233697 CWA-60068114 MCU-Set-CX2030-Red. MCU-1PN+ECR 3245004 CWA-60068119 MCU-Set-CX2030-2EL MCU-2PN 3244705 CWA-60068120 MCU-Set-CX2030-3EL MCU-3PN+ECR iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 25: Scope Of Delivery
3249468 CWA-60768125 MCU-2EIP (WNR CWA-60068125) 4 × Set MCU-2EIP+ECR 3249469 CWA-60768126 MCU-2EIP+ECR (WNR 60068126) 5 × Set MCU-3EIP 3249470 CWA-60768127 MCU-3EIP (WNR CWA-60068127) 5 × Set MCU-3EIP+ECR 3249541 CWA-60768128 MCU-3EIP+ECR (WNR CWA-60068128) 6 × iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 26 Product description Scope of delivery iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 27: Transport And Storage
Initiate a complaints process and report the incident to the supplier. If Conductix-Wampfler Automation is your direct supplier you will find our contact information in this document. Ä Chapter ‘Customer service and addresses’ on page 89 Claims for damages Claim any defect as soon as it becomes apparent. -
Page 28: Storage
Store in a dry and dust-free location. Regularly check the condition of the stored device. Keep environmental conditions as specified in the technical informa- tion. Keep the storage temperature as specified in the technical informa- tion. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 29: Mechanical Installation
Works on electric components may only be carried out by qualified electricians or persons instructed and supervised by a qualified elec- trician in accordance with the electro-technical regulations. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 30 Mechanical installation Work safety Pay attention to company and task-specific work safety regulations, as well as the country-specific legal and safety regulations applicable at the location of use. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 31: Installation Location And Position
A clearance of at least 30 mm must be present above and below the MCU. A clearance of at least 20 mm to the left and right of the MCU is recom- mended. Fig. 6: Permitted installation position of the MCU (BN) iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 32: Installation On Top-Hat Rail
Finally re-engage all the safety catches and lock the latch on the right side of the EtherCAT module. Locking the MCU (BN) ð The engaging of the safety catch is acknowledged by an audible click. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 33: Electrical Installation
Works on electric components may only be carried out by qualified electricians or persons instructed and supervised by a qualified elec- trician in accordance with the electro-technical regulations. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 34 Electrical installation Work safety Pay attention to company and task-specific work safety regulations, as well as the country-specific legal and safety regulations applicable at the location of use. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 35: Requirements For The Voltage Supply
The potential for "PE" and "GND" of connected devices that have their own power supply (e.g. a panel) must be identical to that of the system devices (no potential difference). Otherwise, the devices and peripherals could get damaged. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 36: Ul Requirements
Connection according to low-voltage directive In order to comply with the low-voltage directive, the devices must be powered by a safety extra low voltage (SELV) or protective extra low voltage (PELV) compatible power source. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 37: Connection Overview
Embedded PC Mouse 4 × USB 2.0 /5 [X100 - X103] Keyboard 500 mA max. each External data storage device /6 [X200] DVI-I Monitor Spring-loaded terminal PSU module Power supply Spring-loaded terminal EtherCAT module RJ45 iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 38: Connections On Mcus With Profinet
(only MCU with 3PN / 4PN) /14 [X2] RJ45 PROFINET slave switched /15 [X1] RJ45 External PLC 4 PROFINET module 4 (only MCU with 4PN) /16 [X2] RJ45 PROFINET slave switched EtherCAT module RJ45 iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 39: Connections On Mcus With Ethernet/Ip
(only MCU with 2EIP or 3EIP) /12 [X2] RJ45 EtherNet/IP slave switched /13 [X1] RJ45 External PLC 3 EtherNet/IP module 3 (only MCU with 3EIP) /14 [X2] RJ45 EtherNet/IP slave switched EtherCAT module RJ45 iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 40: Connection Instructions
Connect the power supply. Connect the external PLCs. MCU with TCP/IP MCU with PROFINET MCU with EtherNet/IP Connect MCU with TCUs. Connect EtherCat redundancy (only MCU with ECR). Extending the EtherCAT connection (optional). iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 41: Connecting The Power Supply
PSU module light up and the Power LED "PWR" of the Embedded PC lights up green. Cable requirements for power supply Cable type isolated single-core Conductor cross section 0.5 … 2.5 mm Stripping length 8 to 9 mm iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 42: Connecting External Plcs
Not used RD - (Receive -) RJ45 socket Not used Not used Network cable line regulation Cable type Network cable min. Cat. 5 in accordance with DIN EN 50173-1 Cable length 100 m max. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 43: Connecting External Plcs (Mcu With Profinet)
Not used RD - (Receive -) RJ45 socket Not used Not used Network cable line regulation Cable type Network cable min. Cat. 5 in accordance with DIN EN 50173-1 Cable length 100 m max. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 44: Connecting External Plcs (Mcu With Ethernet/Ip)
Not used RD - (Receive -) RJ45 socket Not used Not used Network cable line regulation Cable type Network cable min. Cat. 5 in accordance with DIN EN 50173-1 Cable length 100 m max. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 45: Connecting Tcus
Not used RD - (Receive -) RJ45 socket Not used Not used Network cable line regulation Cable type Network cable min. Cat. 5 in accordance with DIN EN 50173-1 Cable length 100 m max. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 46: Connect Ethercat Redundancy (Only Mcu With Ecr)
Not used RD - (Receive -) RJ45 socket Not used Not used Network cable line regulation Cable type Network cable min. Cat. 5 in accordance with DIN EN 50173-1 Cable length 100 m max. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 47: Extending The Ethercat Connection (Optional)
Bus couplers and media converters must be entered in the hardware configuration of the system. This requires a change in the MCU system software. The use of bus couplers and media converters must therefore be coordinated with Conductix-Wampfler Automation GmbH. Positions of configured bus couplers and media converters in the system can be found within the project-specific system layout for laying the rail or inductive data bus. -
Page 48: Extending Ethercat Using A Ek1100 Bus Coupler
Dimensions W × H × D 44 mm × 100 mm × 68 mm Protection class IP 20 Ambient temperature -25 ºC … +55 ºC Relative humidity 95 % (no condensation) Storage temperature -25 ºC … +85 ºC iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 49: Connection Variants
100 m max. 100 m max. EK1100 100 m max. 100 m max. EK1100 100 m max. 100 m max. 100 m max. EK1100 EK1100 Fig. 17: Extending EtherCAT connections using EK1100 bus couplers iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 50: Installing The Ek1100 Bus Coupler
Place the bus coupler on the top-hat rail and press lightly until the right side engages audibly. Finally, lock the latch on the left side of the bus coupler. Fig. 19: Installing the EK1100 bus coupler (BN) iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 51: Connecting The Ek1100 Bus Coupler
The bus coupler is switched to the connection between two EtherCAT EtherCAT devices in order to extend them. This requires the two RJ45 interfaces on devices the bus coupler to be used. Device 1 Device 2 (BN) Fig. 21: Connecting EtherCAT devices iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 52 Not used RD - (Receive -) RJ45 socket Not used Not used Network cable line regulation Cable type Network cable min. Cat. 5 in accordance with DIN EN 50173-1 Cable length 100 m max. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 53: Extending The Ethercat Using Cu1521 Media Converters
Dimensions W × H × D 34 mm × 98 mm × 77 mm Protection class IP 20 Ambient temperature -25 ºC … +60 ºC Relative humidity 95 % (no condensation) Storage temperature -45 ºC … +85 ºC iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 54: Connection Variants
2000 m max. 100 m max. CU1521 CU1521 100 m max. 2000 m max. 100 m max. CU1521 CU1521 Fig. 23: Extending the EtherCAT connections using CU1521 media converters 1 Network cable 2 Fibre optic cable iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 55: Installing Cu1521 Media Converters
Press the lower side of the media converter against the installation surface until it snaps into place on the top hat rail. (BN) Fig. 25: Installing the CU1521 media converters iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 56: Connecting Cu1521 Media Converters
ð When properly installed and the power supply is switched on, the "Power" LED on the media converter is lit green. Cable requirements for power supply Cable type isolated single-core Conductor cross section 0.5 … 2.5 mm Stripping length 8 to 9 mm iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 57 Connector type SC duplex connector Version SC/PC (physical contact) Cable requirements for fibre optic cable Cable type Duplex multimode Core diameter 50/125 µm or 62.5/125 µm (inside/outside) recommended: 50/125 µm Cable length Max. 2000 m iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
- Page 58 Not used RD - (Receive -) RJ45 socket Not used Not used Network cable line regulation Cable type Network cable min. Cat. 5 in accordance with DIN EN 50173-1 Cable length 100 m max. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 59: Commissioning
Personnel required for commissioning: Staff of Conductix-Wampfler Automation GmbH Sufficiently trained specialist personnel Safety in the Note the safety signs in the area around the system. -
Page 60: Commissioning Procedure
For details on how to establish a remote desktop connection, please refer to the Microsoft documentation. For default properties and default login details to establish a remote desktop connection to the MCU, see the following points. The default properties can be changed. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 61 Connect the mouse and keyboard to the USB ports [X100 - X103] of the MCU. Connect the monitor to the monitor port [X200] of the MCU. ð Plug&Play compatible devices are automatically installed and can then be used. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 62: Configuring The Interfaces
IP address under "Use the following IP address" select "Obtain an IP address automatically" to automatically obtain an IP address. ð ð The IP address properties of the SyMa interface have been changed. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 63: Configuring Tcp/Ip Interfaces For The Plcs
Highlight "Internet Protocol Version 4 (TCP/IPv4)" and press the "Properties" button. In the properties window that opens: assign a new IP address under "Use the following IP address" select "Obtain an IP address automatically" to automatically obtain an IP address. ð iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 64: Configuring Profinet Interfaces For The Plcs
Each PROFINET interface (each PROFINET module separately) must be assigned a PROFINET name. A PROFINET name is assigned using a SIE- MENS development environment or other suitable programs (e.g. the SIE- MENS "SINEC PNI" software). iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 65: Configuring Ethernet/Ip Interfaces For The Plcs
IP properties of the interface. Then press "Save" to save the properties. Note: If "0.0.0.0" is entered in the "IP address", "Subnet mask" and "Interface number" boxes, the IP address is obtained automatically. ð The EtherNet/IP interface has been configured. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 66: Transferring The System Configuration To The Mcu With Syma
Open a system-specific SyMa project. Connect "SyMa" to the MCU. ‘MCU è Connect to MCU’ Transfer the SyMa project to the MCU. ‘MCU è Send data to MCU’ ð The system configuration has been transferred to the MCU. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 67: Operation
Pay attention to the safety notes in additional applicable documentation (supplier documents). Work safety Pay attention to company and task-specific work safety regulations, as well as the country-specific legal and safety regulations applicable at the location of use. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 68: Switching On And Off The Mcu
Switching off the MCU The MCU is switched off by switching off the external power supply of the PSU module. Switching off the MCU The MCU can be hard-switched off. No data is lost. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 69: Mcu Messages
MCU started but no program / no hardware configuration loaded / missing licenses lit green: MCU in run mode / MCU started lit red: MCU in error mode Read/write CFast card: lit red: access Not used Not used iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 70: Psu Module Status Leds
ON: E-Bus connected/no data traffic. flashing: E-Bus connected/data traffic on the E-Bus. Display MCU information: during the start-up process: progress indicator during operation: indication of device type, system software version and MCU host name iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 71: Profinet Module Status Leds
Error and diagnostic indicators The table above describes the general operating indicators of the module. Detailed information on the indicators (e.g. additional error and diagnostic indicators) can be found in the manufacturer's documentation of the module. www.beckhoff.com iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 72: Ethernet/Ip Module Status Leds
Error and diagnostic indicators The table above describes the general operating indicators of the module. Detailed information on the indicators (e.g. additional error and diagnostic indicators) can be found in the manufacturer's documentation of the module. www.beckhoff.com iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 73: Ethercat Module Status Leds
Error and diagnostic indicators The table above describes the general operating indicators of the module. Detailed information on the indicators (e.g. additional error and diagnostic indicators) can be found in the manufacturer's documentation of the module. www.beckhoff.com iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 74 Operation MCU messages > EtherCAT module status LEDs iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 75: Service And Maintenance
The "MCU Software Update" program is part of the iDM software suite. Fig. 34: "MCU Software Update" program Updating the Update the MCU system software as follows: system soft- Save the project-specific system configuration (SyMa project). ware Start the "MCU Software Update" program. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 76 Confirm the dialogue to overwrite the MCU configuration. ð MCU system software will be updated, and the MCU will restart automatically. Load the saved project-specific system configuration (SyMa project) or a new SyMa project. ð The MCU is ready for operation. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 77: Backing Up The Mcu License Data
The connection to the MCU is established on the con- figured interface [X000] or [X001]. The "MCU Software Update" program is part of the iDM software suite. Fig. 35: "MCU Software Update" program iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 78: Manually Backing Up And Restoring License Data
Go to the directory ‘C: è TwinCat è 3.1 è Target: è License’ of the MCU. Copy license files from the directory to the external storage medium. ð License data is saved. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 79 Go to the directory ‘C: è TwinCat è 3.1 è Target: è License’ of the MCU. Copy license files from the external storage medium into the directory. ð License files are restored or reinstalled. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 80: Dismantling/Replacing The Mcu
Remove the battery from the MCU and dispose of it separately. Ä Chapter ‘Disposal of batteries and rechargeable batteries’ on page 83 Disassemble the module chain and dispose of the modules individ- ually. Ä Chapter ‘Information on disposal and environmental regulations’ on page 83 iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... -
Page 81: Replacing The Mcu
Conductix-Wampfler Automation GmbH directly. Ä Chapter ‘Customer service and addresses’ on page 89 Repairs Faulty devices may only be repaired by Conductix-Wampfler staff or spe- cialists trained by Conductix-Wampfler. In the event of repairs by unauthorised persons, all warranty claims against Conductix-Wampfler Automation GmbH are invalidated. - Page 82 Service and maintenance Repairing the MCU iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 83: Disposal
Used batteries and rechargeable batteries supplied by us can be returned to us for proper disposal. Send the used batteries and rechargeable batteries with sufficient postage paid in advance to: Ä Chapter ‘Customer service and addresses’ on page 89 iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 84 Disposal Disposal of batteries and rechargeable batteries iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 85: Technical Data
322 mm × 99 mm × 93 mm Clearance around the MCU above min. 30 mm below min. 30 mm left min. 20 mm right min. 20 mm Protection class IP 20 Weight approx. 2000 g max. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 86 Conductor cross section 0.5 … 2.5 mm Stripping length 8 to 9 mm Network cable line regulation Cable type Network cable min. Cat. 5 in accordance with DIN EN 50173-1 Cable length 100 m max. iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
- Page 87 Beckhoff control software TwinCAT-3 runtime (XAR) PLC program project-specific MCU hardware and software configuration BV..additionally required software iDM System Manager (SyMa) MCU software update Both programs are part of the "Software Suite". Available from www.conductix.com iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
- Page 88 Technical Data iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 89: Customer Service And Addresses
Rheinstrasse 27 + 33 | 79576 Weil am Rhein | Germany Phone: +49 7621 662-0 | Fax: +49 7621 662-144 E-mail: info.de@conductix.com | Internet: www.conductix.com For further addresses of sales and service locations, visit: www.conductix.com iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 90 Customer service and addresses iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
-
Page 91: Index
Installation position........31 MCU electrical connection data..... 86 Intended use..........13 MCU environmental conditions....86 MCU installation data......85 MCU sets............ 25 MCU interface data........ 86 Modules............22 MCU memory......... 87 MCU software........87 iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022... - Page 92 Index Transferring the SyMa project....66 Transferring the system configuration..66 Transport............ 27 Type label........... 23 Types / variants.......... 23 Warranty............9 iDM-MCU Conductix-Wampfler Automation GmbH / 08/2022...
