  • Page 1 Operating manual FB-8 Remote Control BDA_0018_FB-8 www.conductix.com...
  • Page 2 Conductix-Wampfler Automation GmbH Handelshof 16 A 14478 Potsdam Germany Telephone: +49 (0)331 887433-0 Fax: +49 (0)331 887433-19 Email: info.potsdam@conductix.com Internet: www.conductix.com Translation of the original BDA0018, 3, en_GB © Conductix-Wampfler Automation GmbH...
  • Page 3 The contents of this description have been checked for compliance with the product described. Nevertheless, it is not possible to rule out deviations, and therefore we cannot guarantee full compliance. Any necessary correc- tions are included in subsequent versions. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 4 This combination of symbol and ENVIRONMENT! signal word indicates a possible dangerous situation that can result in environmental damage if it is not avoided. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 5 If warnings refer to a specific action instruction, they are placed in front of the respective action instruction. Suggestions In this description, the suggestions and recommendations are identified by and recommen- the following symbol. dations This symbol indicates important information to help you handle the product. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 6 Liste aller Warnanzeigen die angezeigt werden können. Aktive Warnan- zeigen werden im Status markiert. Wireless Charger 3.0 Wireless Charger 3.0 Conductix-Wampfler Automation GmbH / 01/2022 Conductix-Wampfler Automation GmbH / 01/2022 1 Header (nomenclature, section name, section number) 2 Margin column (icons, indicators and key points)
  • Page 7 Information on the description Illustrations The illustrations that accompany this description have been purposely selected. They are provided for basic understanding and may differ from the actual design. No claims shall be accepted for possible discrepancies. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 8 Information on the description FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 9: Table Of Contents

    Handling..................27 5.2.1 Start screen................. 27 5.2.2 Vehicle number crossed out............28 5.2.3 Underlined menu item..............28 5.2.4 Menu item in brackets..............29 5.2.5 Cursor..................29 5.2.6 Save.................... 30 5.2.7 Context-dependent function keys..........30 FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 10 BT via infrared................56 Appending to WL................. 56 Deleting a WL................57 Vehicle selection via infrared............57 Menu - Read/Write..................58 Mirror display................59 Display mode................59 Vehicle number................61 No error display................62 Vehicle information..............63 FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 11 Connection with the FB Configurator............. 76 Maintenance....................77 Disposal..................... 78 13.1 Disposal of batteries and rechargeable batteries......78 Technical Data................... 79 Faults......................81 Customer service and addresses............85 Glossary....................87 Index......................89 Appendix....................91 FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 12: General Information

    Applicable documents The documents contained in the project documentation also apply if the device / system is part of a project-specific system plan. Their own documentation applies to connected devices and components. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 13: Warranty

    Our service team is available to provide technical information. You can find information about your relevant contact by phone, fax, e-mail or online. Service forms Service forms are available for download under www.conductix.com (www.ljuonline.de). Please send completed service forms to service.potsdam@conductix.com. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 14: Safety Instructions

    Intended use The FB-8 remote control is used exclusively to control LJU controls. Intended use assumes compliance with all information in this manual. Any use beyond the intended use or other ways of use are considered misuse and will void the warranty.

  • Page 15: Safety Devices

    Before starting work, check whether the safety devices are fully func- tional and connected properly to the controller. Report any faulty safety devices immediately. Bring vehicles with defective safety equipment to a standstill immedi- ately. Get safety devices repaired immediately. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 16: Transport And Storage

    Initiate a complaints process and report the incident to the supplier. If Conductix-Wampfler Automation is your direct supplier you will find our contact information in this document. Ä Chapter ‘Customer service and addresses’ on page 85 Claims for damages Claim any defect as soon as it becomes apparent.

  • Page 17: Product Description

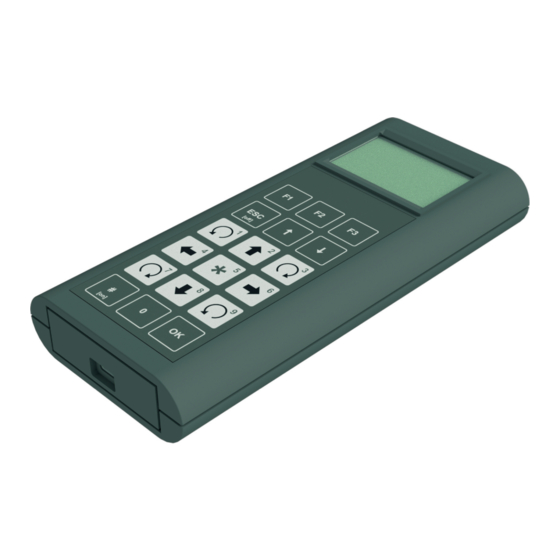

    Structure Product description Product The FB-8 remote control is used for manual remote control of LJU vehicle description control systems. Both the remote control and the vehicle control systems are equipped with the corresponding LJU software and have an LJU infrared and/or Bluetooth interface.

  • Page 18: Inserting The Battery

    Ä Chapter ‘Operating the remote control with a rechargeable battery’ tery. on page 20 When using a rechargeable battery, it can be charged by connecting a USB cable from the USB-C interface to the computer or my means of a charger. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 19 Fig. 3: Battery compartment with charging switch (right figure: Switch position in battery operation) Left switch position - Charging current flows / rechargeable battery is being charged Right switch posi- - Charging current is interrupted / switch position for tion non-rechargeable batteries FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 20: Operating The Remote Control With A Rechargeable Battery

    The charging status is displayed incorrectly Li-Ion 7.2 ... 7.6 Factory setting Only with overload pro- tection. Prohibited bat- Tech- Cells Nominal Capacity Remark tery type nology voltage NiMH 7.2 V Overheating during charging FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 21: Switching On And Off

    [Configure] > [Energy] > [ESC holding time] DataCom stick The DataCom stick (Fig. 4) resembles a USB stick and is located on the LJU vehicle control systems (Fig. 5) in transport systems. Fig. 4: DCS-8 FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 22: Vehicle Address Function

    Vehicle address function The vehicle number is stored in the DCS-8 When the control system is replaced, the DCS-8 is connected to the new control system. The stored vehicle number is transferred to the new controller. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 23: Backup/Storage Function

    All Bluetooth identi- fiers are stored there as a whitelist. These whitelists are then imported in each of the other configurators. After importing the whitelists, the DCS and remote controls are updated with this data. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 24 (28 digits) Structure of the The DataCom stick has a 16-byte long UUID. DCS UUID The first 10 bytes are the Basic UUID. All DataCom sticks of the project are based on a Basic UUID. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 25 Basic UUID DataCom stick identifier 10 byte 6 byte B2067B80EA7511E4A1BE Hexadecimal freely Vehicle select- number able (20*) (1*) (3*) (1*) (3*) * digits In the remote control, the DCS UUIDs are stored in a whitelist. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 26: Function Description

    The colour-coded keys on a white background make the handling of the production technology areas clearly visible. These keys are mainly intended for controlling the movement of vehicles. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 27: Handling

    5.2.1 Start screen The LJU logo appears on the display after switching on the remote control and during the booting process. The main menu then appears; the remote control is now ready for operation. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 28: Vehicle Number Crossed Out

    Fig. 9: BT mode set, there is no connection to a vehicle control system 1 Dialogue field: no vehicle connected 5.2.3 Underlined menu item An underlined list entry shows the selection that was last saved. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 29: Menu Item In Brackets

    Alternatively, you can directly press the desired menu digit on the keypad for one-digit menu items. Fig. 12: Cursor selection on [vehicle number] FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 30: Save

    - Confirms the dialogue/process. - Aborts the dialogue/process. - Goes to the next page. - Goes to the previous page. - Updates an entry. The following illustrations show the function key assignments using display examples: FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 31 Fig. 13: Start screen display [F1] = Configuration menu [F2] = Vehicle selection menu [F3] = Read/Write menu Fig. 14: Communication method selection [F3] = Confirm the dialogue Fig. 15: Information dialogue [F3] = Cancel the dialogue FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 32 [F1] = Clear the dialogue [F3] = Confirm the dialogue Fig. 18: Configuration menu – switch-off time [F1] = Move cursor to the left [F2] = Move cursor to the right [F3] = Confirm the dialogue FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 33: Main Menu

    The middle area shows you the commands currently sent to the DataCom stick (Fig. 21/2). Fig. 21: Start menu with command "Fast movement to the right" 1 Connected vehicle 2 Process 3 Star = command for fast process FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 34 Lift ® slowly  ® fast  Lower ® slowly  ® fast  Movement types are controlled depending on the project (e.g. pushing, twisting, etc.) ® slow movement  ® fast movement  FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 35: Menu Structure

    4 - No error display 5 - Vehicle information 6 - Vehicle type 7 - Forced manual mode 8 - Command code only with "LJU" user right only with "Maintenance" or "LJU" user rights FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 36: Menu - Configuration

    1 - Language 2 - Communication 3 - Energy 4 - Service 5 - Debug only with "LJU" user right Settings Configuration menu Infrared Bluetooth according to connected discon- communication nected method Language Communication Energy FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 37 Contrast Lighting duration Switch-off time Energy saving mode High power ON hold time ESC hold time Bootloader info Firmware info Hardware info Bluetooth info Manufacturer info Keypad test Factory settings User administration Password entry FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 38: Language

    Select the desired communication method in the [Communication] menu. communication method Fig. 22: FB-8 display - Configuration menu - Communication menu item In each display mode, the current communication method is displayed in the upper left area. IR - Infrared with 9,600 bps = slow infrared...

  • Page 39: Energy

    3 - ESC hold time 4 - Battery type only with "Maintenance" or "LJU" user rights 6.3.1 Energy profile Menu structure Energy profile 1 - Manual 2 - Energy saving mode 3 - High power FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 40 Bluetooth receiving sensitivity -95 dBm -95 dBm Bluetooth search duration 10 s 10 s Bluetooth search interval 60 s 10 s Bluetooth connection time-out 60 s 10 s Bluetooth automatic disconnection never 30 min FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 41: Manual Energy Profile

    - -23 dBm, -6 dBm, 0 dBm, 4 dBm (At -23 dBm, the transmission distance is reduced to approx. 50 cm.) RX Sensi- - -89 dBm, -95 dBm tivity (The lower the value, the higher the receiving sensitivity.) FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 42 50 %, the entire display turns brighter. If the value is greater than 50 %, the display turns darker. At 100%, the display turns black, i.e. there is no longer any contrast between the font and background colours. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 43 If the switch-off time is greater than 0 and no key is pressed, the remote control switches off automatically after the timer has elapsed. - The remote control does not switch off. 3600 s - The remote control switches off after 1 h. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 44: On Hold Time

    500 ms - The ESC key must be kept pressed for 0.5 s to switch off. 3000 ms - The ESC key must be kept pressed for 3 s to switch off. Fig. 30: 'ESC hold time' menu item FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 45: Battery Type

    This message appears at a charge level of £5%. Connect the charging cable or replace the battery promptly. The message disappears automati- cally as soon as the charge reaches 10%. Fig. 31: Battery voltage too low FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 46: Service

    Date - Compilation date Time: - Compilation time 6.4.2 Firmware info The following information is displayed: - Version number Date - Compilation date Time - Compilation time Updating the firmware Only update the firmware after consulting LJU. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 47: Hardware Info

    When a key is pressed, the assignment is displayed under key = (#). To exit the test: Press and hold down any key except [ESC]. ESC key Hold this button pressed for longer to switch off the remote control. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 48: Factory Settings

    Check battery type in the settings Do not deep discharge rechargeable batteries Factory set- Setting Value range tings System language German Communication mode Bluetooth Switch-off time Illumination duration 100% Brightness Contrast FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 49: User Administration

    Switching off the remote control does not speed up the timer either. Password for "Maintenance" The password for "Maintenance" user mode can be requested from LJU. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 50 Auto Disconnection Brightness Contrast Lighting duration Switch-off time Energy saving mode High power ON hold time Battery type ESC hold time Bootloader info Firmware info Hardware info Bluetooth info Manufacturer info Keypad test Factory settings FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 51 Vehicle number (infrared) Read/Write menu User Servicing Read/Write Mirror display Display mode Read Write Vehicle number Read Write No error display Read Write Vehicle information Vehicle type Read Write Unrestrained manual mode Read Write FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 52: Debug

    Diagnostic tool which may be used exclusively by LJU personnel. This action is reserved for [LJU] users only. NOTICE! Unauthorised access to software Unauthorised access or modification to the device software can lead to a total failure of the device. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 53: Menu - Vehicle Selection

    Selection (Bluetooth) Search List Disconnect Vehicle number (infrared) To access the [Vehicle selection] menu, press the [F3] key under symbol in the main menu. Fig. 34: Vehicle selection menu, when no vehicle is connected FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 54: Select

    If no vehicle is connected or if you do not know the vehicle number, you can display all Bluetooth-enabled vehicles entered in the whitelist within your reception range via the [Search] menu item. Use the arrow keys to select the vehicle and confirm your selection with FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 55: List

    Fig. 40: List menu item If a vehicle is already connected, an error message appears indicating that a connection already exists. Disconnect The [Disconnect] menu item enables you to disconnect a connected vehicle. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 56: Bt Via Infrared

    All DataCom sticks found via the search function are included in the white- list of the remote control. Manual changes to the whitelist of the remote control must be synchron- ised with the project settings in the FB Configurator. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 57: Deleting A Wl

    Make sure there are no people in the danger zone before using the remote control, moving the vehicle or lifting and lowering loads. Operate the vehicle remotely only when it is in the line of sight. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 58: Menu - Read/Write

    "Maintenance" or "LJU" user rights only with "LJU" user right Settings Read/Write menu Infrared Bluetooth according to connected discon- communication nected method Read/Write Mirror display Display mode Read Write Vehicle number Read Write No error display Read Write FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 59: Mirror Display

    In the [Mirror display] menu item, you can show the display of the vehicle control system connected to the remote control in the display of the remote control. Fig. 42: FB-8 - Display screenshot - Mirror display menu item Display mode The display mode refers to the numbering of the respective status informa- tion shown in the display.
  • Page 60 Fig. 45: Display mode menu – Write menu item Fig. 46: Write menu item, confirm change Information on display modes You can find further information on display modes in the documentation of the vehicle control system. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 61: Vehicle Number

    Fig. 47: Vehicle number menu item Fig. 48: Vehicle number menu – Read menu item Fig. 49: Vehicle number menu – Write menu item FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 62: No Error Display

    . To reconfirm, a prompt will appear asking you whether you really want to write this value. Press to apply the setting or to cancel the operation. Fig. 53: No error display menu – Write menu item FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 63: Vehicle Information

    The menu item [Vehicle type] shows in the menu sub-item [Read] which vehicle type is stored in the control. It can be changed in the [Write] menu sub-item. This action is reserved for [Servicing] and [LJU] users only. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 64: Unrestrained Manual Mode

    This process is necessary to resolve critical situations that have occurred between various vehicle control systems. This action is reserved for [Servicing] and [LJU] users only. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 65: Examples Of Use

    If necessary, save the change in the non-volatile memory to ensure that communication via infrared stays even after switching the system off and on again. Return to the Home screen and press to enter the Vehicle selection menu. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 66: Communication Via Bluetooth

    ð Communication via Bluetooth is selected. Connecting to the DataCom Stick via Bluetooth A direct connection between remote control and vehicle control is not pos- sible via Bluetooth. Therefore, communication passes through the interface of the DataCom stick. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 67 Home screen to enter the Vehicle Selection menu. The [Disconnect] menu item cannot be selected in the display because no DataCom stick is connected yet. Fig. 56: No DataCom stick connected yet FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 68 Fig. 59: Enter vehicle number You can use to determine the position of the digit to be entered.  ] and ¯ ] and Select a DataCom stick with the arrow keys confirm your selection with FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 69: Change Vehicle (Datacom Stick)

    If you know the specific vehicle number, you can select it directly via the [Selection] menu item. [List] In the [List] menu item, show all DataCom sticks stored in the whitelist in order to select the desired DataCom stick. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 70 An error message appears because the remote control is already con- nected to another vehicle control system. Besides the message, you are also asked whether you want to disconnect the connection. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 71 Examples of use Change vehicle (DataCom stick) Press the function key on to disconnect the existing connec- tion. ð The new connection is established. You are taken back to the [Vehicle selection] menu. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 72: Moving A Vehicle

    If necessary, disengage the drive. If necessary, disconnect the vehicle from voltage. Keep clear of moving system parts. Do not reach into the running machine. Wear tight-fitting work clothes. Pay attention to optical and acoustic warning equipment. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 73: Manual Operation - Manual Mode

    The vehicle control system moves the vehicle in spite of any faults. L WARNING! Moving the vehicle manually The vehicle control system moves the vehicle in manual mode in spite of any faults. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 74 Lift ® slowly  ® fast  Lower ® slowly  ® fast  Movement types are controlled depending on the project (e.g. pushing, twisting, etc.) ® slow movement  ® fast movement  FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 75: Automatic Mode

    In order to reintegrate the vehicle control system into the automatic sequences, manual mode must be deactivated. Press the [ESC] key. [on] ð A command is sent to the vehicle control system, which returns it to the automatic sequences of the central computer. FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 76: Connection With The Fb Configurator

    Connection with the FB Configurator Connection with the FB Configurator The FB Configurator program is used to synchronise the FB-8 remote con- trol and the DCS-8 DataCom-Stick of the vehicle control system. The remote control can be configured on the PC. Here you can select the communication method or configure display settings.

  • Page 77: Maintenance

    Check for loose connections Check cable insulation Display and infra-red reception range Remove soiling Cleaning the Materials: Dry microfibre cloths remote control Alcohol-free cleaning cloths Switch off remote control Remove rechargeable battery Remove soiling FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 78: Disposal

    Used batteries and rechargeable batteries supplied by us can be returned to us for proper disposal. Send the used batteries and rechargeable batteries with sufficient postage paid in advance to: Ä Chapter ‘Customer service and addresses’ on page 85 FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 79: Technical Data

    Signal transmission functional principle Infrared radia- tion Slow infrared transmission rate 9600 bit/s Fast infrared transmission rate 62500 bit/s Wavelength 850 nm Radiant power 240 mW Minimum range Typical range 10 m Radiation angle ±20 ° FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 80 Bit-coded infrared single pulses with a pulse width of 1 µs at 62500 bit/s Bluetooth data Data Value Unit transmission Signal transmission functional principle Radio transmis- sion Maximum transmission range 30 m Typical transmission range (industrial envi- 15-20 m ronment) FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 81: Faults

    Use suitable rechargeable is not recommended battery type Incorrect rechargeable battery Check/change settings type specified in energy set- tings. Rechargeable battery gets Rechargeable battery capacity Replace rechargeable bat- very warm when charging no longer sufficient tery FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 82 Remove soiling lished the remote control Dirt in front of infrared unit on Remove soiling the receiver Infrared function deactivated Activate infrared function Transmission disrupted Establish optical contact Decrease distance Check angle of incidence FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 83 DataCom-Stick (DCS) not DCS not listed in the whitelist of Check whitelist with FB found the remote control Configurator DCS not within range Change distance Receiving sensitivity (RX) too Increase receiving sensi- tivity FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 84 Faults FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 85: Customer Service And Addresses

    Rheinstrasse 27 + 33 | 79576 Weil am Rhein | Germany Phone: +49 7621 662-0 | Fax: +49 7621 662-144 E-mail: info.de@conductix.com | Internet: www.conductix.com For further addresses of sales and service locations, visit: www.conductix.com FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 86 Customer service and addresses FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 87: 17 Glossary

    All data for configuration and communication between the FB and vehicle control system are stored together UUID Short for "Universally Unique Identifier": a unique identifier used for the communication between the FB-8 remote control and DCS-8 DataCom stick. Whitelist List of all DataCom sticks saved in FB-8.
  • Page 88 Glossary FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 89: Index

    FB-8............81 Function keys..........30 ID..............24 Infrared............17 Intended use..........14 Keypad............26 Maintenance..........77 Memory Non-volatile..........30 Volatile........... 30 Personnel........... 14 Qualification..........14 Safety notes..........14 Scope of delivery........12 Storage............16 FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 90 Index FB-8 Conductix-Wampfler Automation GmbH / 03/2021...

  • Page 91: Appendix

    Appendix Appendix FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 92 Device drawing Device drawing FB-8 Conductix-Wampfler Automation GmbH / 03/2021...
  • Page 93 Edited by Approved by Schleussner Type of document Status of document LJU Automatisierungstechnik GmbH Device drawing approved Am Schlahn 1 Titel, additional titel Works number 14476 Potsdam Remote control 60068013 Germany Rev. Date of issue lang. Page www.ljuonline.de FB-8 03.07.2018...
