Steering Return Hose Kit
Multi-Pro
Model No. 121-5132
Installation

Loose Parts

Use the chart below to verify that all parts have been shipped.
Description
Hose
Tee fitting
Hydraulic fitting cap
R-Clamp

WARNING

Hydraulic fluid escaping under pressure can
penetrate skin and cause injury.
• Make sure that all hydraulic fluid hoses and
lines are in good condition and that all hydraulic
connections and fittings are tight before
applying pressure to the hydraulic system.
• Keep your body and hands away from pin
hole leaks or nozzles that eject high pressure
hydraulic fluid.
• Use cardboard or paper to find hydraulic leaks.
• Safely relieve all pressure in the hydraulic system
before performing any work on the hydraulic
system.
• Get immediate medical help if fluid is injected
into skin.

Installing the Hose

Note: Have a tray ready to catch any hydraulic fluid coming
from the hoses as they are being removed.
1. Turn off the machine and remove the key.
2. Remove the 4 bolts from the engine shield and lower
the shield (Figure 1).
© 2013—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
5800 Turf Sprayer
Qty.
1
1
1
2
Register at www.Toro.com.
Installing the hose.
1. Engine shield
3. Remove the hydraulic hose from the tube assembly
and place the hydraulic fitting cap on the open valve
Original Instructions (EN)
All Rights Reserved *3375-521* A
Printed in the USA
Form No. 3375-521 Rev A
Installation Instructions
Use
1
g023679

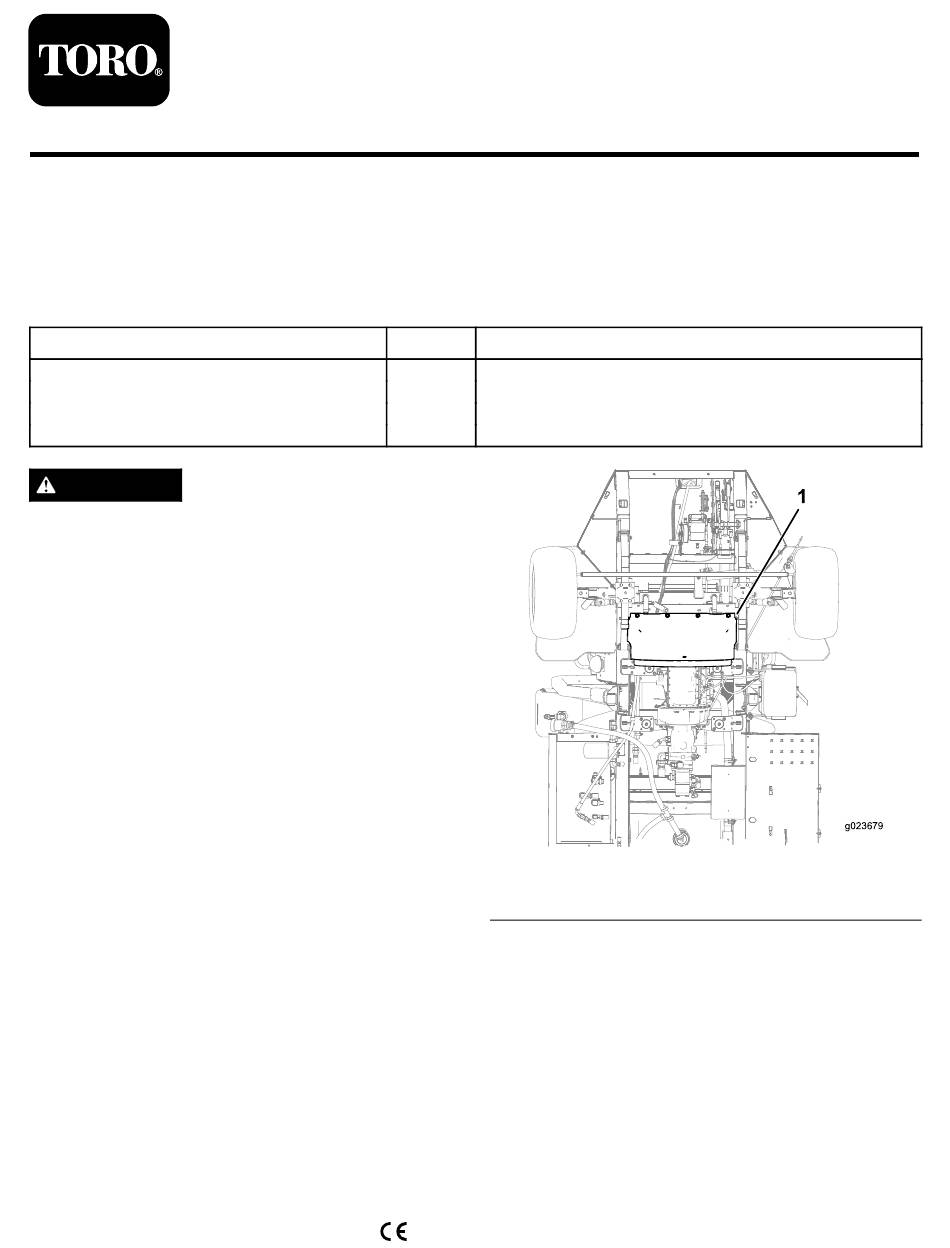

Figure 1
