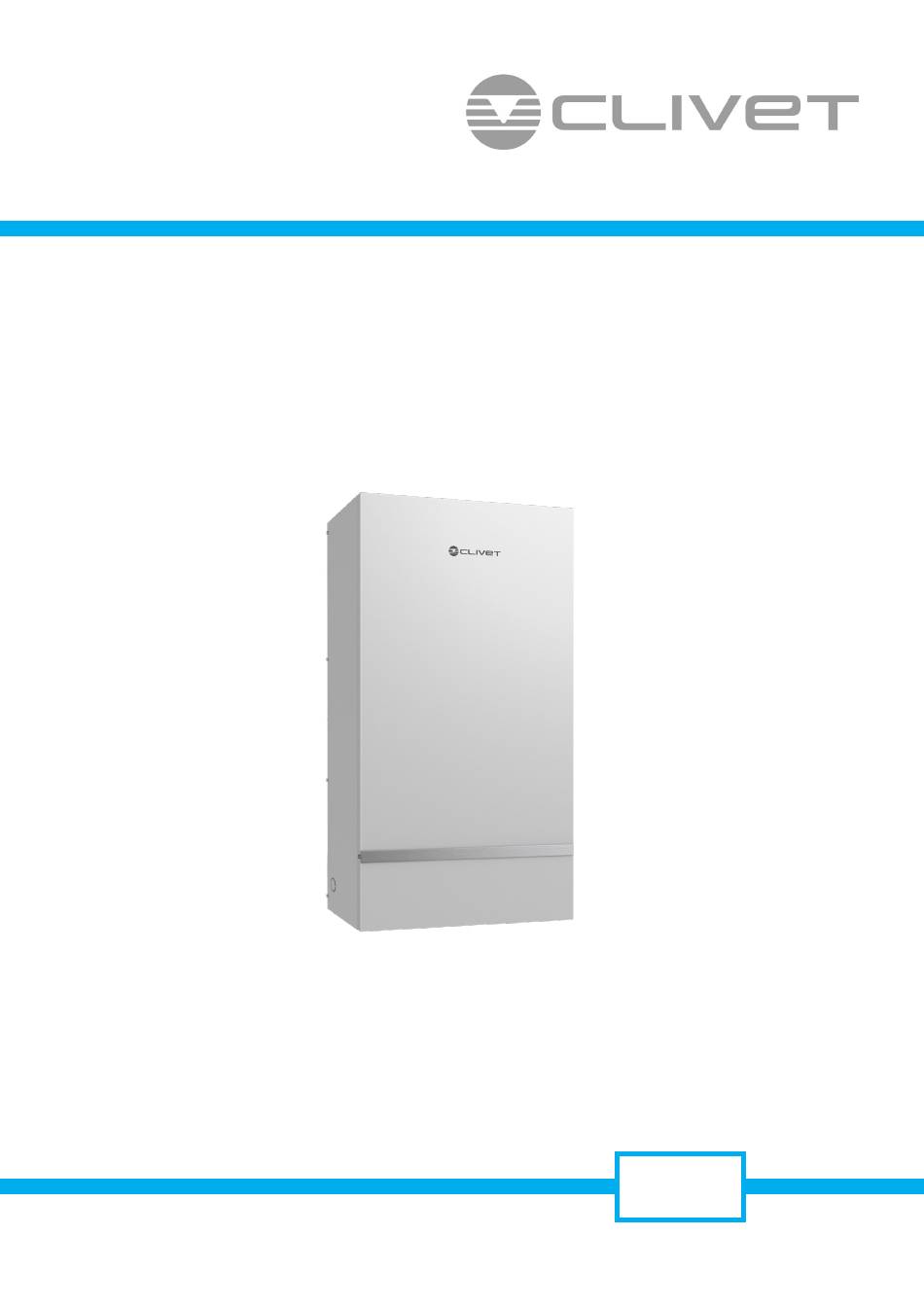

TECHNICAL MANUAL
MULTISplit
HYDRO-M 80M
R32
TM21N041GB-00
01/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MULTISplit HYDRO-M 80M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CLIVET MULTISplit HYDRO-M 80M

Summary of Contents for CLIVET MULTISplit HYDRO-M 80M

  • Page 1 TECHNICAL MANUAL MULTISplit HYDRO-M 80M TM21N041GB-00 01/2022...

  • Page 2: Table Of Contents

    Table of Contents Page 1. General Information ..................4 System Schematic Unit Parts Model Reference External Appearance Indoor unit combination Nomenclature 2. Engineering Data ..................22 General Specifications Dimensional Drawings Part Names Schematic Diagram Electrical Wiring Diagrams Indoor Printed Circuit Board Diagram Electrical Characteristics 3.
  • Page 3 Table of Contents Page Refrigerant Pipe Installation Vacuum Drying and Leakage Checking Water Pipework Additional Refrigerant Charge Engineering of Insulation Engineering of Electrical Wiring Selection of Water Tank Test Operation Error Code...

  • Page 4: General Information

    General Information Contents System Schematic ....................5 Unit Parts ......................16 Model Reference ....................18 External Appearance ...................18 Indoor unit combination ..................19 Nomenclature.......................20...

  • Page 5: System Schematic

    1. System Schematic With innovation technology, Midea combine Air to Air and Air to Water in the same multi system, providing an all-in-one solution for demands of space cooling, space heating and domestic hot water. Scenario 1:Use of multi-split air conditioners Indoor unit: cooling (dehumidifying), heating, fresh air, hydraulic module: domestic hot water, space heating There is a mode conflict among cooling (dehumidifying), heating and the space heating.
  • Page 6 Scenario 2:Only used for space heating The outlet water temperature of the hydraulic module is set by using the user controller, and the outlet water temperature is set in accordance with different loads (floor heating or heating radiator) or room temperature. When the outlet water temperature reaches the set temperature, the hot water generator will shut down.
  • Page 7 Scenario 3: Space heating and domestic hot water The domestic hot water is supplied by the domestic hot water storage tank connected to the hot water generator, the hot water tank is connected by electric 3-way valve and feedwater line, the main control feed tank has reserved temperature sensor and immersion electric heater interfaces (achieving disinfection and EA heating functions), there is no water tank by default in the system, and they needs to be started by dialing on the main board.
  • Page 8 Scenario 4: Space heating, space cooling (reserved) and domestic hot water A floor heating loop and a fan coil unit are used for space heating, and a fan coil unit is used for space cooling. The domestic hot water is supplied by the water tank connected to the hydraulic module. The start and stop of air conditioning and heating and domestic hot water are controlled by the outlet water temperature of the hydraulic module and the water tank temperature respectively.
  • Page 9 Scenario 5: Space heating and domestic hot water + return water function A return water function is provided for the domestic hot water. The start and stop of the return water pump are controlled by the return water temperature, so there is no waiting for the use of hot water. The main board has return water pump and return water temperature sensor interfaces, which are started by dialing on the main board (the return water pump and the mixing water pump share an interface, the mixing water pump is defaulted in the system).
  • Page 10 Scenario 6: Only used for space heating (suitable for multiple terminals, water temperature adjustment) During heating, the user can connect multiple terminals simultaneously, e.g. floor heating system and heating radiators (or fan coils). However, as the water temperature required for the heating radiator is higher than that required for the floor heating, a mixing water valve and a mixing water pump are provided for the floor heating to adjust the water temperature of the floor heating.
  • Page 11 Scenario 7: Space heating (with auxiliary heating source) and domestic hot water 1. EA heater for pipeline: A pipeline electric heater is installed on the space heating mains, with its start and stop controlled by the main temperature senor, and the main board has reserved auxiliary heating source and heating water main temperature sensor interfaces.
  • Page 12 Scenario 8: Space heating (with auxiliary heating source) and domestic hot water 2. Other auxiliary heating sources: An auxiliary heating source is installed on the space heating mains, with its start and stop controlled by the main temperature senor, and the main board has reserved auxiliary heating source and heating water main temperature sensor interfaces.
  • Page 13 Scenario 9: External signal interface The hydraulic module has a reserved external on/off signal interface. When it is on, the hydraulic module will operate according to the wired controller setting; when it is off, the hydraulic module will shut down. 1 Outdoor unit 6 wired controller 2 Hydraulic module...
  • Page 14 1.10 Scenario 10: Schematic Diagram 1 of multi-split air conditioning system 1 Outdoor unit 16 Drain outlet 2 Hydraulic module 17 Electric 2-way valve 3 Heat exchanger 19 Return water pump 4 Electric heating tank 20 Return water temperature sensor 5 Built-in circulating water pump 21 Mixing water pump 6 wired controller...
  • Page 15 1.11 Scenario 10:Schematic diagram 2 of multi-split air conditioning system 1 Outdoor unit 17 Electric 2-way valve 2 Hydraulic module 19 Return water pump 3 Heat exchanger 20 Return water temperature sensor 4 Electric heating tank 21 Mixing water pump 5 Built-in circulating water pump 22 Mixing water valve 6 wired controller...

  • Page 16: Unit Parts

    2. Unit Parts NOTE: The installation must be performed in accordance with the requirement of local and national standards. The installation may be slightly diferent in diferent areas. The application examples given below are for illustration purposes only. Auxiliary heat source Pipeline auxiliary electric heating ...
  • Page 17 1. Outdoor unit 15. Electric three-way valve 2. Hydraulic module Used for switching between heating and domestic hot water mode, working with domestic hot water tank. 3. Domestic hot water storage tank 16. Filter 4. Radiator Water supply system,flter impurities. 5.

  • Page 18: Model Reference

    3. Model Reference Refer to the following table to determine the specific indoor unit model number of your purchased equipment. Indoor Unit Model Capacity (Btu/h) Power Supply IHM1-Y 80M 36k~42K 1Φ, 220-240V~, 50Hz Outdoor Unit Model Capacity (Btu/h) Power Supply MU2-Y 105M 1Φ, 220-240V~, 50Hz 4.

  • Page 19: Indoor Unit Combination

    5. Indoor unit combination One unit Two unit Three unit Four unit 7+ATW 7+7+ATW 9+12+ATW 7+7+7+ATW 7+9+12+ATW 9+12+12+ATW 9+ATW 7+9+ATW 9+18+ATW 7+7+9+ATW 7+9+18+ATW 9+12+18+ATW 12+ATW 7+12+ATW 12+12+ATW 7+7+12+ATW 9+9+9+ATW 12+12+12+ATW 18+ATW 7+18+ATW 12+18+ATW 7+7+18+ATW 9+9+12+ATW 12+12+18+ATW 9+9+ATW 18+18+ATW 7+9+9+ATW 9+9+18+ATW Note: ATW can only be connected with an A system.

  • Page 20: Nomenclature

    6. Nomenclature Indoor unit:  Page 20 ...
  • Page 21 Outdoor unit:  Page 21 ...

  • Page 22: Engineering Data

    Engineering Data Contents General Specifications ..................23 Dimensional Drawings ..................26 Part Names ......................28 Schematic Diagram ....................29 Electrical Wiring Diagrams ..................30 Printed Circuit Board Diagram ................31 Electrical Characteristics ..................37...

  • Page 23: General Specifications

    1. General Specifications IHM1-Y 80M Indoor model Function Heating and DHW Power supply V- Ph-Hz 220~240-1-50 Rated input 0.30 Rated current 1.95 Room Temperature °C 0~43 Heating Indoor Temperature Flow Temperature °C 25~60 Range(ATW) Domestic Hot Water Flow Temperature °C 35~55 Cooling °C...

  • Page 24: Product Features

    MU2-Y 105M Outdoor model Power supply V- Ph-Hz 220~240-1-50 Capacity BTU/H 36000 Capacity 10.6 Cooling Power Input 3.01 Capacity BTU/H 38000 Capacity 11.1 Heating Power Input 3.71 Pdesign C 10.6 Air-to-Air SEER Energy Efficiency Seasonal Cooling Class Annual Consump- tion Pdesign H SCOP Energy Efficiency...
  • Page 25 Capacity BTU/H 27296 Capacity Heating(A+7°C, LW35°C) Power Input Capacity BTU/H 27296 Capacity Heating(A+7°C, LW45°C) Power Input Capacity BTU/H 27296 Capacity Heating(A+7°C, LW55°C) Power Input Capacity BTU/H 27296 Capacity Heating(A+2°C, LW35°C) Power Input Capacity BTU/H 27296 Air-to-Water Capacity Heating(A+2°C, LW55°C) Power Input Capacity BTU/H 27000...

  • Page 26: Dimensional Drawings

    2. Dimensional Drawings Indoor unit:  Page 26 ...
  • Page 27 Outdoor unit: MU2-Y 105M  Page 27 ...

  • Page 28: Part Names

    3. Part Names 1. Expansion Vessel 10. Refrigerant gas connection 2. Automatic air purge valve 11. Manometer 3. Auxiliary heater vessel 12. Relief valve 4 . Flow switch 13. Pump 5. Drain valve 14. Refrigerant to water heat exchanger 6. Water inlet Ø1” (welded 15.

  • Page 29: Schematic Diagram

    4. Schematic Diagram 1. Outdoor unit 9. Shut-off valve 2. Indoor unit 10. Flow switch 3. Refrigerant to water heat exchanger 11. Auxiliary heater vessel 4. Manometer (Separate power supply) 5. Pump 12. Pressure relieve valve 6. Shut-off valve 13. Automatic air purge valve 7.

  • Page 30: Electrical Wiring Diagrams

    5. Electrical Wiring Diagrams Indoor unit: IHM1-Y 80M Outdoor unit: MU2-Y 105M  Page 30 ...

  • Page 31: Printed Circuit Board Diagram

    6. Printed Circuit Board Diagram Indoor unit printed circuit board diagram IHM1-Y 80M  Page 31 ...
  • Page 32 Name Meaning CN600 Pump connect to pump CN80 connect to flow switch TW_O connect to temperature sensor of exchanger outlet TW_I connect to temperature sensor of exchanger inlet CN200 TR_O connect to temperature sensor of refrigerant gas TR_I connect to temperature sensor of refrigerant liquid CN201 connect to temperature sensor of outlet water of hydraulic module WIRE...
  • Page 33 Outdoor unit printed circuit board diagram MU2-Y 105M  Page 33 ...
  • Page 34 Name Meaning Current loop communication A, signal wire, connect to the terminal CN30 (24V DC Pulse wave) Current loop communication B, signal wire, connect to the terminal CN29 (24V DC Pulse wave) Current loop communication C, signal wire, connect to the terminal CN28 (24V DC Pulse wave) Current loop communication D, signal wire, connect to the terminal...
  • Page 35 Name Meaning AC Fan CN43 Connect to AC fan motor CN20 connect to Electric Expansion Valve A CN21 connect to Electric Expansion Valve B Electronic CN17 connect to Electric Expansion Valve C Expansion valve CN18 connect to Electric Expansion Valve D CN19 connect to Electric Expansion Valve E Note: This section is for reference only.
  • Page 36 Outdoor unit IPM board diagram: MU2-Y 105M  Page 36 ...

  • Page 37: Electrical Characteristics

    Name Meaning OUT FAN (DC) CN19 Connect to DC motor Connect to compressor W Connect to compressor V Connect to compressor U CN54 CN54 Connect to main PCB CN6 CN51 CN51 Connect to PFC inductor CN53 CN53 Connect to main PCB CN5 CN52 CN52 Connect to PFC inductor...
  • Page 38 Product Features Contents Operation Modes and Functions ................39 Abbreviation ....................39 Safety Features ....................39 Engineer mode ....................39 Mode conflicts and priorities ................41 Space Heating Mode ...................42 DHW Mode ....................44 Heat&DHW Mode ..................45 Return Water Function ................45 Water Tank Disinfection Function ..............46 1.10 ECO Function ....................46 1.11 Auto-Restart Function ..................46 1.12 Commissioning and other related functions ..........46...

  • Page 39: Operation Modes And Functions

    1. Operation Modes and Functions the adjustment interface, the parameters will be subject to blinking display, and then adjust them by UP and DOWN keys. After completion of adjustment, press OK key to Abbreviation confirm the parameters. Unit element abbreviations 1) Choose F:01, indicating the volume of the water tank.
  • Page 40 15) Choose F:15, indicating the temperature return 33) Choose F: 33, indicating whether the hydraulic module difference of the heating water, ranging from 2°C to and the indoor unit of the air conditioner are allowed 10°C. to operate at the same time: 0: No; 1: Yes. 16) Choose F:16, indicating the water temperature of 34) Choose F:34, indicating the forced refrigeration water tank for startup of the EA heater, ranging from...

  • Page 41: Mode Conflicts And Priorities

    13) Choose T: 09, indicating the temperature of outdoor According to the principle of “who starts first, who runs first” , it is necessary to wait for the mode that runs first to shut down before switching to another mode. The mode 14) Choose T: 10, indicating the temperature of outdoor that starts but does not run is in standby mode.

  • Page 42: Space Heating Mode

    1.4.4 While the water heating mode is not prior to the indoor unit of the air conditioner and the hydraulic module and the indoor unit of the air conditioner are allowed to operate at the same time(optional) Open the two-way valve and three-way valve connected to Indoor Coolng or heating pipelines for heating.
  • Page 43 1.5.3 Built-in Electrical Heater Control Control the electric heaters according to dTW1_IBH (Default: 5°C)(temperature difference between electric Three built-in electric heaters(IBH1, IBH2, IBH3) are heater’s inlet and outlet water) installed in the hydraulic module, each of which is 1550W (now two groups totaling 3100w are installed). The built-in •...

  • Page 44: Dhw Mode

    AHS(Default: 5°C)(temperature difference between water won’t be connected. If SW1-4 is ON, the temperature set and real temp) sensor and EA heater of the water tank are active, and at the moment, the return water can be opened. • If TW1B≤TW1S-dTW1_AHS, AHS is turned on. •...

  • Page 45: Heat&Dhw Mode

    Heat and DHW Mode Tk(°C) 1.7.1 While the water tank temperature reaches the set temperature Unit in standby Tk(°C) Unit in water heating state TkS-dTkSC DHW off DHW on TkS-dTkSC Choose F:15, indicating the temperature difference of dTkSC water heating, ranging from 2°C to 10°C.The default value is 5°C.

  • Page 46: Water Tank Disinfection Function

    in the wired controller, and valid by default. If the allows the unit to restart automatically. The module temperature of return water is less than 42-3°C, the automatically stores the current settings and in the return water pump runs for 10min or shuts down at case of a sudden power failure, will restore those 42°C, with an interval of 30min.
  • Page 47 faults are valid, which is not limited by the judgment of ambient temperature and water temperature. Note: forced cooling can also be switched on in the wired controller engineer mode. Choose F: 34, indicating the forced cooling function: OFF: switched off; ON: switched on.

  • Page 48: Wired Controller Functions

    2. Wired Controller Functions LCD Wired Remote Controller KJR-120J/TFBG-E The KJR-120J/TFBG-E wired remote controller is standard for hydraulic module. i) Buttons and Functions 1 POWER button 7 FUNC. button 2 MODE button 8 BACK botton 3 DHW/DEL button 9 AUXILIARY 4 ADJUST button ELECTRICAL botton 5 CONFIRM button...
  • Page 49 ii) LCD Screen 1 Auto mode indication 12 Heat mode indication (Not applicable for this unit) 13 Turbo cooling or heating 2 Cool mode indication 14 Turbo domestic hot water (Not applicable for this unit) 15 Mute 3 Electrical auxiliary heat indication (Not applicable for this unit) 4 Defrost indication 16 Outgoing function...
  • Page 50 iii) Preparatory operation Set the current day and time 1. Press the Timer button for 2 seconds or more. The timer NOTE: When HEAT and DHW mode is selected, the display will flash. system will heat alternate between heating hot water and domestic hot water.
  • Page 51 most suitable time according to the control scheme, refrigerant liquid. considering energy saving and comfort. Select T: 06, it means Tk temperature sensor for water of water tank. Select T: 07, it means TH temperature sensor for return water. 9.Set button Select T: 08, it means TW1B temperature sensor for total Press SET button for 2 seconds to enter the query mode.
  • Page 52 timing function. VII) FUNC. Button 1. Press the function key to select WLAN distribution ex.Tuesday time scale 1 network, strong heating, strong hot water, going out, Up to 3 timer settings can be saved for each day disinfection (efective under shutdown) and other functions. of the week.It is conventent if the WEEKLY TIMER is set according to the user’s life style.

  • Page 53: Smart Kit Configuration Guidelines

    Install APP Under DHW mode or HEAT and DHW mode, press the FUNC. button to select the disinfection icon, press the Scan the following QR code: Confrm button to turn on or off the disinfection function. VIII) Battery Installation 1. The battery is placed in the accessory bag and needs to be installed in the wired controller on site.
  • Page 54 Press “ + Add Device ” Select appliance type Choose the network Choose the “ Scan the (Select Air To Water) con guration method. QR code ” method. Air To Water Air To Water Air To Water Follow the above steps to enter “AP” mode. Or choose the “Manual Please enter password Setup”...
  • Page 55 3.3.2 Using iOS device to do network configuration Network con guration is successful. Press “ + Add Device ” Select appliance type (Select Air To Water) Air To Water Air To Water Con guration Success, you can see the device on the list. Follow the above steps to enter “AP”...
  • Page 56 How to use the APP Air To Water Please ensure both your mobile device and air conditioner are connected to the Internet before using app to control the air conditioner via internet, please follow the next steps: Or choose the “Manual Please enter password Setup”...
  • Page 57 conditioner. For example: ECO, Turbo, please check the user manual to fnd more information. Function 3.5.1 ON/OFF In the shutdown state, there is a separate shutdown status page. Click the button to enter the device control page. In the power-on state, click the button, the device will shut down, and the page will jump to the shutdown state page.
  • Page 58 3.5.6 Share Device 3.5.7 Site The air conditioner can be controlled by multi-users at the same time by Share Device function. Click " " Click "Full Name" Click "Share device " Let the others to scan the displayed QR code. ...

  • Page 59: Installation

    Installation Contents Accessories ........................60 Installation Overview ..................61 Location Selection ....................62 Indoor Unit Installation ..................63 Outdoor Unit Installation ..................65 Refrigerant Pipe Installation ................66 Vacuum Drying and Leakage Checking ..............67 Water Pipework ....................67 Additional Refrigerant Charge ................68 Engineering of Insulation ...................69 Engineering of Electrical Wiring ................70 Selection of Water Tank ..................74 Test Operation .....................74 Error Code ......................75...

  • Page 60: Accessories

    Accessories The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to in- stall the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or equipment failure. Name Shape Quantity Manual Mounting bracket...

  • Page 61: Installation Overview

    1. Installation Overview Installation Order Install the indoor unit Install the drainpipe Install the outdoor unit Evacuate the refrigeration Connect the wires Connect the refrigerant system pipes Perform a test run  Page 61 ...

  • Page 62: Location Selection

    2. Location selection The indoor unit is to be wall mounted in an indoor location that meets the following requirements: • The installation location is frost-free. • The space around the unit is adequate for serving. • The space around the unit allows for sufficient air circulation.

  • Page 63: Indoor Unit Installation

    Strong Wind Installation Salty Air Installation(seaside) Wind of 5m/s or more blowing against an outdoor Use outdoor unit that is specially designed to resist unit’s air outlet blocks the flow of air through the unit, corrosion. leading to deterioration in unit capacity, accelerated frost 3.
  • Page 64 level. When the unit is not installed level, air might get water system of indoor unit. trapped in the water circuit resulting in malfunctioning of • Check the water system for leaks. the unit. • If there is no leakage in the system pipeline, the power 3.

  • Page 65: Outdoor Unit Installation

    Bolt pitch vertically , direct drainage to the floor drain. • The drainage pipe should be well installed ,in order to avoid freezing up in cold weather. Do not block off or bend the Drainage pipe. • Arrange the drain hose to ensure smooth drainpipe. Improper drainpipe may cause wetting of the building, furniture etc.

  • Page 66: Refrigerant Pipe Installation

    5. Refrigerant Pipe Installation 5. Insulate the copper pipe • Before test operation, the joint parts should not be heat insulated. Maximum length and drop height 6. Flare the pipe Ensure that the length of the refrigerant pipe and the drop •...

  • Page 67: Vacuum Drying And Leakage Checking

    moisture or leakage in pipeline system and need to go on Torque with drying for half an hour. Pipe Diameter Sketch map m(lb.ft) 3. If the vacuum degree of vacuum pump still could not 15~16 reach -755mmHg after 1.5 hours of drying, check whether 1/4"...

  • Page 68: Additional Refrigerant Charge

    tween indoor and outdoor unit. Refer the following system to permit complete drainage of the circuit formula to calculate the charge volume. during maintenance. Diameter of liquid • Air vents must be provided at all high points of the Formula pipe (mm) system.

  • Page 69: Engineering Of Insulation

    Water Flow Switch 9. Engineering of Insulation Water may enter into the flow switch and cannot be Insulation of refrigerant pipe drained out and may freeze when the temperature is low enough. The flow switch should be removed and dried, 1.

  • Page 70: Engineering Of Electrical Wiring

    10. Engineering of Electrical Wiring insulation and cause easy aging of the material. Insulation of drainage pipe 10.1 Highlights of electrical wiring installation 1. Operational procedure of refrigerant pipe insulation • All field wiring construction should be finished by qualified electrician. Select the suitable pipe →...
  • Page 71 10.3 2-Way Valve Rated Current of Nominal Cross-Sectional Appliance (A) Area(mm Normally closed two-way valve, opened when power on, closed, 220-240V 50Hz, valve size selected as per pipeline ≤ 6 0.75 size. The main function of this valve is to close the floor 6 - 10 heating water flow in case of cooling (if provided), and it 10 - 16...
  • Page 72 Power If there is no 3-way valve, 2 normally closed 2-way valves EA heater can be used instead, as shown in the figure below 10.6 EA heater for water tank It is controlled by AC contactor, with control end output voltage of 220-240V 50Hz HEAT 10.5 Auxiliary heating source for heating...
  • Page 73 with the capacity equivalent to 30% of the Power unit’s nominal capacity is used in the region with minimum temperature no less than - 7°C. • In the region with the minimum temperature lower than - 7°C, the household power supply load and the unit’s nominal capacity should be taken into account for selecting an EA heater.

  • Page 74: Selection Of Water Tank

    12. Test Operation Power 1. The test operation must be carried out after the entire installation has been completed. 2. Please confirm the following points before the test operation. • The indoor unit and outdoor unit are installed prop- erly. •...

  • Page 75: Error Code

    13 Error Code Display Error Information Indoor unit EEPROM parameter error EH 00 Indoor / outdoor unit communication error EL 01 Outdoor unit EEPROM parameter error EC 51 Condenser coil temperature sensor T3 is in open circuit or has short circuited EC 52 Outdoor room temperature sensor T4 is in open circuit or has short circuited EC 53...
  • Page 76 Low pressure protection (for some models) PC 03 Indoor units mode conflict(match with multi outdoor unit) (for some models) For other errors: The display board may show a garbled code or a code undefined by the service manual. Ensure that this code is not a temperature reading.
  • Page 77 22851 Norderstedt, Germany Moscow, Russian Federation, 107023 32032 Feltre (BL) - Italy Tel. +385916065691 - info.see@clivet.com Tel. +49 40 325957-0 - info.de@clivet.com Tel. +7495 6462009 - info.ru@clivet.com Clivet Airconditioning Systems Pvt Ltd Tel. +39 0439 3131 - info@clivet.it CLIVET MIDEAST FZCO Office No.501 &...
