- Page 1 JuiceWay EV Charger INSTALLATION MANUAL DC Fast Charger Dual/Triple Ports Guangzhou Hoston Energy Technology Co., LTD Add.: No.3, Fuyu Road, Hualong Town, Panyu District, Guangzhou City, Guangdong Province Website: www.juicewayenergy.com Email: wendy.cen@juicewayenergy.com...
- Page 2 JUICEWAY EV Charger Installation_manual Version: V2.1 Notice This document contains information about one or more JuiceWay products and may include a description of or a reference to one or more standards that may be generally relevant to the JuiceWay products. The presence of any such description of a standard or reference to a standard is not a representation that all of the JuiceWay products referenced in this document support all of the features of the described or referenced standard.
- Page 3 Ø TERMS ü AC Alternating Current. ü CCS Combined Charging System. This is the name of the charging protocol of European and North- American car makers. ü CHAdeMO DC fast charging method for electric vehicles. ü Contractor Entity hired by the owner / site operator to do engineering, civil and electrical installation work.
- Page 4 Ø TERMS ü RFID Radio- Frequency Identification. RFID is a communication technology by means of radio waves to transfer data over a very short distance between a reader and an electronic tag or card. ü Site operator This entity is responsible for the day to day control of the charger. The site operator can be the owner, but not necessarily.
- Page 5 Ø Safety Precautions Please read the operating instructions and precautions carefully before starting the operation to reduce the accident. The “Caution, Warning, and Danger” items in the product and product manuals do not represent all safety precautions that should be followed, and are only supplementary to various operational safety precautions. In the operation of our products and equipment, we must abide by the safety regulations of relevant industries and strictly abide by the relevant equipment precautions and special safety instructions provided by Guangzhou Hoston Energy Technology Co., Ltd..
- Page 6 The polarity of the cables and interface terminals must be strictly checked during DC live working. DC power distribution operation space is compact, please pay attention to choose operating space before any operation. Operation must use insulation tools. When charging operation, you must pay attention to the tension of the hands, wrists and arms to prevent the tool or the human body from moving too much and causing accidents.

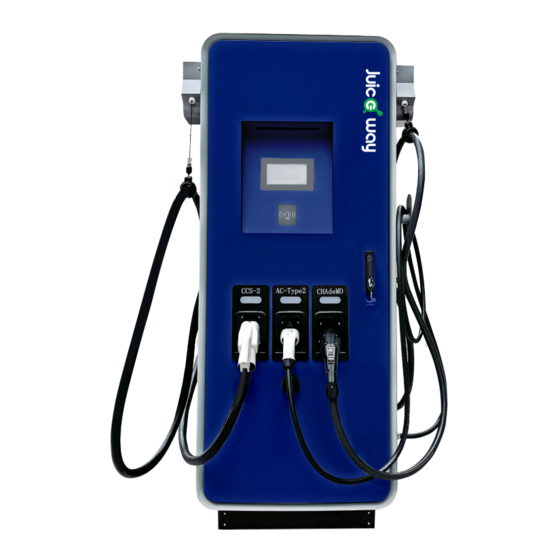

- Page 7 ❶ Overview JuiceWay series EV charging station is EV charger that can be configured to meet different charging needs of European. It supports simultaneous charging and balancer reel for advanced cable management. With user-friendly interface display and control guidance function, customers can complete the charging process easily. It is IP54 rated which makes it suitable for outdoor &...
-
Page 8: Technical Parameters
Technical Parameters P ro p e r t y · Mo d e l E V D C 60 KW E V D C 80 KW E VD C 1 20 KW E VD C 1 60 KW DC output CCS: 80kW max CCS: 60kW max CCS: 120kW max... -
Page 9: Safety Regulations
❷ Installation 2.1 Safety regulations The working voltage inside the charging system is very high and the current is very big. To ensure personal safety, the following regulations should be observed at all times: 1. Only those who have been trained in the charging system and have a good knowledge of the charging system can install the charging system. - Page 10 Unpack the wooden case following below steps. Open the crate and remove all panels except the charger base plate. Note ：Same series products, similar packaging Unscrew the 4 bolts from the base plate. Then remove it. 4 bolts III. Remove from the base plate. base plate.
- Page 11 2. Cable Cable selection should comply with relevant electrical industry specifications. The AC cable is recommended to be RVVZ type cable with a voltage rating of 550/750V or higher and a temperature rating of at least 70°C. The user determines the cross-sectional area of the input and output cables of the charging cabinet according to table below.
-
Page 12: Charger Installation
Charger installation Steps: Lift the charger with the forklift at the bottom slots. Place the charger onto the concrete base of the final location against the holes at the bottom of the charger. Fix with 4 screws against the expansion studs at bottom of the charger. Holes (in red) at the bottom of the charger Unit: mm Note ：Same series products, installation... - Page 13 Steps: Lead the AC power cord into the bottom of the charging pile from the cable entry hole reserved on the cement base。 Use a hole diameter of 12mm metallic electric terminal aligned with the required cable cross section according with the power of the Charge Point (142kW DC).
- Page 14 2.6 Charging module installation Group B Group A Steps: Open the locks of the door panels on both sides of the charger. Install the charging modules into the slots which have the same address mXXX as the modules, see the right figure. Tighten the modules with the screws on both sides.
-
Page 15: Operation
❸ Operation The DC Charger is operated via the LCD Touch screen on the front panel. Charging progress can be started by RFID Card, scanning a QR Code and Smartphone Applet control (need operation platform and Ethernet support and smartphone applet) or manually. 3.1 Beacons Over each connector there is a beacon light, it indicates the state of charge in which the connector is located. -
Page 16: How To Charge
3.4 How to Charge Press the START button of Standby Interface to enter Connection interface. Select the plug compliant with your vehicle on the display and connect the charger to your car. Wait for connection status checking completed successfully. Note: The system leaves user 180s for connection, if times out, display will return to Standby interface. - Page 17 4.2 If you choose mobile app for authentication, scan the QR code with your smartphone application. Note: User CARDS are uniformly issued by operators. If you choose QR code scanning, the authorization will be performed on your smartphone application. After authentication passed, the charging will start. The display will show the charging details interface. Press the info icon for more detailed charging data Press the info icon, more detailed charging data will be displayed on the screen.
- Page 18 3.5 Simultaneous Charging If another user comes to start another charging, follow below steps to initiate. Select the plug which is compliant with your car and not popped out. Connect the charger to your car. The plug icon which is not popped out Note: Simultaneous charging is only available for the EV which has different charging plug compared to the first...
-
Page 19: How To Stop
3.6 How to Stop A. Card swiping to start charging mode. Swipe the card again to stop charging. Enter Billing interface automatically. B. Smartphone APP to start charging mode. Operate on the mobile APP to stop charging. Enter Billing interface automatically. Press the information icon on, the display will show more detailed information. -
Page 20: Maintenance
3.7 Maintenance 3.7.1 How to enter maintenance interface Click the top left area of the screen to initiate Maintenance interface. The hidden Maintenance interface button is here. Press and hold this area for 1 second to enter Maintenance interface. Input password for verification to enter Maintenance interface. Note: •... - Page 21 3.7.2 What parameters to configure General setting Network and OCPP setting Local network setting on Page 1. Input the corresponding parameters or click DHCP to obtain the network configuration parameters automatically. LTE network setting on Page 2. Install the 4g module of the specified model inside the charging station and choose the corresponding parameters to use the LTE networking function.
- Page 22 III. OCPP setting on Page 3 & 4. After the charging station is successfully connected to the network, input OCPP configuration parameters obtained from the charging platform operator. Afterwards the charger will automatically perform OCPP connection. The parameters include: IP address Port OCPP version Server URL...
-
Page 23: Routine Maintenance
❹ Routine maintenance The charging station needs to be regularly checked and perform routine maintenance operations. The specific daily maintenance contents are as follows: Prohibit non-professionals from opening the charger housing and turning on / off the power. When the front door is open, it is forbidden to touch any metal parts except the case and door handle. Do not operate flying wires, connecting wires and jumpers. - Page 24 Guangzhou Hoston Energy Technology Co., LTD Add.: No.3, Fuyu Road, Hualong Town, Panyu District, Guangzhou City, Guangdong Province Website: www.juicewayenergy.com Email: wendy.cen@juicewayenergy.com...
