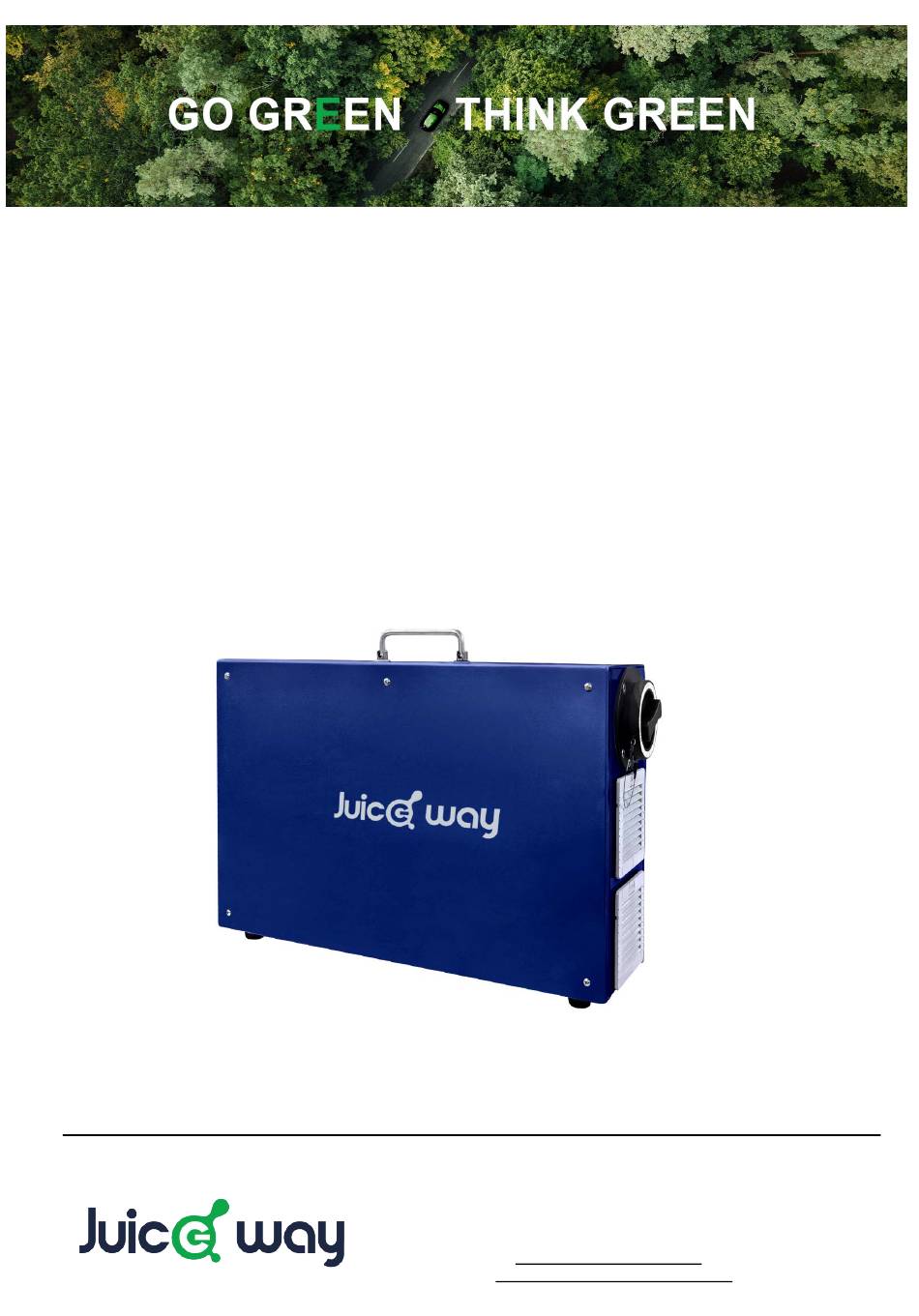

- Page 1 JuiceWay EV Charger INSTALLATION MANUAL 20kW Portable DC Charger Guangzhou Hoston Energy Technology Co., LTD Add.: No.3, Fuyu Road, Hualong Town, Panyu District, Guangzhou City, Guangdong Province Website: www.juicewayenergy.com Email: wendy.cen@juicewayenergy.com...
- Page 2 JUICEWAY EV Charger Product Brochure Version: V1.0 Date: 2023-2-20 Copyright Information Guangzhou Hoston Energy Technology Co.,Ltd Copyright, all rights reserved. The content is subject to change without notice. No part of this manual can be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of the original manufacturer.
- Page 3 JUICEWAY EV Charger Product Brochure Safety Precautions Please read the operating instructions and precautions carefully before starting the operation to reduce the accident. The “Caution, Warning, and Danger” items in the product and product manuals do not represent all safety precautions that should be followed, and are only supplementary to various operational safety precautions.
- Page 4 JUICEWAY EV Charger Product Brochure The polarity of the cables and interface terminals must be strictly checked during DC live working. DC power distribution operation space is compact, please pay attention to choose operating space before any operation. Operation must use insulation tools. When charging operation, you must pay attention to the tension of the hands, wrists and arms to prevent the tool or the human body from moving too much and causing accidents.
-
Page 5: Table Of Contents
Table of Contents 1. Overview......................................... 1 Main features....................................1 1.1 Dimensions..................................2 1.2 Technical parameters..............................3 2. Operation......................................4 2.1 Inspection....................................4 2.2 Interface......................................4 2.3 Status Description....................................6 2.4 Trouble Shooting………………………………………………………………………………………………………………………..7 2.5 Precautions……………………………………………………………………………………………………………………..7 2.6 Indicator…………………………………………………………………………………………………………………………………8 2 . 7 C h a r g i n g C a b l e … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 8 2.8 Emergency Stop Switch…………………………………………………………………………………………………………………………………8 3. -
Page 6: Overview

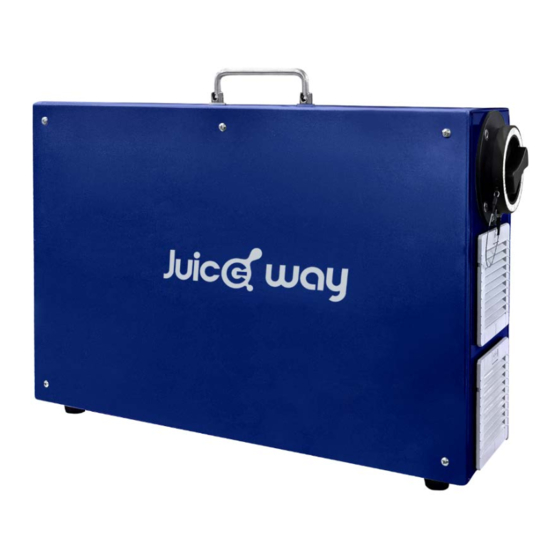

JUICEWAY EV Charger Product Brochure ❶ Overview The electric vehicle charger produced by Guangzhou Hoston Energy Technology Co., Ltd. is based on the Linux embedded operating system, with a 32-bit embedded processor as the core unit. This product is a 20kW portable single- gun off-board charger, which uses the charging gun to provide DC power for electric vehicles. -
Page 7: Dimensions
JUICEWAY EV Charger Product Brochure 1.1 Dimensions Dimensions in mm. -
Page 8: Technical Parameters
JUICEWAY EV Charger Product Brochure 1.2 Technical Parameters Property Model Number CEVDC40KW Working temperature -30℃～＋55℃ Working humidity 5%~95% non-condensable Height above sea level 2000m Environment Protection class IP55 Cooling method air cooling Noise control Less than 50 db Input voltage AC400V±10%... -
Page 9: Operation
JUICEWAY EV Charger Product Brochure 2 Operation 2.1 Inspection Please check the following carefully before using this product: (1) Ensure that the product is free from scratches, rust, deformation, etc. (2) Make sure that the power supply socket is safe, and that there are no foreign objects left in the charging plug and the charging socket on the vehicle side. - Page 10 JUICEWAY EV Charger Product Brochure (3) Charging Display charging time, battery SOC, charging voltage, charging current, charging power, remaining charging time (4) Stop charging (5) Equipment failure If it is a failure to start, it will display the code of the failure to start. If it is a device failure, it will display the code of the failure.
-
Page 11: Status Description
JUICEWAY EV Charger Product Brochure (6) Device standby The vehicle is not connected, prompting the customer to insert the gun. 2.3 Status Description (1) Charging gun connection status: The system detects the connection status of the charging gun and the vehicle. -
Page 12: Trouble Shooting
JUICEWAY EV Charger Product Brochure 2.4 Trouble Shooting 1) AC input overvoltage/undervoltage: Please check whether the voltage on the AC input side is too high or too low, and if there is still a fault after troubleshooting the input abnormality, then check whether the threshold value set in the parameter setting interface is correct. -
Page 13: Indicator
JUICEWAY EV Charger Product Brochure 2.6 Indicator Each charging gun corresponds to a charging status indicator board, as shown in Figure 2. (1) Red light: fault indicator light, indicating that the system is faulty. (2) Blue light: Charging status indicator light, flashes when charging, and is always on when charging is complete/standby. -
Page 14: Routine Maintenance
JUICEWAY EV Charger Product Brochure 3 Routine maintenance The charging station needs to be regularly checked and perform routine maintenance operations. The specific daily maintenance contents are as follows: Prohibit non-professionals from opening the charger housing and turning on / off the power. When the front door is open, it is forbidden to touch any metal parts except the case and door handle. - Page 15 Guangzhou Hoston Energy Technology Co., LTD Add.: No.3, Fuyu Road, Hualong Town, Panyu District, Guangzhou City, Guangdong Province Website: www.juicewayenergy.com Email: wendy.cen@juicewayenergy.com...
