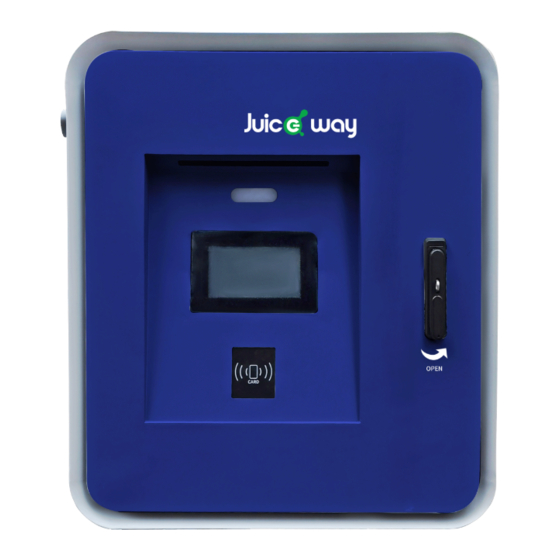

- Page 1 JuiceWay EV Charger INSTALLATION MANUAL 20kW / 40kW Wallbox Guangzhou Hoston Energy Technology Co., LTD Add.: No.3, Fuyu Road, Hualong Town, Panyu District, Guangzhou City, Guangdong Province Website: www.juicewayenergy.com Email: wendy.cen@juicewayenergy.com...
- Page 2 JUICEWAY Charger Product Brochure Version: V1.0 Date: 2023-2-1 Copyright Information Guangzhou Hoston Energy Technology Co.,Ltd Copyright, all rights reserved. The content is subject to change without notice. No part of this manual can be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of the original manufacturer.
- Page 3 JUICEWAY EV Charger Product Brochure Safety Precautions Please read the operating instructions and precautions carefully before starting the operation to reduce the accident. The “Caution, Warning, and Danger” items in the product and product manuals do not represent all safety precautions that should be followed, and are only supplementary to various operational safety precautions.
- Page 4 JUICEWAY EV Charger Product Brochure The polarity of the cables and interface terminals must be strictly checked during DC live working. DC power distribution operation space is compact, please pay attention to choose operating space before any operation. Operation must use insulation tools. When charging operation, you must pay attention to the tension of the hands, wrists and arms to prevent the tool or the human body from moving too much and causing accidents.
-
Page 5: Table Of Contents
Table of Contents 1. Overview......................................... 1 Main features....................................1 1.1 Model description..................................2 1.2 Dimensions....................................2 1.3 Technical parameters..............................3 2. Installation......................................4 2.1 Safety regulations..................................4 2.2 Distance requirements................................4 2.3 Installation preparations...............................5 2.4 Wiring Instructions………………………………………………………………………………………………………………………6 3. Operation......................................7 3.1 Beacons....................................7 3.2 Boot up......................................8 3.3 Standby....................................8 3.4 How to charge………………………………………………………………………………………………………………………..9 3.5 Simultaneous charging……………………………………………………………………………………………………………………..10 3.6 How to stop…………………………………………………………………………………………………………………………………11... -
Page 6: Overview
JUICEWAY EV Charger Product Brochure ❶ Overview The series EV charging station is AC / DC outlets CCS 7 to 600kW (max up to 600kW) EV charger that can be configured to meet different charging needs of European and North American customers. It supports simultaneous charging and balancer reel for advanced cable management. -
Page 7: Dimensions
JUICEWAY EV Charger Product Brochure Dimensions in mm. Installation: Wall-mounted Installation: Portable... -
Page 8: Technical Parameters
JUICEWAY EV Charger Product Brochure 1.3 Technical Parameters property Model Number EVDC40KW Working temperature -30℃～＋55℃ Working humidity 5%~95% non-condensable Height above sea level 2000m environment Protection class IP55 Cooling method air cooling Noise control Less than 50 db MTBF 17,520 hours Input voltage AC400V±10%... -
Page 9: Installation
JUICEWAY EV Charger Product Brochure ❷ Installation 2.1 Safety regulations The working voltage inside the charging system is very high and the current is very big. To ensure personal safety, the following regulations should be observed at all times: 1. Only those who have been trained in the charging system and have a good knowledge of the charging system can install the charging system. -
Page 10: Installation Preparations
JUICEWAY EV Charger Product Brochure 2.3 Installation preparation 1.Pile fixed installation. The location of the pile foundation should be selected in a place with high surrounding terrain. After the location is selected, the entrance of the input cable should be reserved in advance during foundation construction. -
Page 11: Operation
JUICEWAY EV Charger Product Brochure ❸ Operation The DC Charger is operated via the LCD Touch screen on the front panel. Charging progress can be started by RFID Card, scanning a QR Code and Smartphone Applet control (need operation platform and Ethernet support and smartphone applet) or manually. -
Page 12: How To Charge
JUICEWAY EV Charger Product Brochure 3.4 How to Charge Press the START button of Standby Interface to enter Connection interface. Select the plug compliant with your vehicle on the display and connect the charger to your car. Wait for connection status checking completed successfully. Note: The system leaves user 180s for connection, if times out, display will return to Standby interface. - Page 13 JUICEWAY EV Charger Product Brochure 4.2 If you choose mobile app for authentication, scan the QR code with your smartphone application. Note: User CARDS are uniformly issued by operators. If you choose QR code scanning, the authorization will be performed on your smartphone application. After authentication passed, the charging will start.
-
Page 14: Simultaneous Charging
JUICEWAY EV Charger Product Brochure 3.5 Simultaneous Charging If another user comes to start another charging, follow below steps to initiate. Select the plug which is compliant with your car and not popped out. Connect the charger to your car. The plug icon which is not popped out Note:... -
Page 15: How To Stop
JUICEWAY EV Charger Product Brochure 3.6 How to Stop A. Card swiping to start charging mode. Swipe the card again to stop charging. Enter Billing interface automatically. B. Smartphone APP to start charging mode. Operate on the mobile APP to stop charging. Enter Billing interface automatically. -
Page 16: Maintenance
JUICEWAY EV Charger Product Brochure 3.7 Maintenance 3.7.1 How to enter maintenance interface Click the top left area of the screen to initiate Maintenance interface. The hidden Maintenance interface button is here. Press and hold this area for 1 second to enter Maintenance interface. -
Page 17: What Parameters To Configure
JUICEWAY EV Charger Product Brochure 3.7.2 What parameters to configure General setting Network and OCPP setting Local network setting on Page 1. Input the corresponding parameters or click DHCP to obtain the network configuration parameters automatically. LTE network setting on Page 2. Install the 4g module of the specified model inside the charging station and choose the corresponding parameters to use the LTE networking function. -
Page 18: Meter Management Settings
JUICEWAY EV Charger Product Brochure III. OCPP setting on Page 3 & 4. After the charging station is successfully connected to the network, input OCPP configuration parameters obtained from the charging platform operator. Afterwards the charger will automatically perform OCPP connection. The parameters include: IP address Port... -
Page 19: Routine Maintenance
JUICEWAY EV Charger Product Brochure ❹ Routine maintenance The charging station needs to be regularly checked and perform routine maintenance operations. The specific daily maintenance contents are as follows: Prohibit non-professionals from opening the charger housing and turning on / off the power. When the front door is open, it is forbidden to touch any metal parts except the case and door handle. - Page 20 Guangzhou Hoston Energy Technology Co., LTD Add.: No.3, Fuyu Road, Hualong Town, Panyu District, Guangzhou City, Guangdong Province Website: www.juicewayenergy.com Email: wendy.cen@juicewayenergy.com...
