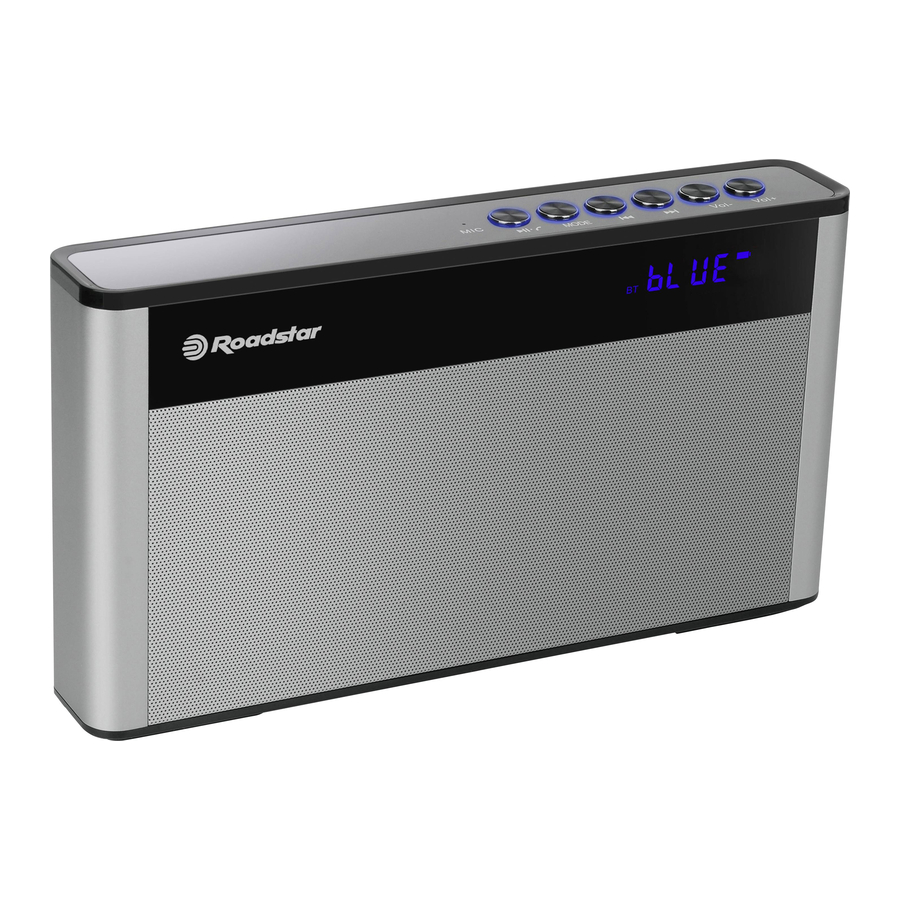

Roadstar TRA-570US/BT - Portable Radio With Bluetooth Manual

LOCATION OF CONTROLS

1. PLAY - PAUSE / BLUETOOTH PAIRING / ANSWER PHONE CALL
2. MODE / SCAN BUTTON
3. TUNING - / SKIP -
4. TUNING + / SKIP +
5. VOLUME -
6. VOLUME +
7. DISPLAY
8. MICROPHONE
9. SPEAKERS
10. POWER ON/OFF SWITCH
11. DC SOCKET (MICRO USB)
12. USB PORT
13. TF CARD PORT
14. AUXILIARY INPUT
15. LED INDICATOR (FOR BATTERY CHARGING)

CHARGING BATTERY

The radio is powered by the built-in lithium battery. (An USB charging cable is supplied in the product package).
When battery power is low, on the display will appear the icon to remind for battery charging.
To charge the battery, connect the micro USB plug to the port (11) at the rear side of the radio, connect the other end to a power source supplied with 5V OUT.
The LED (15) will light up in red and indicates that the battery is charging.
The full charge is reached after about 5 hours.
Note: If the radio will not be used for a long period of time, please recharge the battery every 2-3 months to avoid loss of battery performance.

TO USE THE RADIO

1. Move the [POWER] switch (10) to ON to switch ON the radio;
2. Select the desired audio source by pressing the [MODE] button (2);
3. (Please see detailed instructions for each Source in the following chapters);
4. Adjust the volume with the [VOL +/-] buttons (5/6) to the desired level;
5. Move the [POWER] switch (10) to OFF to turn OFF the unit.

FM RADIO OPERATION

1. Select "FM" mode by pressing repeatedly the [MODE] button (2);
2. Press the [TUNING +/-] button (3/4) to manually select the frequence or press and hold (2 seconds) to scan the next/previous available station.

STORE RADIO STATIONS AUTOMATICALLY:
Press & Hold the [SCAN] button (2) (for 3 seconds) and the radio will automatically scan the radio. During the scanning process, the radio will save the scanned stations sequentially into the memory.

RECALL A PRESET STATION:
Press the [PLAY-PAUSE] button (1) repeatedly to choose the desired station.

BLUETOOTH OPERATION

1. Select "BT" mode by pressing repeatedly the [MODE] button (2);
2. Press and hold (for 3 seconds) the [PAIRING] button (1);
3. Connect your Bluetooth portable device to the ID Bluetooth tagged as "TRA-570US/BT";
4. You can now transfer the music to the TRA-570US/ BT.

Note: Music control (play, pause, etc) must be done from your external device.

ANSWER A PHONE CALL:
To Answer a phone call when your device is connected to the Speaker, press the [ANSWER] button (1). To hang up the phone call press the button again.

USB OPERATION

1. Plug an USB stick (max. 32GB) into the [USB PORT] (12);
2. Playback will start automatically from the first track.

Notes:

• Some mp3 player may not be able to play via the usb socket. this is not a maul-function of the system.
• To avoid damage to USB memory, remove it only when the radio is turned off.
• The USB port is not designed for charging smartphones or other devices.

TF OPERATION

1. Plug a micro SD (TF) card (max. 32GB) into the [TF PORT] (13);
2. Playback will start automatically from the first track.

AUX-IN OPERATION

1. Use one male to male 3.5mm jack cable (not included) to connect any external audio device to the [AUX-IN SOCKET] (14);
2. Select "AUX" mode by pressing repeatedly the [MODE] button (2).

Note: Music control (play, pause, etc) must be done from your external device.

TECNICAL SPECIFICATIONS

Specifications and design are subject to possible modifications without notice due to improvement.
