Summary of Contents for Bluebell TDM-700 Series

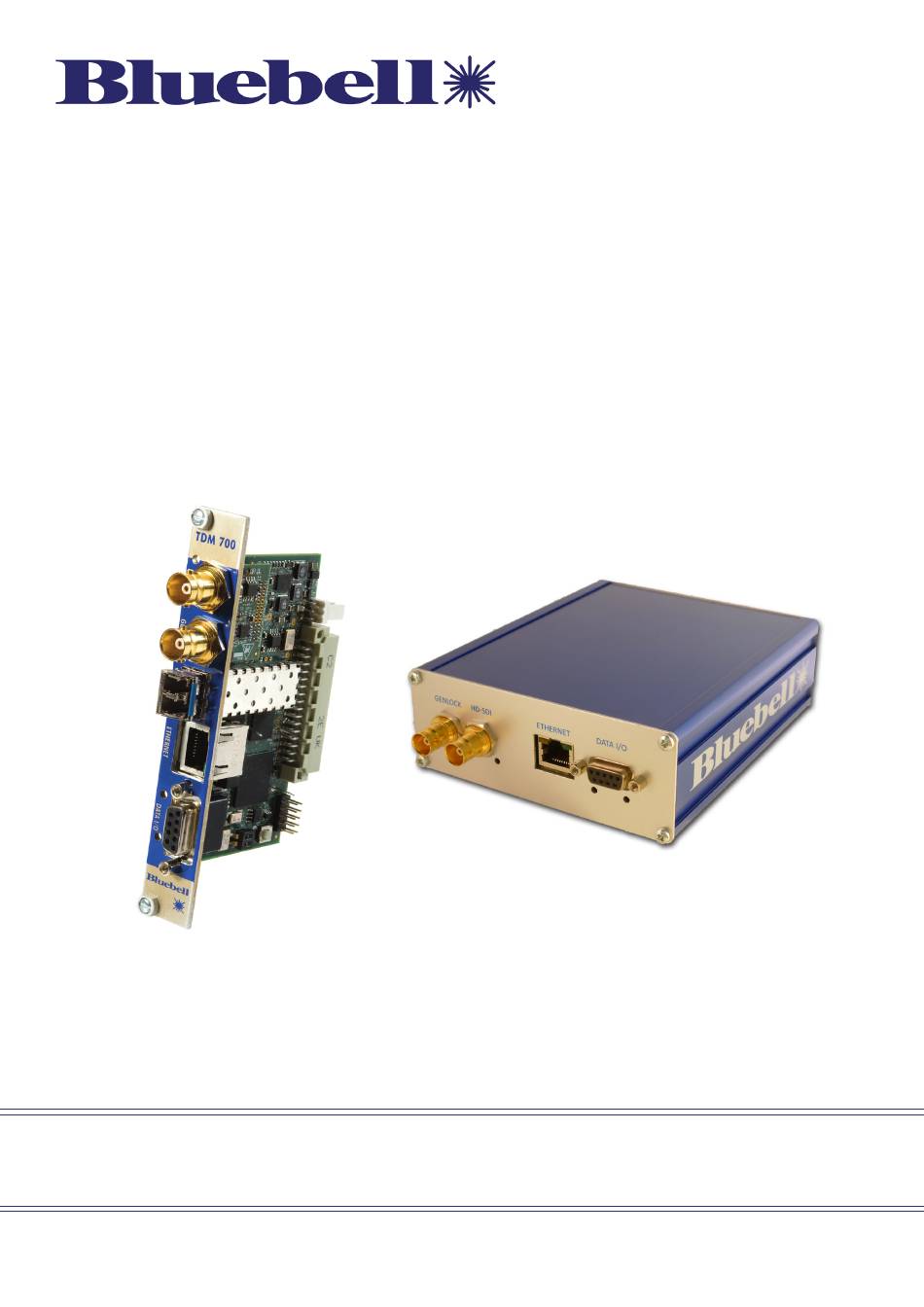

- Page 1 TDM-700 Series Fibre video interfaces Operation Guide Ref: TDM-700 issue 1.2_01/14...
-
Page 2: Declaration Of Conformities
Bluebell Opticom Ltd. Bluebell Opticom Ltd. has taken all possible steps to ensure that the information given here is both correct and complete. In no event can Bluebell Opticom Ltd. accept any liability or responsibility for any loss or damage to the owner of the equipment, any third party, or any equipment which may result from use of this manual or the equipment which it describes. -
Page 3: Table Of Contents
Optical wavelengths..............14 TDM-700 Series Operation Guide V1.2... -
Page 4: Overview
Thank you for purchasing this Bluebell Opticom professional broadcast video product. If you are new to Bluebell products, or to the subject of transmitting video and/or other data over fibre links, please take the time to read through this document before putting the TDM-700 to use. - Page 5 ✓ ✓ ✓ TDM-730B ✓ ✓ ✓ TDM-730C ✓ ✓ ✓ Stand-alone units: TDM-700BE ✓ ✓ ✓ ✓ ✓ TDM-700CE ✓ ✓ ✓ ✓ ✓ TDM-710BE ✓ ✓ ✓ ✓ TDM-710CE ✓ ✓ ✓ ✓ TDM-700 Series Operation Guide V1.2...
-
Page 6: Power Requirements
The Stand-alone enclosures are fitted with a 4-pin XLR male connector. They are supplied with an external Universal AC adaptor with a flying lead terminated in a mating XLR. AC mains to the adaptor is via a standard IEC connector. TDM-700 Series Operation Guide V1.2... -
Page 7: Tdm-700 Series Connections
Use this connection to interface with POV cameras equipped with Ethernet control, or if an Ethernet link to the POV location is required for any other purpose. The connector has integral LEDs to confirm a valid link (green) and data activity (yellow). TDM-700 Series Operation Guide V1.2... - Page 8 10. Serial data activity (output) LED – illuminates when RS-232/422 data is present at the serial outputs of the Dsub connector. 11. OPTICAL I/O – The TDM-700 Series BE and CE versions are fitted with either a Lemo L3K or a Neutrik OpticalCON dual fibre connector.
-
Page 9: System Block Diagrams
3G optical carrier, which is sent through the fibre to the TDM-700C camera end unit. The genlock and control data are extracted from the optical bitstream and fed to the camera. TDM-700 Series Operation Guide V1.2... -
Page 10: Connections For Installation
The TDM-700 system has been designed for rapid deployment; no set-up procedure is necessary. Base end: TDM-700B, TDM-710B, TDM-720B and TDM-730B: plug the card into a spare slot in a Bluebell BC100, BC160 modular rack unit or a BC120 triple-slot enclosure. Power is provided by the rack in these cases. - Page 11 5.5 V and the current drawn not more than 24 mA. The command and tally lines can be used for any general signalisation purpose. TDM-700 Series Operation Guide V1.2...
-
Page 12: Camera End
Camera end: TDM-700C, TDM-710C, TDM-720C and TDM-730C: plug the card into a spare slot in a Bluebell BC100, BC160 modular rack unit or a BC120 triple-slot enclosure. Power is provided by the rack in these cases. If using a BC101 or BC102 enclosure, fit the card and connect an external source of DC power via the XLR4 socket. -
Page 13: Appendix
20 mm 4TE Height 100 mm (3RU) Weight 100 g Operating Temp -30 to +70°C Power General stand-alone unit specifications (Exact size is connector-dependant) Depth 160 mm Width 120 mm Height 45 mm Weight 200 g TDM-700 Series Operation Guide V1.2... -
Page 14: Optical Wavelengths
-2 dBm @ 1310/1510 nm (typical) Optical wavelengths TDM-700 Series plug-in cards are fitted with a removable SFP transceiver cartridge. These have a standard transmission wavelength of 1310 nm, however the wavelength may be specified at the time of ordering to be any of the standard CWDM wavelengths. Cartridges are field-interchangeable. All receivers are wideband. - Page 15 TDM-700 Series Operation Guide V1.2...
