Cooper Crouse-Hinds EDSC2199 Specifications

2C EDS Series Factory Sealed
Manual Motor Starting Switches
and Enclosures
Applications:
Factory sealed enclosures are installed in a
rigid metallic conduit system for surface
mounting adjacent to or remote from
equipment being controlled and are used:
• To prevent arcing of enclosed device
from causing ignition of a specific
hazardous atmosphere or atmospheres
external to the enclosure
• In industrial areas such as chemical
plants, oil and gas refineries, paint and
varnish manufacturing plants, gasoline
bulk loading terminals, grain elevators,
grain processing industries, coal
processing or handling areas, or metal
handling or finishing areas where
atmosphere may contain hazardous
gases and/or dust
• In non-hazardous areas where sturdy,
durable enclosures are required
• In conjunction with magnetic starters or
contactors for remote control of motors
Manual motor starting switch enclosures
are used:
• For manual starting of small AC or DC
motors
• To provide manual starting and stopping
and, in the case of units with heaters,
motor running protection
Features:
Factory sealed devices have many distinct
advantages:
• Reduce installation problems
• Eliminate external seals
• Lower installation costs
• Improve safety
• Mounting lugs and taper tapped hubs
with integral bushings
• Large machine screws for fastening
covers to bodies
• Lockout hole for padlock having
hasp is provided
• Close tolerances in machining of wide,
mating flanges and journalled shafts and
bearings produce flametightness of
enclosure joints
• Dead end (EDS) or through feed (EDSC)
hubs – / " or 1" sizes
3
4
Certifications and
Compliances:
• NEC/CEC
Class I, Division 1 & 2, Groups B*, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
• NEMA/EEMAC: 3, 7B*CD, 9EFG
• UL Standard: 1203
• CSA Standard: C22.2 No. 30
*Seals must be installed within 1 1 / " of each conduit opening in Division 1.
2
462
www.crouse-hinds.com
Standard Materials:
• Bodies – Feraloy
copper-free aluminum (Canada)
• Shafts & bushings – stainless steel
• Sealing enclosures – copper-free
aluminum

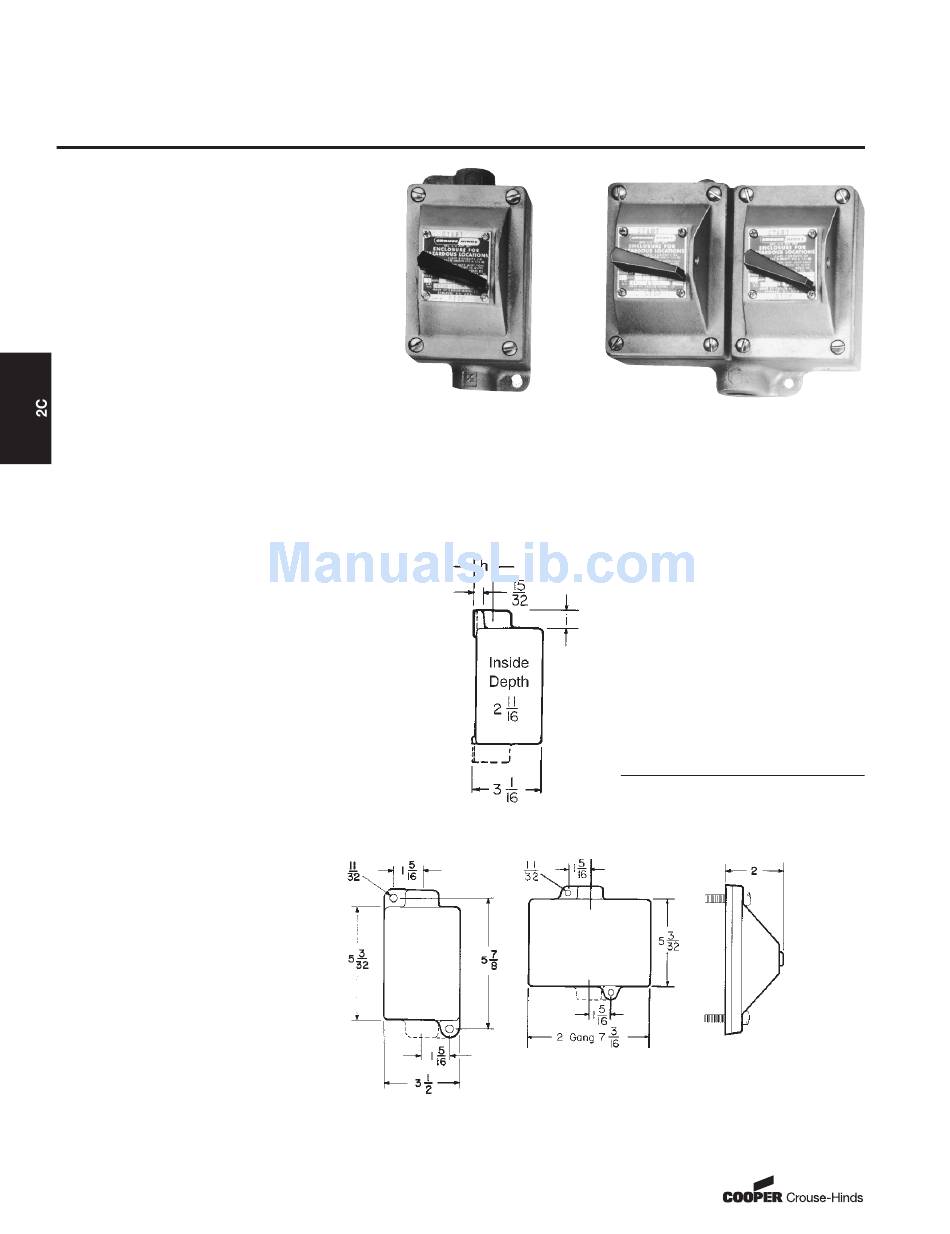

Dimensions
In Inches:
Side View
/ "
1
4
Front View
Single gang
Dimensions are approximate, not for construction purposes.
US: 1-866-764-5454 CAN: 1-800-265-0502
Cl. I, Div. 1 & 2, Groups B*, C, D
Cl. II, Div. 1, Groups E, F, G
Cl. II, Div. 2, Groups F, G
Cl. III
NEMA 3, 7B*CD, 9EFG
EDSC2199
® iron alloy (U.S.);
Copyright © 2010 Cooper Crouse-Hinds
Explosionproof
Dust-Ignitionproof
Raintight
Wet Locations
EDS2299
Standard Finishes:
Feraloy iron alloy – electrogalvanized and
aluminum acrylic paint
• Copper-free aluminum – natural
• Type 6 / 6 nylon – black
• Stainless steel – natural
Options:
Description
For use in Group B hazardous
areas
Bodies and covers (single and two
gang units) – copper-free aluminum
Hub Dim. Dim.
Size "h" "i"
/
3 13 /
4 16
1
15 /
16
Two gang
Surface covers have same
length and width as single &
2 gang bodies.
Suffix
GB*
SA
