OVERVIEW

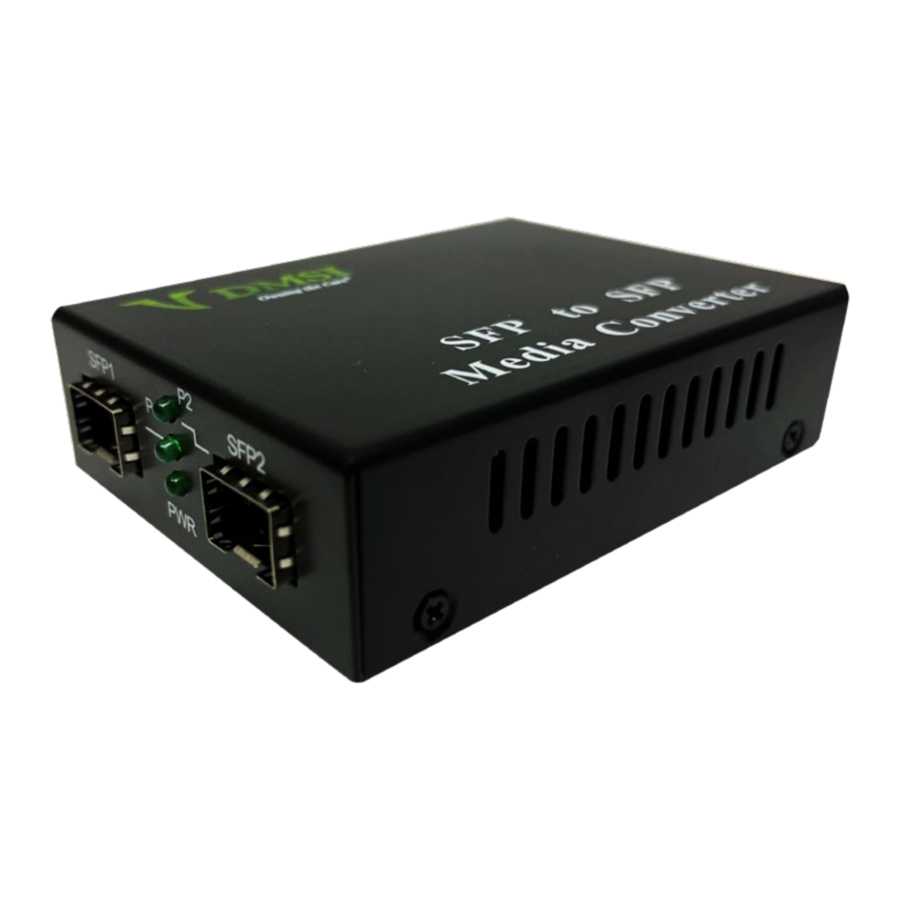

The Fiber to Fiber Media converter is an optical signal device that can be adopted to convert optical digital signals between single-mode / multimode fiber, or extend a multimode network. It is an ideal solution to connect different fiber types, distances, and wavelengths across a variety of network architectures for longer data transmission distances.

This device has 2 fiber ports that can be used to interconnect 2 fiber connections. It is protocol independent to address multiple applications.

This device can be connected to 2 100M fiber modules, or 1000M fiber modules.

LED DESCRIPTION

This device has 3 LED indicators identifying the converter's work situation.

Power	Lit when power is coming up.
FX1 Link	Lit when optical port 1 (FX1) connection is good. Blinks when FX data is transmitting.
FX2 Link	Lit when optical port 2 (FX2) connection is good. Blinks when FX data is transmitting.

INSTALLATION

Please install the fiber media converter according to the following steps:
Connect the fiber patch cord or fiber pigtail to the relevant optical fiber port respectively.
Note: Multimode fiber must be connected to multimode port in fiber media converter and singlemode fiber to single-mode port; otherwise, the fiber can't be connected through.
Connect power adapter's DC plug to the DC socket in the back of the fiber media converter and connect power adapter's AC plug to the power AC socket, then turn on the power. The "power" indicator will light up once it's on. The other two indicators signal the two optical port's condition. If the relevant optical ports are connected to the device correctly, indicator light will be on. All three indicators should have their lights on for the device to work properly.

FIBER PARAMETERS

Max Rate	155M	155M	155M
Fiber Type	Multimode	Multimode / Single-mode	Single-mode / Single-mode
Wavelength	850nm	850nm / 1310nm	1310nm
Distance	2/2km	2/25km	25/25km
Min TX PWR	-20.0dBm	-20dBm / -14dBm	-14dBm
Max TX PWR	-12dBm	-12dBm /-6dBm	-6dBm
Sensitivity	-30.0dBm	-30.0dBm	-31.0dBm
Link Budget	10.0dBm	10.0dBm / 16dBm	17.0dBm

Max Rate	1250M	1250M	1250M
Fiber Type	Multimode	Multimode / Single-mode	Single-mode / Single-mode
Wavelength	850nm	850/1310nm	1310nm
Distance	224m / 550m	0.55/20km	20/20km
Min TX PWR	-12.0dBm	-12dBm / -9dBm	-9dBm
Max TX PWR	-4dBm	-4dBm / 0dBm	0dBm
Sensitivity	-18dBm	-18dBm / -23dBm	-23dBm
Link Budget	6.0dBm	6dBm / 12.0dBm	12.0dBm

TECHNICAL SPECIFICATIONS

Fiber Ports	SC \| FC \| ST \| LC
Transfer Rate	155Mbps \| 1250Mbps
Transfer Distance	100Mbps series	Multimode: 2KM
		Single-mode: 20~120KM
	1000Mbps series	Multimode: 220/550M
		Single-mode: 10~100KM
Operation Mode	Duplex Type	Full Duplex or Half Duplex
	Fiber	Multimode: 50/125μm 62.5/125μm
		Single-mode: 8/125μm 8.3/125μm 9/125μm 10/125μm
Power	AC220V(100~265V), 50Hz; 5VDC
Environmental Parameters	Work Temperature	-10°C ~ 50°C (14°F ~ 122°F)
	Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)
	Humidity	5%~90% non-condensing
Dimensions	26mm(H) x 70mm(W) x 93mm(L)
Warranty	Lifetime
Mean Time Between Failure	114,000 hours
TAA Compliant	Yes

PACKING LIST

Fiber media converter 1pc
Power adapter 1 pc
User's manual 1 pc

Note:

It is normal that the media converter heats up when it's working. To avoid overheating, please keep the work environment dry, ventilated, and cool.
Changes in the shell or outer box color won't affect the product's function.
