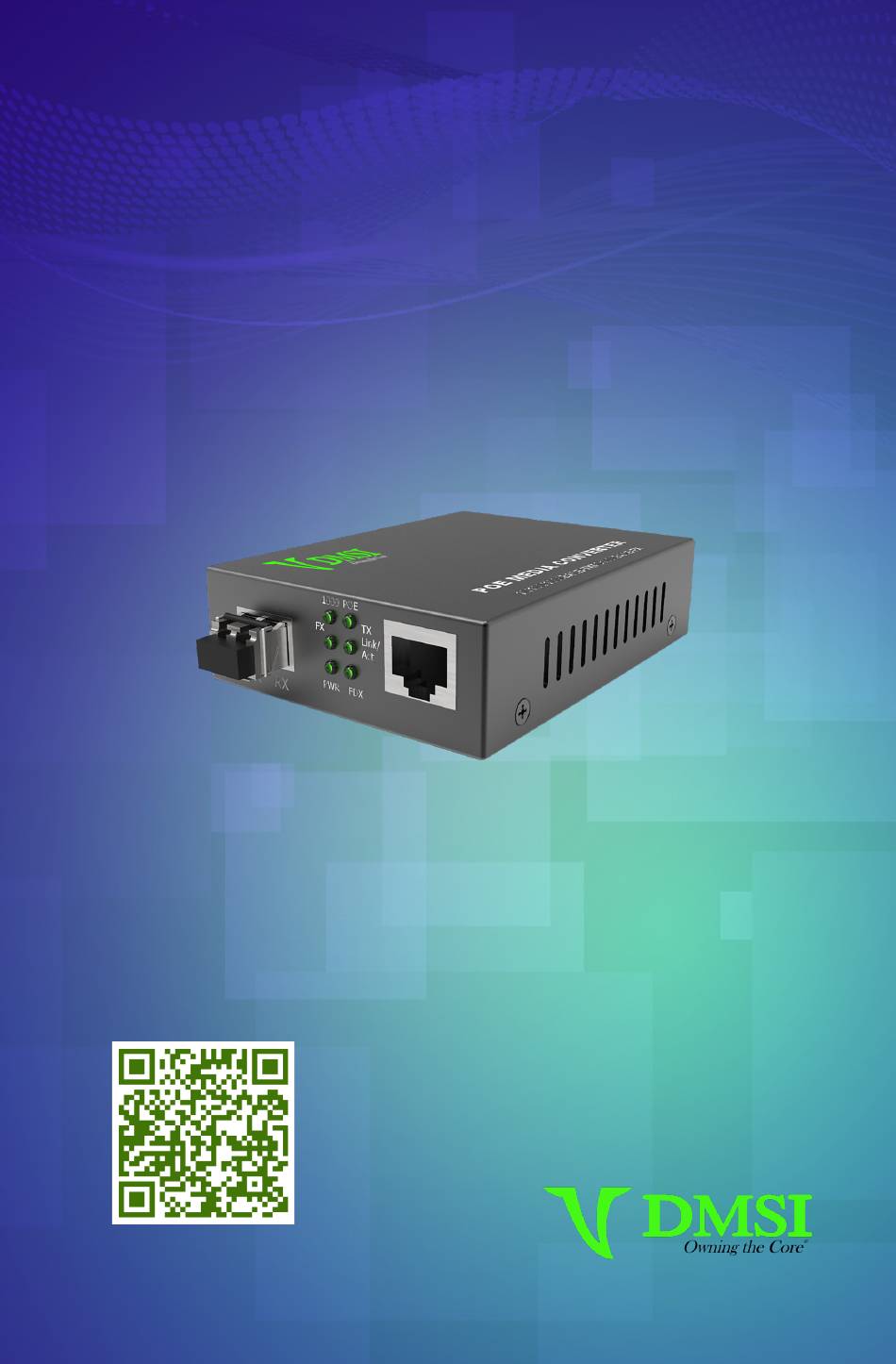

PMF31855
Stand-Alone Gigabit Ethernet
PoE Media Converter
DMSI Media Converter, Power Over Ethernet PoE,
10/100/1000Mbps, RJ45 to Duplex LC SFP,
850nm wavelength, 550 meter distance
You can also find the manual online at:
You can also find the manual online at:
www.dmsimfg.com/PMF31855
www.dmsimfg.com/PMF31855
www.dmsimfg.com
www.dmsimfg.com
Advertisement
Related Manuals for DMSI PMF31855
Summary of Contents for DMSI PMF31855
- Page 1 PMF31855 Stand-Alone Gigabit Ethernet PoE Media Converter DMSI Media Converter, Power Over Ethernet PoE, 10/100/1000Mbps, RJ45 to Duplex LC SFP, 850nm wavelength, 550 meter distance You can also find the manual online at: www.dmsimfg.com/PMF31855 You can also find the manual online at: www.dmsimfg.com/PMF31855...
-
Page 2: Table Of Contents
CONTENT Overview Introduction Cables Specifications Packing List Safety Precaution Hardware Description Front Panel Back Panel Bottom View LED Indicators DIP Switch 7-10 Fiber Port Cabling Network Connection Installation 14-16 Troubleshooting You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com... -
Page 3: Cables
OVERVIEW INTRODUCTION The PMF31855 media converter allows the user to connect fiber to copper to power PoE devices. Product features a UTP RJ45 port, and an SFP port loaded with SFP-MF855. The optical port is customizable with the use of a swappable SFP for single or multimode applications. - Page 4 Cat 5e, 6, 6A UTP or STP cable Fiber Cable Multimode: 50/125, 62. 5/125, 100/140μm Dimension 95mm(L) x 71.5mm(W) x25.4mm(H) Warranty Lifetime Mean Time 114,000 hours Between Failure TAA Compliant You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com...
- Page 5 7.0dBm PACKING LIST 1 - 10/100/1000 PoE Media Conveter 1 - SFP-MF855 1 - QR Code Card (online access to PMF31855 manual) 1 - Power Supply SAFETY PRECAUTION Attention! If DC voltage is supplied by an external circuit, please use a protection device on the power supply input.
-
Page 6: Back Panel
HARDWARE DESCRIPTION FRONT PANEL RJ-45 Port Duplex LC SFP LED Indicators BACK PANEL DIP Switch Power Supply Port You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com... - Page 7 MEDIA CONVERTER Year Month Day Number Type: PoE 10/100/1000M 850nm SFP 1 *RJ45 Power: DC 52V 1.25A PN: PMF31855 20190306XXXX DMSI : 20633 The larger top label on each converter, contains a serial number, description, power information, and part number. The serial number breakdown is provided by year, month, day, and a 4 digit number. Serial numbers can’t repeat as they are tied to specific...
- Page 8 Lit when TP connection is good. Blinks when TP data is transmitting. Power Lit when power is coming up. 1000 Transfer rate of electric interface is 1000Mbps. Lit when PoE is working. You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com...
- Page 9 HARDWARE DESCRIPTION DIP Switch The DIP switch is used to configure operation mode for LLF (Link Loss Forwarding) and operation mode for UTP/Fiber port. The default value of DIP switch is OFF. 1) Stand-by Mode 2) Jumbo Frame You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com...
- Page 10 Payload Size Efficiency Transmitted IPv4 Header TCP Header 1460 byte 1538 byte 94.93% 20 byte 20 byte IPv4 Header TCP Header 8960 byte 1938 byte 99.14% 20 byte 20 byte You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com...
- Page 11 LLR(Link loss return) means when there is a device (Ethernet switch or router) connected to the media converter and the fiber line loses the link, the media converter’s fiber will disconnect the transmit link. You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com...
- Page 12 HARDWARE DESCRIPTION DIP Switch 4) Video Application For Video Applications such as CCTV, Video Streaming, Broadcasting. 5) 100M 100Mbps/For Faster Speed Data Transmission Application, SFP module must also be 100M. You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com...
-
Page 13: Fiber Port
HARDWARE DESCRIPTION Fiber Port PMF31855 uses 850nm wavelength. When you connect the fiber port to another one, please follow the figure below to connect accordingly. Wrong connection will cause the port to work incorrectly. Cable Wiring (LC to LC) Tx A ---------------------------- A Rx Tx B ---------------------------- B Rx You can also find the manual online at: www.dmsimfg.com/PMF31855... -
Page 14: Cabling
5. The cable between the converter and the link partner (converter, switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. Fiber segment using multi-mode connector type must use 50 or 62.5/125μm multi-mode fiber. User can connect two devices up to 550M distance. You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com... - Page 15 NETWORK CONNECTION LC to LC Multimode Fiber up to 550M 10/100/1000 Mbps port (RJ-45 Connector) at switch or end station You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com...
-
Page 16: Installation
NETWORK CONNECTION Installation 1. Prep a fiber optic patch cord for installation into the SFP Port, by cleaning with a lint free wipe, and inspecting the end face for cleanliness. 2. Using an LC 1.25mm cleaning stick, clean the SFP optical port. You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com... - Page 17 NETWORK CONNECTION Installation 3. Plug the fiber patch cord into the SFP port, an audible “click” sound should be heard. The fiber connections must be matched: transmit socket to receive socket. 4. Attach a UTP copper patch cable from the TP network device to the RJ45 port on the Converter. You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com...
- Page 18 Installation 5. Plug the power cord into the converter first then connect to the wall or power outlet. Check if the Power LED lights up. The TX Act and FX Act LEDs will light when all the cable connections are satisfactory. You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com...
- Page 19 If you still cannot resolve the problem, contact your local dealer for assistance at www.dmsimfg.com. 5. If the LED indicators are normal, the connected cables are correct, and the packets still cannot transmit, check your system’s Ethernet devices’ configuration or status. You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com...
- Page 20 Diversified Materials Specialist, Inc (DMSI) 105 Triple Diamond Blvd. Unit 101 Venice, FL 34275 Info@dmsimfg.com 941-244-0935 www.dmsimfg.com You can also find the manual online at: www.dmsimfg.com/PMF31855 You can also find the manual online at: www.dmsimfg.com/PMF31855 www.dmsimfg.com...
