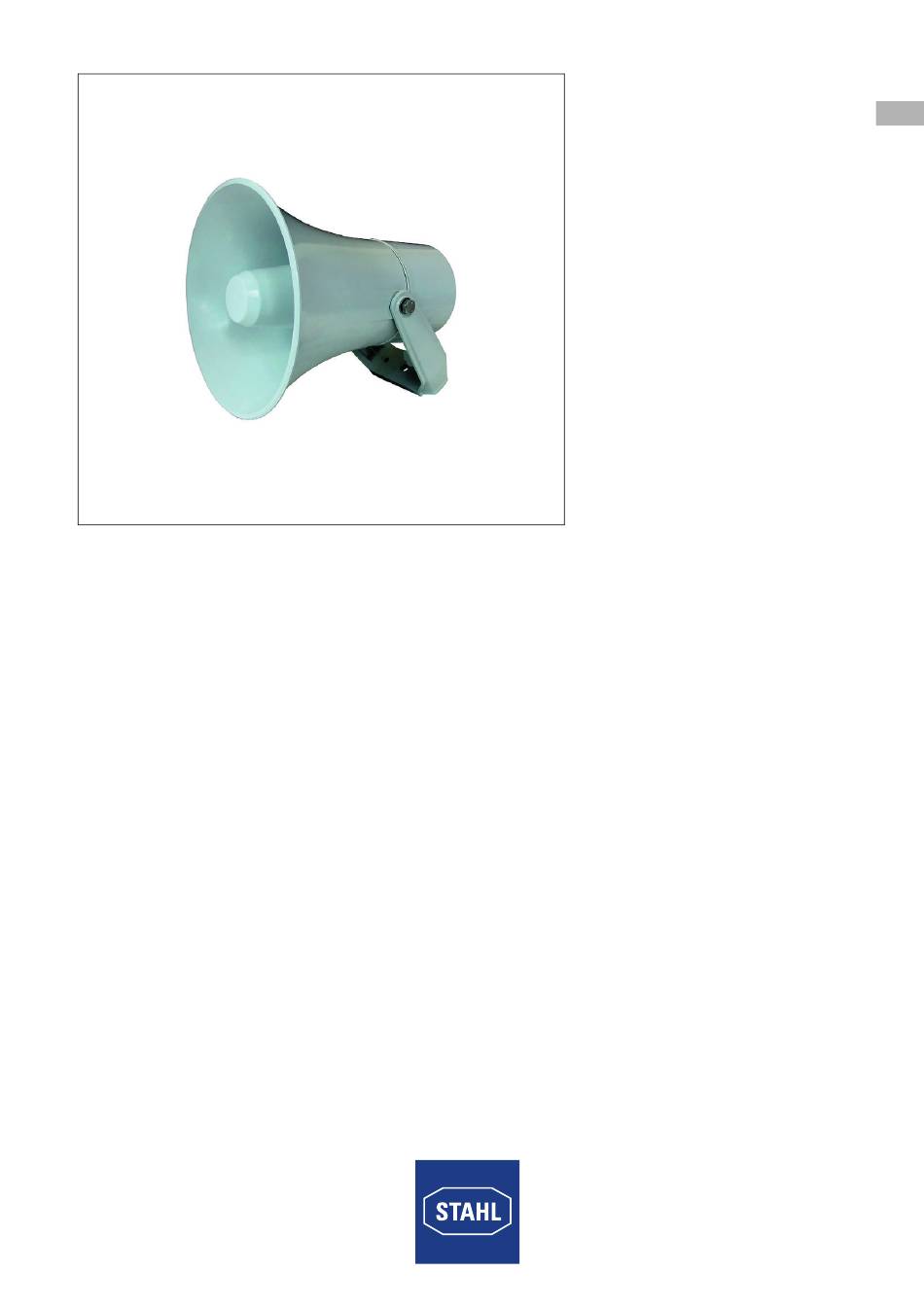

- Page 1 Operating instructions Additional languages www.stahl-ex.com Industrial Horn Loudspeakers Series 8495/12...
- Page 2 Function and device design Function and device design Function Product series 8495 is a public address loudspeaker. The device emits intelligible voice sounds with highlevels of audibility suitable for the transmission of emergency messages. Technical data Technical Data Acoustic data Rated power 15 W Max.
- Page 3 Mounting and installation Technical Data Degree of protection IP66 / IP67 Mounting / Installation Mounting via bracket Connection Screw terminals Mounting and installation Dimensions / fastening dimensions Dimensional Drawings (All Dimensions in mm [inches]) - Subject to Alterations 250 [9,84] 200 [ 7,87] Ø...
- Page 4 Operation Tappings Connector 15 W 7.5 W Low Impedance Version 8 Ω or 20 Ω • Connect conductors up to 4 mm according to wiring diagram 18099E00 Installation, Operation and Maintenance Procedures • Unscrew lid, lead cable through cable gland, connect to terminal (70V or 100V) and select required tapping on transformer.
