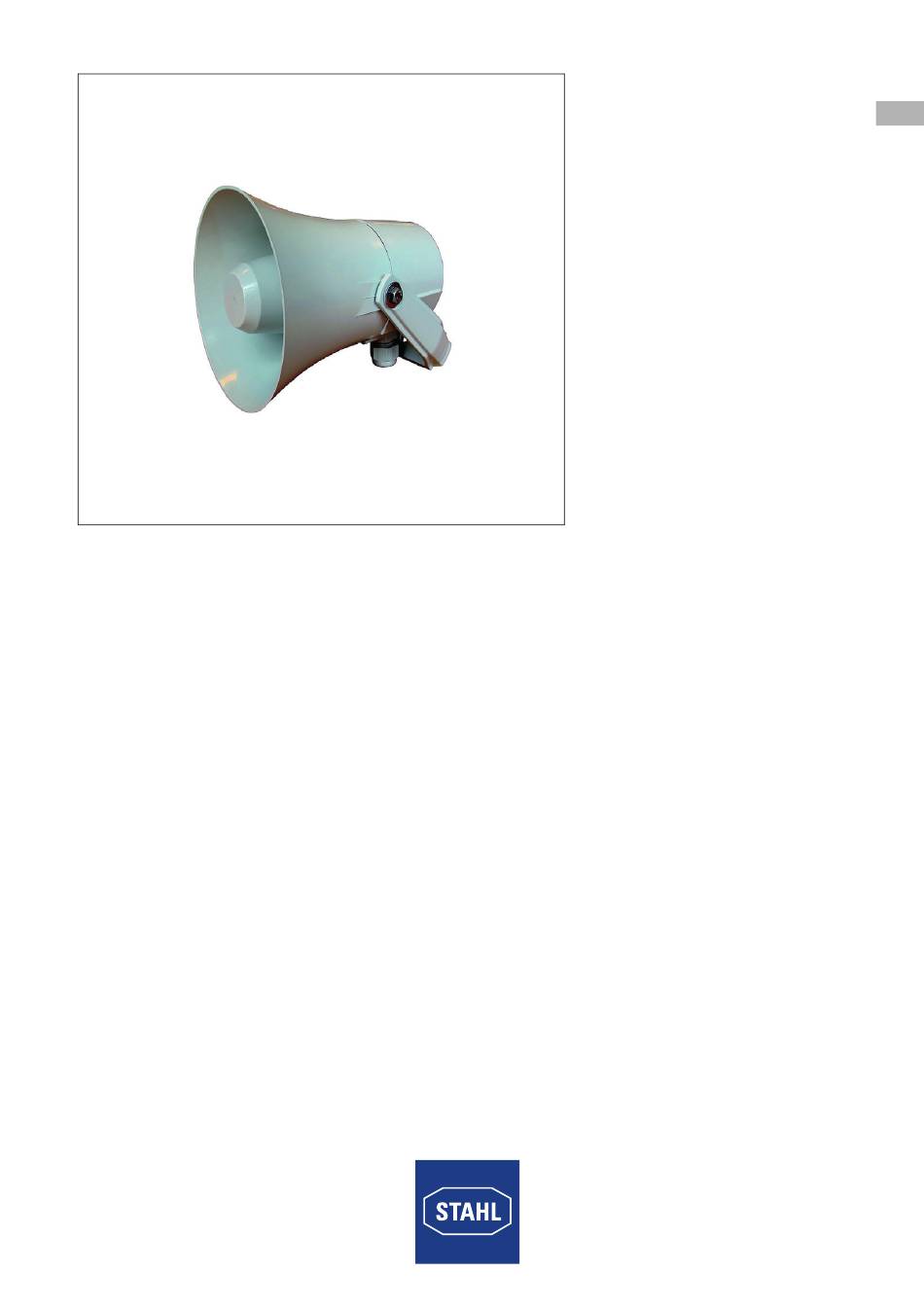

- Page 1 Operating instructions Additional languages www.stahl-ex.com Industrial Horn Loudspeakers Series 8495/11...

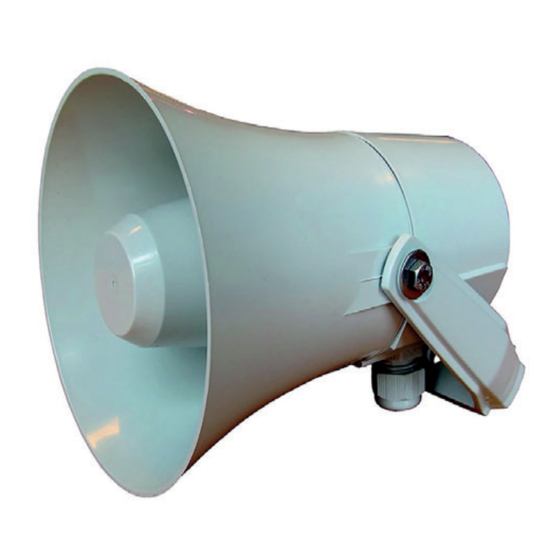

- Page 2 Function and device design Function and device design Function Product series 8495 is a public address loudspeaker. The device emits intelligible voice sounds with highlevels of audibility suitable for the transmission of emergency messages. Technical data Technical Data Acoustic data Rated power 10 W Max.
- Page 3 Mounting and installation Technical Data Mounting / Installation Mounting via bracket Connection Screw terminals Mounting and installation Dimensions / fastening dimensions Dimensional Drawings (All Dimensions in mm [inches]) - Subject to Alterations 200 [7,87] Ø Ø 5,47 30 [1,18] 7 [ 0,28] Ø...
- Page 4 Operation Low Impedance Version 8 Ω or 20 Ω • Connect conductors up to 4 mm according to wiring diagram 18096E00 Installation, Operation and Maintenance Procedures • Unscrew lid, lead cable through cable gland, connect to terminal (70V or 100V) and select required tapping on transformer.
