Installation

Open installation file and unzip to a convenient location, e.g. Desktop/PDUS210

To Start

Run PiezoDrive.exe

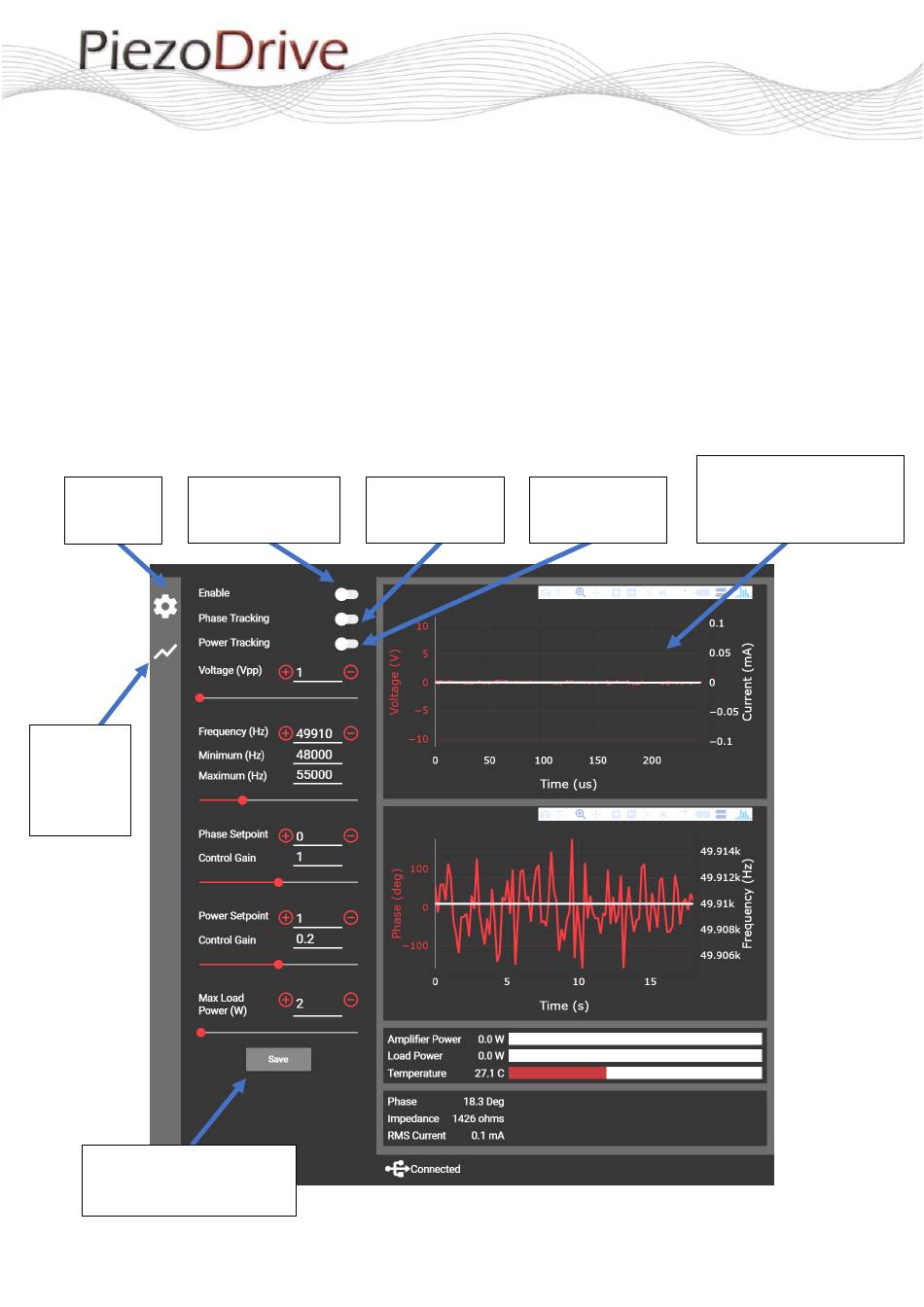

User Interface Overview

Show
Enable/disable
settings
Will reset an
Show
frequency
sweep
mode
Save current settings
to amplifier memory

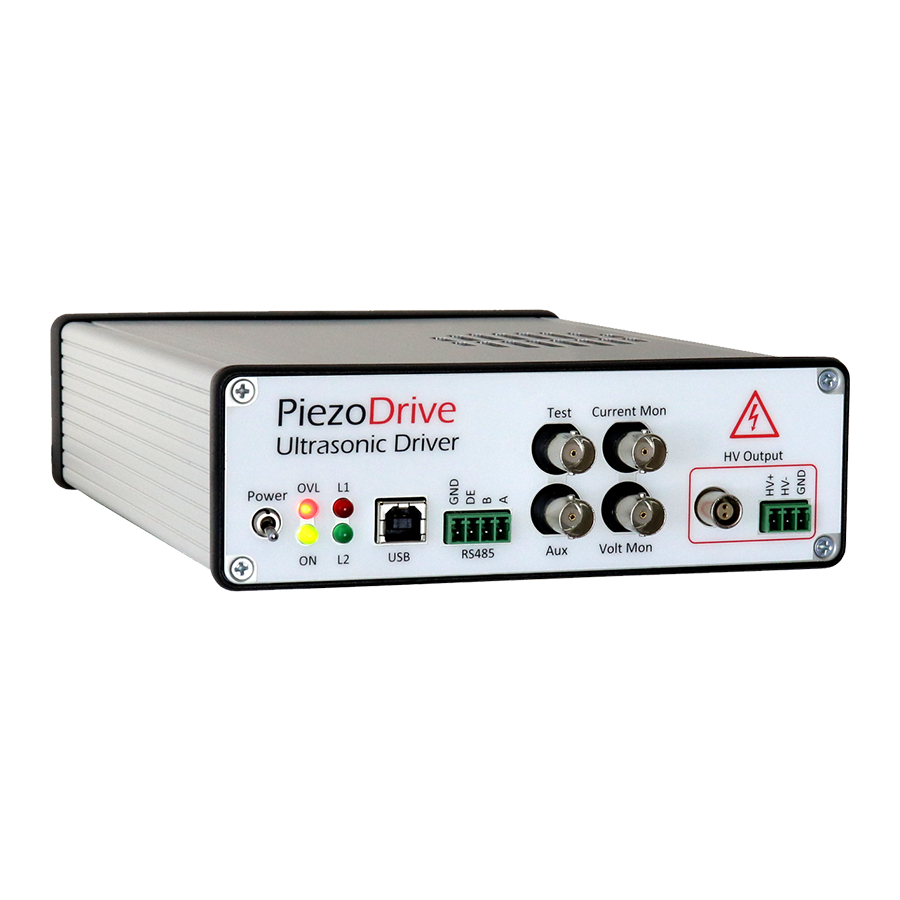

PDUS210 Quick start guide
Enable/disable
amplifier
phase tracking
output.
overload
shutdown.
Enable/disable
waveform plots. Double
Voltage and current
click to auto scale.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDUS210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PiezoDrive PDUS210

  • Page 1 PDUS210 Quick start guide Installation Open installation file and unzip to a convenient location, e.g. Desktop/PDUS210 To Start Run PiezoDrive.exe User Interface Overview Voltage and current Show Enable/disable Enable/disable Enable/disable waveform plots. Double settings amplifier phase tracking power tracking click to auto scale.
  • Page 2 Settings Overview Update firmware. Display Size Requires internet. Latest firmware version available Current firmware version installed on connect amplifier Serial number Version notes...
  • Page 3 Frequency Sweep Overview Phase and impedance frequency response plots. Double click to auto scale. Voltage control Sweep settings Start sweep...
  • Page 4 To Track a Resonance 1) Perform a frequency sweep to identify the resonance of interest  Start with a low voltage, e.g. 1 Vpp  Identify the frequency limits and the desired phase  Increase voltage to improve resolution Enter the tracking settings. In this example, the target resonance (low impedance) is 2) Enter the frequency limits...
  • Page 5 Power Tracking  Successfully track a resonance using phase tracking and manual voltage control  Enter the desired power setpoint  Set the control gain to 0.2, this controls the rate at which the voltage is updated.  Enable power tracking ...
  • Page 6 To Update Firmware  Enter settings mode  Update firmware  Restart amplifier when prompted  Latest compatible firmware will be downloaded and installed  Desktop software and amplifier will restart when complete.
