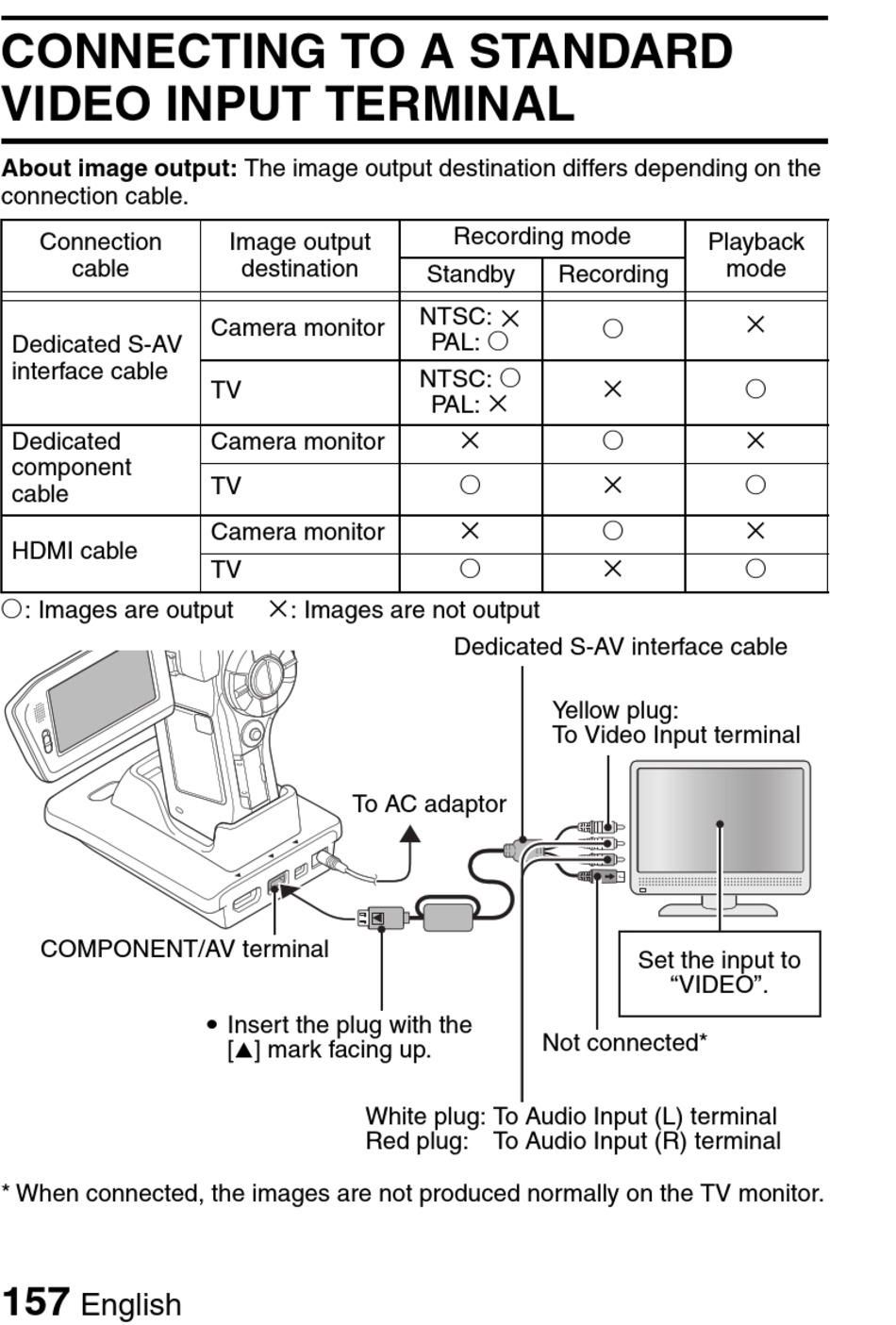

CONNECTING TO A STANDARD
VIDEO INPUT TERMINAL
About image output: The image output destination differs depending on the
connection cable.
Connection
cable
Dedicated S-AV
interface cable
Dedicated
component
cable
HDMI cable
m: Images are output
COMPONENT/AV terminal
* When connected, the images are not produced normally on the TV monitor.
157
English
Image output
destination
Camera monitor
TV
Camera monitor
TV
Camera monitor
TV
n: Images are not output
To AC adaptor
i Insert the plug with the
[n] mark facing up.
White plug: To Audio Input (L) terminal
Red plug: To Audio Input (R) terminal
Recording mode
Standby Recording
NTSC: n
PAL: m
NTSC: m
PAL: n
n
m
n
m
Dedicated S-AV interface cable
Yellow plug:
To Video Input terminal
Not connected*
Playback
mode
n
m
n m
m n
n m
m n
n m
Set the input to
"VIDEO".
