2247 0191/ 1SCC330001M5803

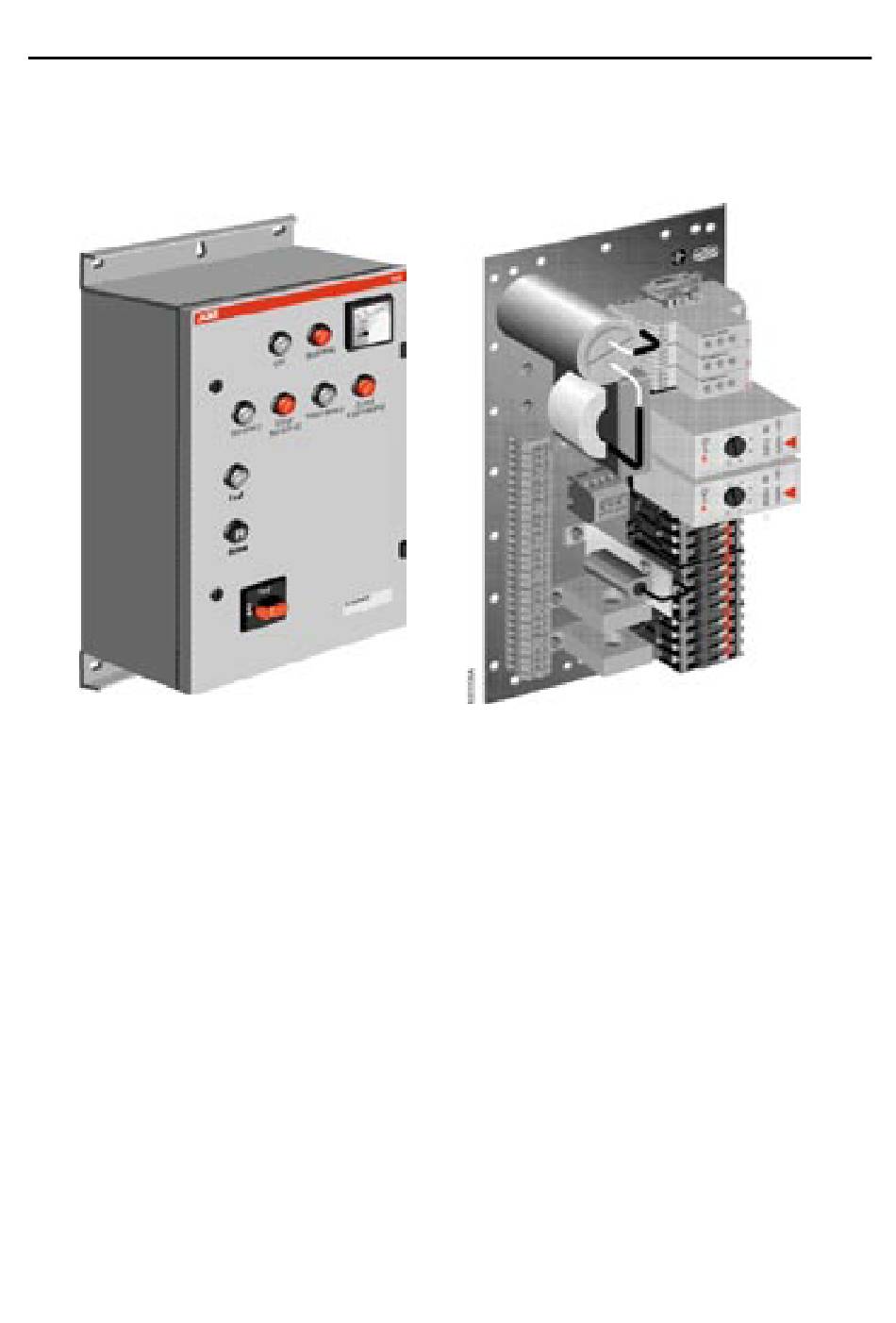

Installation and Operation Instruction for THF Filter and
Protective Unit THF 1_
General guidelines
Due to the fact that most UK building earth circuits are TN-S-systems, special care should be
taken when installing a THF system in this country.
As with all other THF installations, the device should be fitted in the Neutral conductor, however
the following guidelines should be followed:
THF should be installed in the Neutral
conductor at the Transformer Star
Point.
In N- conductor in transformer star
point: Care should be taken to ensure
that no earth/neutral bond exists on the
supply (transformer) side of the filter.
This may result in a bypass situation
causing excessive current to flow via
the system earth.
THF 1S_
In case of installation in N-conductor
of TN-S- system: Prior to installation of
THF, resistance measurements must
be carried out between the downstream
(building) earth & neutral to ensure that
no erroneous earth/neutral connection
exists other than that intended
to achieve a TN-S-system. Such
accidental connection could cause
excessive current to flow in the system
earth.
This Installation and setting instructions
for the THF-1S protection unit and
brochure THF 1 GB and 2 GB should
be followed.
THF
34 THF 1S1 C
THF 1BS_

Advertisement

loading

Summary of Contents for ABB THF Series

  • Page 1 34 THF 1S1 C 2247 0191/ 1SCC330001M5803 Installation and Operation Instruction for THF Filter and Protective Unit THF 1_ THF 1S_ THF 1BS_ General guidelines Due to the fact that most UK building earth circuits are TN-S-systems, special care should be taken when installing a THF system in this country.
  • Page 2 Installation and operation instruction for THF filter and protective unit THF 1_ The function of Protective unit (THF1_) The protective unit shall always be used when the THF is installed in the star point on TN-C- and TN-S-circuits. It can also be used in TN-S-system, when THF is installed in N-conductor. The purpose of the protection unit is: to prevent harmful effects of 150/180Hz •...
  • Page 3 Installation to TN-C-System - THF in the transformer star point The installation shall be done following the local wiring rules suggesting to work all power off. Prior to installation of THF in the transformer star- point between point A and B following measures must be taken.
  • Page 4 Installation to TN-S-System - THF in the N-conductor The installation shall be done following the local wiring rules suggesting to work all power off. Prior to installation of THF on N –conductor between point A and B following measures must be taken. 1.
  • Page 5 Installation to TN-S-System – THF in the transformer star point The installation shall be done following the local wiring rules suggesting to work all power off. Prior to installation of THF in the transformer star-point between point A and B following measures must be taken.
  • Page 6 Installation to TN-C-S-System The installation shall be done following the local wiring rules suggesting to work all power off. Prior to installation of THF on PEN−conductor between point A and B following measures must be taken. THF in the transformer star point - Recommended connecting point In PEN- conductor in transformer •...
  • Page 7 Installation to TN-C-S THF in N-conductor of the TN-S- part The installation shall be done following the local wiring rules suggesting to work all power off. Prior to installation of THF on N –conductor between point A and B following measures must be taken. Prior to installation of THF in N-conductor of one of the TN-S- parts, resistance measurements...
  • Page 8 Before the connection to the network 1. Check that the connection have been made properly. 2. Check that no foreign parts are left during installation in the units. 3. Ensure the following values are set in the protective unit (see table). 4.
  • Page 9 - If the protective unit is activated again the reason has not been sorted out. 4. The indicator light functions in Test-actions Note! In all other indicator light combinations, by-pass a THF-unit manually, by connecting INPUT- and OUTPUT- terminals! Contact to a local ABB representative!
  • Page 10 1,2Nm 0,8Nm...
  • Page 11 0,8Nm 1,2Nm...
  • Page 12 THF 1BS_ THF 1S_ ABB Oy Low Voltage Products P.O. Box 622 Telephone +358 10 224 000 FIN-65101Vaasa Telefax +358 10 224 5708 Finland Tarkasti: Hyväksyi: Teki: 04-11-17 K Kimpimäki Checked: Approved: Prepared:...
