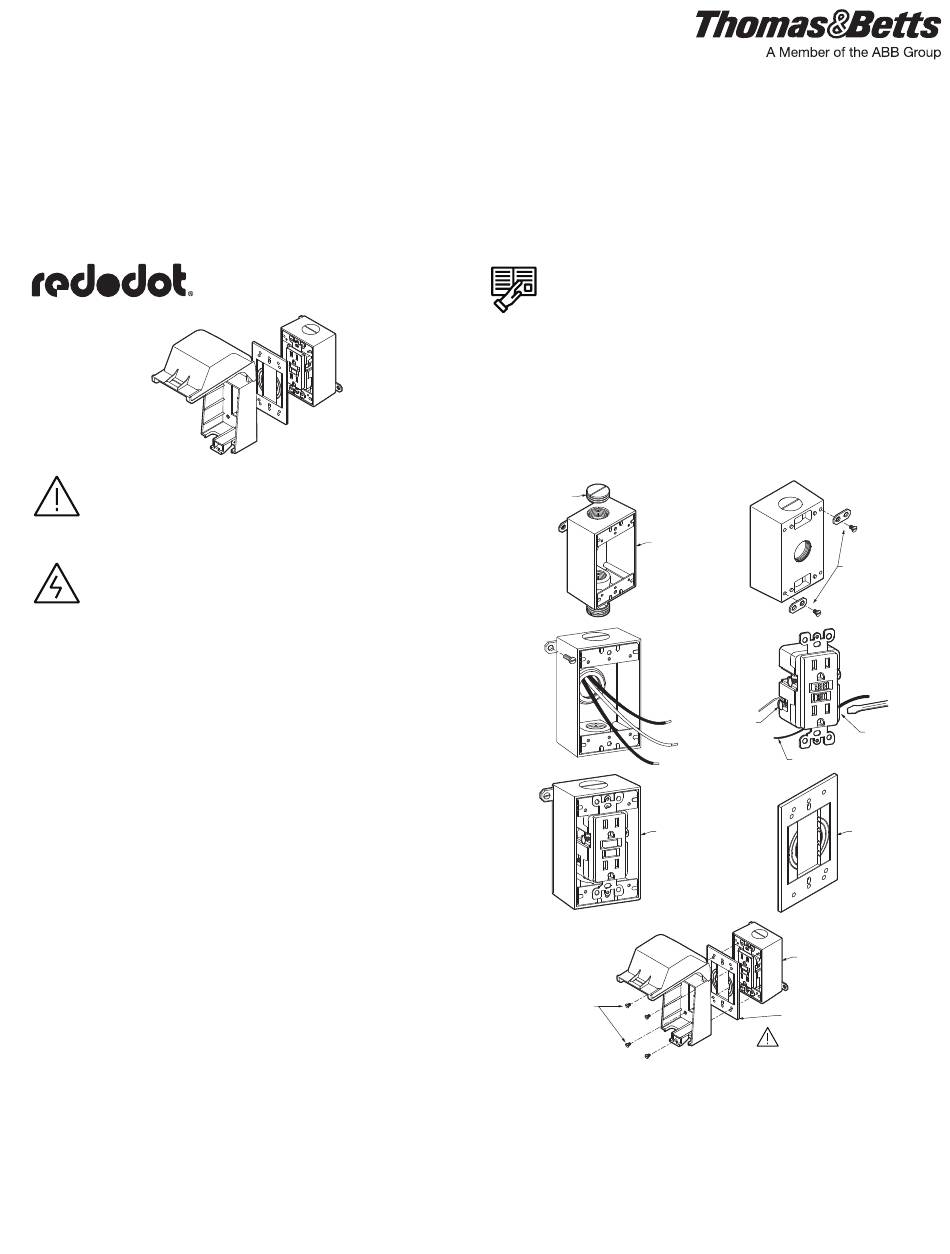

ABB Thomas&Betts CSMGV Installation Instructions

1 of 4
I NSTALL ATION INSTRU CT IONS - ENG LI SH
Metallic weatherproof kit
Catalog numbers: CSMGV, CSMGV-NR and S355E
Caution:
• Product should be installed by a qualified
electrician in accordance with national and local
electrical codes.
Warning:
• Risk of shock, disconnect power before
installation.
Instructions:
Note: In most cases, the supply wiring will be fed through the round opening
in the back of the box.
1. Before mounting box, close any unused openings with round threaded
plugs. Coat threads liberally with silicone sealing compound. Insert into
unused openings and tighten firmly (Figure 1).
2. Select two of the four small holes in the back of the box that best suit your
installation and attach the mounting lugs using the 1/4" long screws. For
most applications, lugs will be mounted diagonally from each other
(Figure 2).
3. Feed the supply wires into the box (Figure 3). Attach the box to the surface
using 1" long screws (not supplied).
4. Attach the supply wires to the screw terminals on the wiring device (GFCI)
by wrapping the wire clockwise around the screw and tightening the screw
using a screwdriver. Attach ground wire to the green screw terminal. Attach
white supply wire to the silver screw terminal, and the black supply wire to
the brass screw terminal (Figure 4).
5. Push all wiring into the outlet box. Then attach the receptacle to the box
installing the screws provided through the elongated slots (Figure 5).
6. Remove the center section of the rectangular gasket (Figure 6).
7. Place the gasket on the back of the cover plate. Insert the mounting screws
through the hole in the cover plate and gasket. Align the mounting screws
with the holes in the box. Attach the cover plate to the box (Figure 7).
8. Cover plate must be attached with hinge facing up.
9. Cover must be closed while in use to be in compliance with the standards of
the National Electrical Code®.
10. Lift the cover up to unlock and then pull out and up to open the cover.
Important
Read and understand all instructions and
safety information before use. Be aware
of proper usage and potential hazards.
Plug
Box
Figure 1
Figure 3
Box
Figure 5
Mounting screws
Figure 7
TA02874 F
Mounting lugs
and screws
Figure 2
Silver
Brass
screw
screw
Figure 4
Ground Wire
Gasket
Figure 6
Box
Gasket
Caution:
Gasket must be installed.
