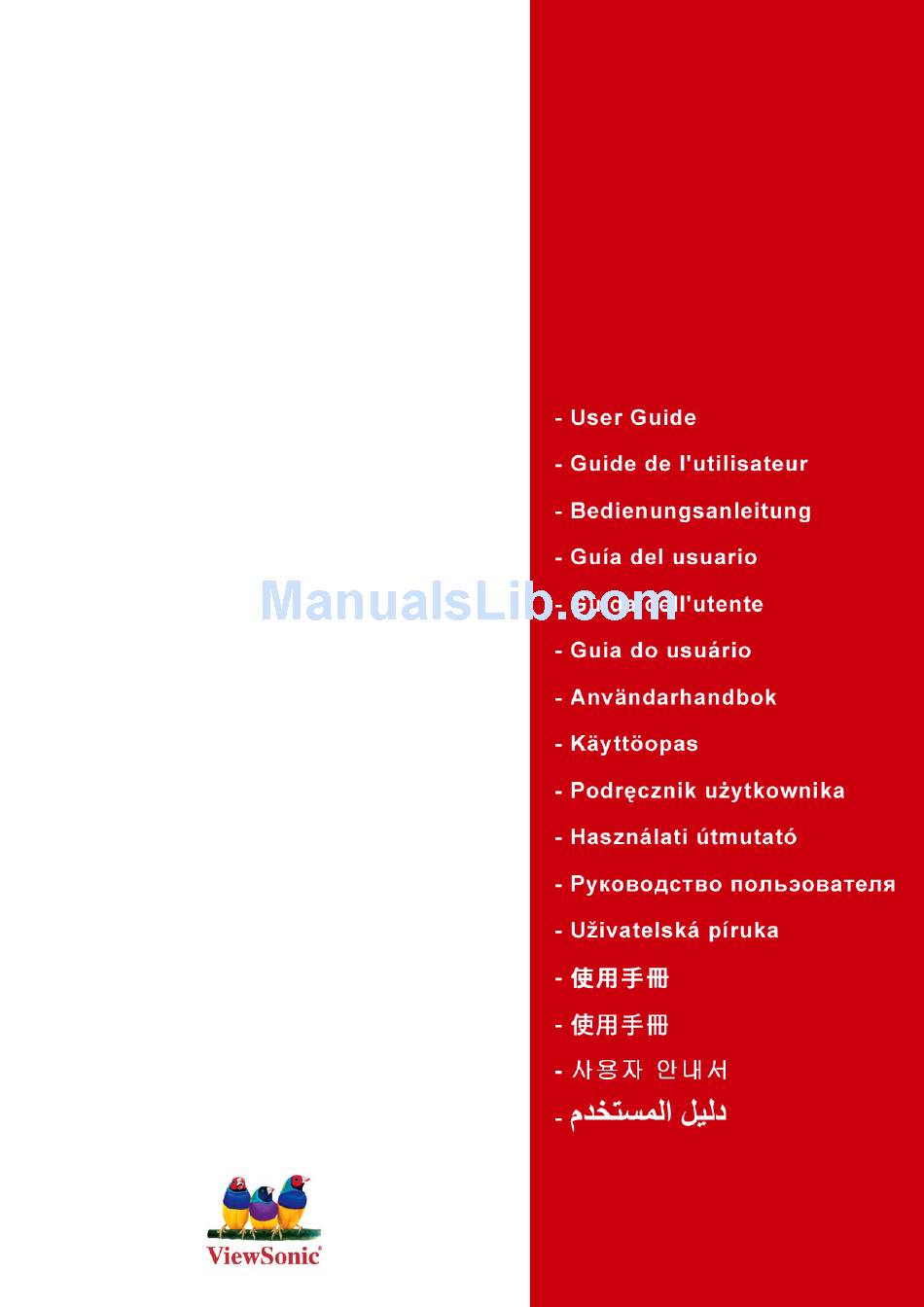

- Page 1 ® ViewSonic VP2330wb LCD Display...
-
Page 2: Table Of Contents
OSD and Power Lock Settings ... 8 Adjusting the Screen Image ... 9 Main Menu Controls ... 10 Other Information Specifications ... 15 Troubleshooting... 16 Customer Support ... 17 Cleaning the LCD Display ... 18 Limited Warranty ... 19 ViewSonic VP2330wb... -
Page 3: Tco Information
The length of time to reactivate the system unit shall be reasonable for the user. Labelled products must meet strict environmental demands, for example, in respect of the reduction of electrical and magnetical fields as well as work load and visual ergonomics. ViewSonic VP2330wb... - Page 4 TCO Development aims at restricting the use of lead. * Bio-accumulative is defined as substances which accumulate in living organisms. **Lead, Cadmium and Mercury are heavy metals which are bio-accumulative. ViewSonic VP2330wb...
-
Page 5: Compliance Information
92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.” User Information for all Countries Notice: Use the cables which are included with the unit or specified. ViewSonic VP2330wb... -
Page 6: Important Safety Instructions
ViewSonic VP2330wb... -
Page 7: Copyright Information
® NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 8: Getting Started
NOTE: The CD includes the User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both the INF and ICM files. -
Page 9: Quick Installation
NOTE: Windows users may receive a message asking them to install the INF file. This is on the CD. 4. Insert the ViewSonic Wizard CD into the computer’s CD drive. Follow the on-screen instructions. If your computer does not have a CD-ROM drive, see “Customer Support”... -
Page 10: Landscape/Portrait Modes
Perfect Suite software included with your LCD display. Perfect Suite software is compatible with most PCI and AGP graphics (video) cards. For information about compatible graphics cards and approved hardware configurations, go to the ViewSonic website, http:// www.viewsonic.com Portrait... -
Page 11: Wall Mounting (Optional)
Wall Mounting (Optional) To obtain a wall-mounting kit, contact ViewSonic instructions that come with the base mounting kit. To convert your LCD display from a desk- mounted to a wall-mounted display, do the following: ViewSonic VP2330wb or your local dealer. Refer to the ®... -
Page 12: Using The Lcd Display
LCD display’s power will automatically turn ON when power is restored. • Power Button Unlock: Press and hold [1] and the down arrow ViewSonic VP2330wb for 10 seconds. If any buttons are again for 10 seconds. -
Page 13: Adjusting The Screen Image
The OSD controls are explained at the top of the next page and are defined in “Main Menu Controls” on page 11. Displays the Main Menu or exits the control screen and saves adjustments. ViewSonic VP2330wb Main Menu with OSD controls Front Control Panel shown below in detail Scrolls through menu options and adjusts the displayed control. - Page 14 • If necessary, make small adjustments using H. POSITION and V. POSITION until the screen image is completely visible. (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD display.) ViewSonic VP2330wb...
-
Page 15: Main Menu Controls
Color Adjust provides several color adjustment modes, including preset color temperatures and a User Color mode which allows independent adjustment of red (R), green (G), and blue (B). The factory setting for this product is 6500K (6500 Kelvin). ViewSonic VP2330wb... - Page 16 URL. See your graphics card’s user guide for ® instructions on changing the resolution and refresh rate (vertical frequency). NOTE: VESA 1920 x 1200 @ 60Hz (recommended) means that the resolution is 1920 x 1200 and the refresh rate is 60 Hertz. ViewSonic VP2330wb...
- Page 17 1. Fill All adjusts the video signal to fill the screen. 2. Fill Aspect Ratio maintains the correct video signal proportions for different resolutions. 3. 1:1 adjusts the video signal so that the height and width of the picture are the same. ViewSonic VP2330wb...
- Page 18 Memory Recall returns the adjustments back to factory settings if the display is operating in a factory Preset Timing Mode listed in the Specifications of this manual. Exception: This control does not affect changes made with the User Color control, Language Select or Power Lock setting. ViewSonic VP2330wb...
-
Page 19: Other Information
Preset Timing Mode (pre-adjusted to VESA Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. Macintosh computers older than G3 require a ViewSonic ViewSonic. ViewSonic VP2330wb 23”... -
Page 20: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic Control buttons do not work • Press only one button at a time. -
Page 21: Customer Support
Zealand Singapore, Southeast www.viewsonic.com.sg/support/ Asia, and India South Africa and other www.viewsonic.com countries Hong Kong www.hk.viewsonic.com/support/ T= +852 3102 2900 Macau www.hk.viewsonic.com/support/ T= +853 700 303 Korean www.viewsonic.com ViewSonic VP2330wb T = Telephone Email F = FAX T= (800) 688 6688 service.us@viewsonic.com... -
Page 22: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. • ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol- based cleaners. ViewSonic VP2330wb... -
Page 23: Limited Warranty
ViewSonic warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
