GEYA GRT8-X1 Instruction Manual

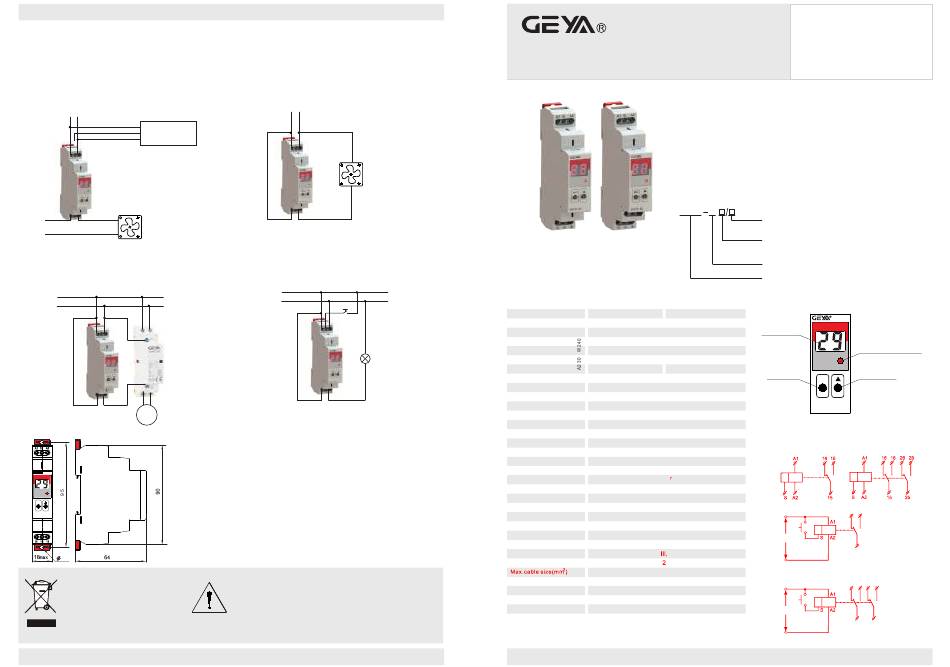

Examples

NOTE: the use case is for reference only to understand the working principle of the relay. The actual application should be wired
according to the actual needs.
CASE1:
The working mode is set to 07 and accessed through the
sensor (PNP). When the sensor senses the signal, the relay
acts (15-18 is closed) and the ventilation fan works. When the
sensor loses the signal, the relay disconnects after a delay t
(15-18 is disconnected) and the ventilation fan stops working.
2 4V 0V
Brown
Black Sensor（PNP）
Blue
~
Fan
AC220V
~
CASE 3:
When the working mode is set to 02, the time relay is powered
on (15-18 is closed), the contactor is closed, the water pump
starts to work, the delay t reaches, the relay is disconnected
(15-18 is disconnected), the contactor is disconnected, and the
water pump stops working.
~
AC220V
~
P UMP
Dimensions(mm)
R
MD
GRT8-X1
4.2

Disposal of Electrical Waste

All electrical waste should be
disposed of in compliance with
current WEEE regulations.
CASE 2:
The working mode is set to 03, the ventilation fan is turned on
for 10 hours and turned off for 1 hour, and the ventilation fan
is cycled on and off.
AC220V
~ ~
Fan
CASE 4:
The working mode is set to 08, press the trigger button, the time
relay acts (15-18 is closed), turn on the LED, delays t, the relay
is disconnected (15-18 is disconnected), and the LED is closed.
~
AC220V
~
Trigger button
LED
Caution
The products must be installed by qualified electricians. All and
any electrical connections of the time relay shall comply with
the appropriate safety standards.
http: / / www.geya.net
-4-
Digital display time relay
Instruction Manual

General

■Applications

-Multifunctional time relay can be used for industrial equipment, lighting control,
heating element control, motor, fan control.
-With 20 delay modes, the delay range covers 0.1 seconds to 99 days.

■Function Features

-20 delay modes:
-Ultra wide delay range, 0.1 seconds - 99 days can be set.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

■Model and connotation

GRT8

Technical parameters

GRT8-X1
Function 20 functions
Supply terminals A1-A2
Voltage range AC/DC 12-240V(50-60Hz)
Burden
AC 0.09-3VA/DC 0.05-1.7W
Voltage range AC 230V(50-60Hz)
Power input AC max.6VA/1.3W AC max.6VA/1.9W
Supply voltage tolerance -15%;+10%
0.1s-99day,ON,OFF
Time ranges
Time setting Key setting
Time deviation
≤1%
Repeat accuracy 0.2%-set value stability
Temperature coefficient 0.05%/℃,at=20℃(0.05%℉，at=68℉)
Output
1×SPDT
1×16A(AC1)
Current rating
Switching voltage 250VAC/24VDC
Min.breaking capacity DC 500mW
red LED
Output indication
1×10
Mechanical life
Electrical life(AC1) 1×10 5
Reset time max.200ms
Operating temperature -20℃ to
+55℃（-4℉
to
131℉）
-35℃ to
+75℃（-22℉
to
158℉）
Storage temperature
Mounting/DIN rail Din rail EN/IEC 60715
Protection degree IP40 for front panel/IP20 terminals
Operating position any
Overvoltage cathegory
Pollution degree
solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12)
Dimensions 90×18×64mm
Weight 1×SPDT:W240-62g,A230-60g
2×SPDT:W240-82g,A230-81g
Standards EN 61812-1,IEC60947-5-1
GEYA ELECTRICAL CO.,LTD
Add:Wenzhou Brige Industrial Zone,Beibaixiang Town,
Yueqing,Zhejiang,China 325603
Tel:0086-577-62711079
Fax:0086-577-62711751
Mobile:0086-13567770207
E-mail:sale@cnyeya.com
Web:www.geya.net
-5 delay modes controlled by power supply
-13 delay modes controlled by signal
-ON, OFF mode
X
Rated control supply voltage
A230:AC230V ;
W240:AC/DC12V-240V;
Number of contacts
1:1×SPDT;
2:2×SPDT;
Digital Setting Time Relay
GRT8 Series

Panel Diagram

GRT8-X2
Digital display
Output indication(red)
R
Button (Set) Button (UP)
MD
GRT8-X1
2×SPDT
Wiring diagram
2×16A(AC1)
16 18
Un
15
16 18 26 28
Un
15
-1-
28
25
