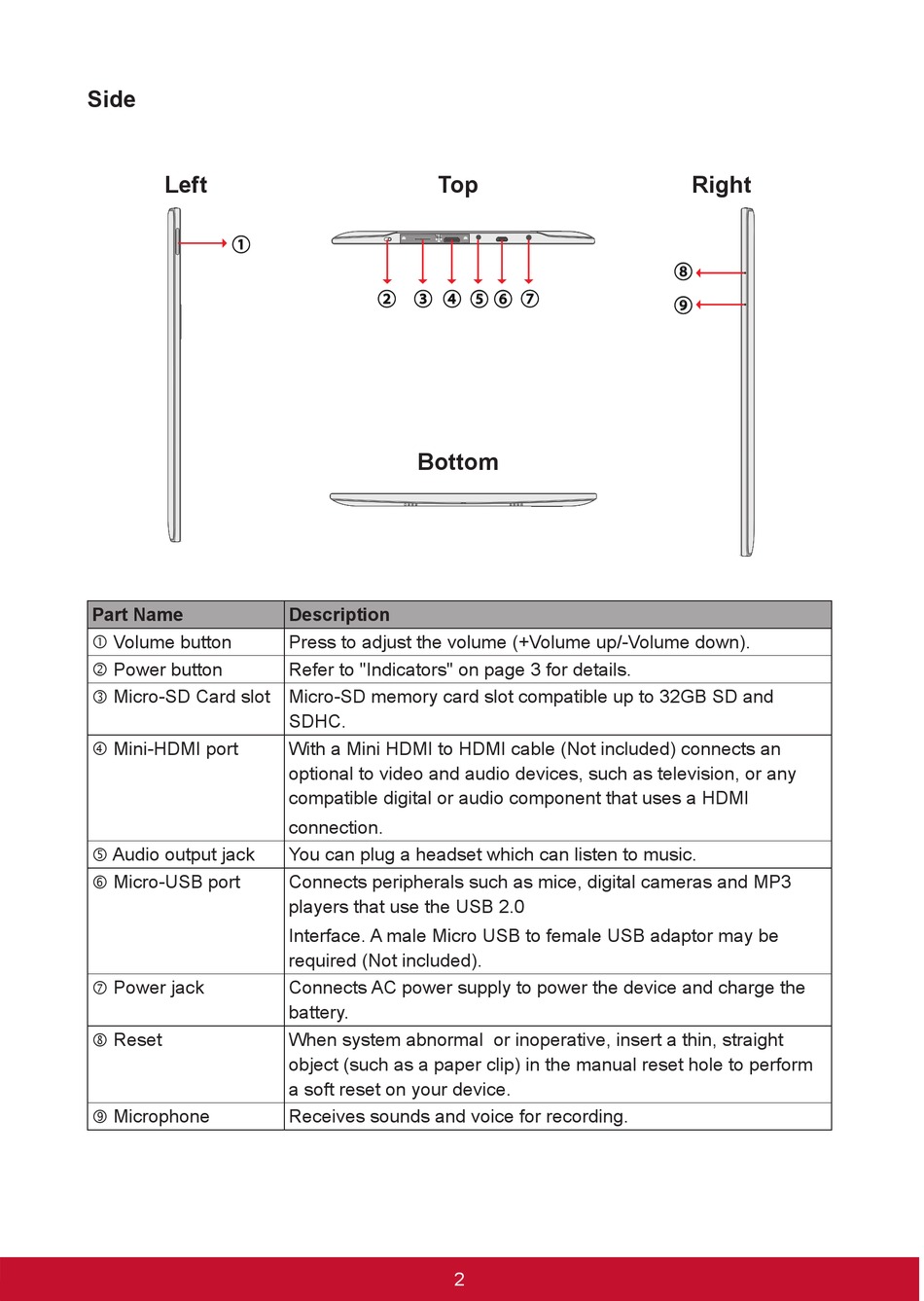

Side
Left
①
Part Name
 Volume button
 Power button
 Micro-SD Card slot Micro-SD memory card slot compatible up to 32GB SD and
 Mini-HDMI port
 Audio output jack
 Micro-USB port
 Power jack
 Reset
 Microphone
Top
② ③ ④ ⑤ ⑥ ⑦
Bottom
Description
Press to adjust the volume (+Volume up/-Volume down).
Refer to "Indicators" on page 3 for details.
SDHC.
With a Mini HDMI to HDMI cable (Not included) connects an
optional to video and audio devices, such as television, or any
compatible digital or audio component that uses a HDMI
connection.
You can plug a headset which can listen to music.
Connects peripherals such as mice, digital cameras and MP3
players that use the USB 2.0
Interface. A male Micro USB to female USB adaptor may be
required (Not included).
Connects AC power supply to power the device and charge the
battery.
When system abnormal or inoperative, insert a thin, straight
object (such as a paper clip) in the manual reset hole to perform
a soft reset on your device.
Receives sounds and voice for recording.
2
Right
⑧
⑨
