Amphenol Socapex RJSMLAC 8MG CAPS Hardware User Manual

Ip67/68 rugged ethernet managed switch
Hide thumbs Also See for RJSMLAC 8MG CAPS:
Table of Contents

Advertisement

Quick Links

Download this manual
RJ-Switch
Contents
This manual applies to the following products:
•
RJSMLAC 8MG CAPS (OPTIONS)
•
RJSMLAC 8MG CAPS VAC (NAV) (OPTIONS)

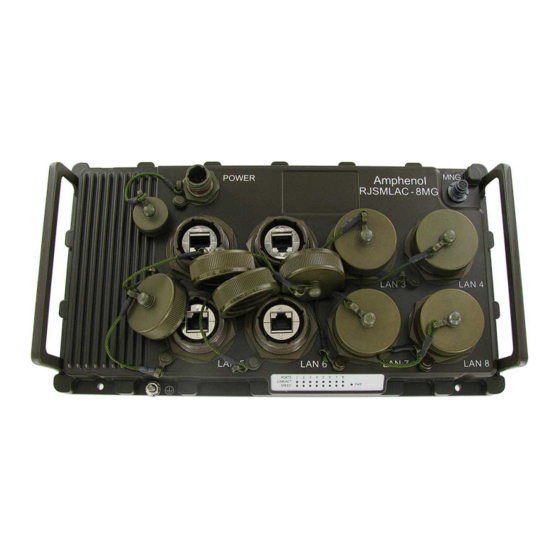

Rugged IP67/68 Managed Ethernet Switch, with RJFTV reinforced 38999 connectors
Revision
Date
1
2012 November, 7
2
2013 January
2.1
2013 July
2.2
2014 December
3
2015 December
3.1
2016 December, 7
4.0
2022 January, 6
RJSMLAC 8MG CAPS UM
Section 1
General Information
Section 2
Hardware
Section 3
Installation
Section 4
Wiring
Section 5
Management
Section 6
Features Overview
Section 7
Service Information
Modifications
Initial document
Revised Warranty information
Added connector P/N for console port
Added connector rear view for console port
Added version VAC (AC powered model)
Detailed NAV option for involved products
/ no change in the content /
Updated Performance specifications
Updated Power plug wiring
www.amphenol-socapex.com
IP67/68 rugged Ethernet Managed Switch
RJSMLAC 8MG CAPS (options)
- Hardware User Manual -
(18-32 VDC powered)
(90-265 VAC, 47-63 Hz)
Rev: 4.0
Page 3
Page 4
Page 5
Page 7
Page 10
Page 11
Page 13
Page 1 of 13
Tel : +33(0)4.50.89.28.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RJSMLAC 8MG CAPS and is the answer not in the manual?

Questions and answers

Related Manuals for Amphenol Socapex RJSMLAC 8MG CAPS

Summary of Contents for Amphenol Socapex RJSMLAC 8MG CAPS

  • Page 1 Service Information This manual applies to the following products: • RJSMLAC 8MG CAPS (OPTIONS) (18-32 VDC powered) • RJSMLAC 8MG CAPS VAC (NAV) (OPTIONS) (90-265 VAC, 47-63 Hz) Rugged IP67/68 Managed Ethernet Switch, with RJFTV reinforced 38999 connectors Revision Date Modifications...
  • Page 2 AMPHENOL SOCAPEX GENERAL CONDITIONS OF SALE (Effective as at 28th/09/2020) (EXTRACT) ARTICLE 11: GUARANTEE - LIABILITY 11.1. Products shall benefit from a legal guarantee of one year following the date of delivery in accordance with the terms and conditions indicated hereunder.

  • Page 3: General Information

    MIL standards Electromagnetic MIL-STD-461E: CE102, CS114, CS115, CS116, RE102, RS103 MIL-STD-461F: RE101, RS101 Operating Temp. -35ºC to +75ºC (-31ºF to +167ºF) – Cold Start-Up Waterproof IP67/68 RJSMLAC 8MG CAPS UM Rev: 4.0 Page 3 of 13 www.amphenol-socapex.com Tel : +33(0)4.50.89.28.00...

  • Page 4: Front Panel Display

    Link / Activity (Off – there is no link, Steady Green – There is a device connected, Flashing Green – there is data transmission) • Speed (Green for 1000Mbps, Off for 10 or 100Mbps) RJSMLAC 8MG CAPS UM Rev: 4.0 Page 4 of 13 www.amphenol-socapex.com...

  • Page 5: Selecting A Site

    Ethernet and power cables. The RJSMLAC-8MG-CAPS weights 1.8 Kg and is mounted via its four 4x4.5 mm holes for screws. The external dimensions of the RJSMLAC-8MG-CAPS are given here after. RJSMLAC 8MG CAPS UM Rev: 4.0 Page 5 of 13 www.amphenol-socapex.com...
  • Page 6 RJSMLAC 8MG CAPS UM Rev: 4.0 Page 6 of 13 www.amphenol-socapex.com Tel : +33(0)4.50.89.28.00...
  • Page 7 Input voltage: 90-265 VAC, 47-63 Hz Contact Signal Suggested Harness Color Table LINE NEUTRAL blue yellow/green Tooling The plugs are using crimp contacts. We suggest using hereunder tooling. RJSMLAC 8MG CAPS UM Rev: 4.0 Page 7 of 13 www.amphenol-socapex.com Tel : +33(0)4.50.89.28.00...
  • Page 8 Part number of the plug to be used: RJF TV 6 M G. This plug may be assembled with 4 different coding. Use the coding A to make your assembly. For more details, please consult: http://www.rjfield.com RJSMLAC 8MG CAPS UM Rev: 4.0 Page 8 of 13 www.amphenol-socapex.com...
  • Page 9 Coding A Plug Receptacle Ethernet RJ45 Most standard Ethernet cordsets follow one of the TIA-568 guideline given hereafter. pins position RJSMLAC 8MG CAPS UM Rev: 4.0 Page 9 of 13 www.amphenol-socapex.com Tel : +33(0)4.50.89.28.00...

  • Page 10: Web Management

    Rear view of the SCE2 L1K 06 07 PN  Consult the dedicated CE Services CLI User Manual for getting all details regarding the commands description. RJSMLAC 8MG CAPS UM Rev: 4.0 Page 10 of 13 www.amphenol-socapex.com Tel : +33(0)4.50.89.28.00...

  • Page 11: Features Overview

    Port Protection: 1+1 port protection, 1:1 port protection, 1:N port protection • G.8032 ring protection • DHCP option 82 relay • L2CP tunnelling • Protocol-based VLAN • 1588v2 PTP with two-step clock RJSMLAC 8MG CAPS UM Rev: 4.0 Page 11 of 13 www.amphenol-socapex.com Tel : +33(0)4.50.89.28.00...
  • Page 12 Installation: Set of Four 4x4.5 mounting holes on bottom for mounting to any flat surface. TEMPERATURE • Operating temp: -35ºC to +75ºC (-31ºF to +167ºF) – Cold Start-Up • Storage temp: -45ºC to +85ºC (-49ºF to +185ºF) RJSMLAC 8MG CAPS UM Rev: 4.0 Page 12 of 13 www.amphenol-socapex.com Tel : +33(0)4.50.89.28.00...

  • Page 13: Service Information

    Mailing Address: Amphenol, Promenade de l’Arve, B.P.29, 74311 Thyez Cedex, France For more You will find all useful information on the RJ-Switch series on the dedicated website: information https://www.amphenol-socapex.com/en/products/connectors/rugged-ethernet-usb/ethernet- military-switches RJSMLAC 8MG CAPS UM Rev: 4.0 Page 13 of 13 www.amphenol-socapex.com Tel : +33(0)4.50.89.28.00...
