This manual applies to the following products:
•
RJSMLAC 8MG CAPS
•
RJSMLAC 8MG CAPS VAC
Rugged IP67/68 Managed Ethernet Switch, with RJFTV reinforced 38999 connectors
Revision
Date
1
November 07, 2012
2
January 2013
2.1
July 2013
2.2
December 2014
3
December 2015
RJSMLAC 8MG CAPS UM rev. 3
Amphenol
– 948, Promenade de l'Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com
IP67/68 rugged Ethernet Managed Switch
Section 1
General Information
Section 2
Hardware
Section 3
Installation
Section 4
Wiring
Section 5
Management
Section 6
Features Overview
Section 7
Service Information
(18-32 VDC powered)
(90-265 VAC, 47-63 Hz)
Modifications
Initial document
Revised Warranty information
Added connector P/N for console port
Added connector rear view for console port
Added version VAC (AC powered model)
RJSMLAC 8MG CAPS
- Hardware User Manual -
Page 3
Page 4
Page 5
Page 7
Page 11
Page 12
Page 14
Page 1 of 14
Last Rev: 14-Dec-15
Advertisement
Table of Contents
Related Manuals for Amphenol Socapex RJSMLAC 8MG CAPS VAC
Summary of Contents for Amphenol Socapex RJSMLAC 8MG CAPS VAC

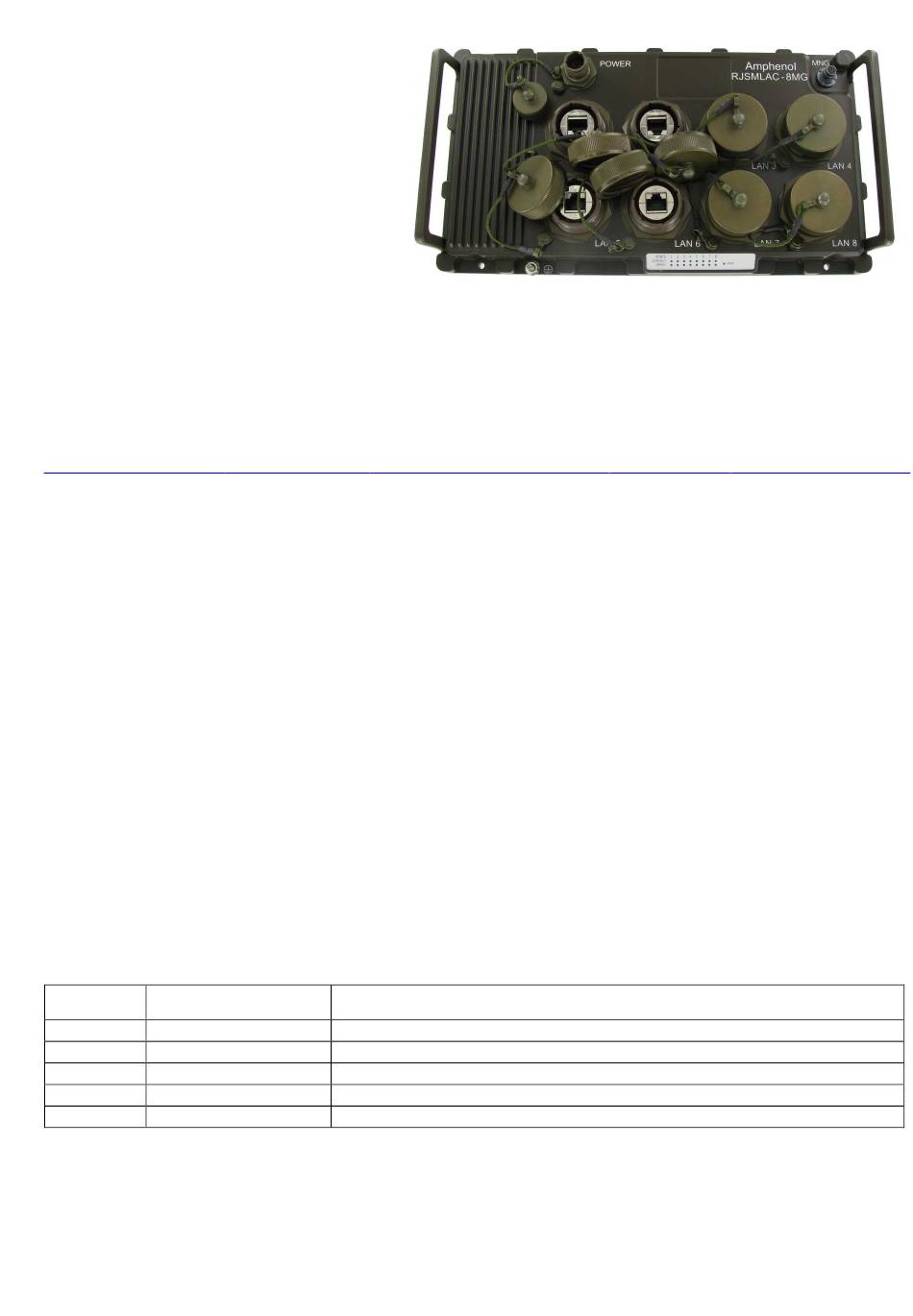

- Page 1 Service Information This manual applies to the following products: • RJSMLAC 8MG CAPS (18-32 VDC powered) • RJSMLAC 8MG CAPS VAC (90-265 VAC, 47-63 Hz) Rugged IP67/68 Managed Ethernet Switch, with RJFTV reinforced 38999 connectors Revision Date Modifications November 07, 2012...
- Page 2 (temperature limit, maximum voltage, etc.) as defined by the Vendor, or from incorrect choice of application. - Damages resulting from force majeure, such as this is defined under article 11 of Amphenol Socapex Sales Conditions hereunder, or resulting from any unpredictable event or natural disaster.
-
Page 3: General Information
Section 1 General Information This manual will help you install and maintain the Amphenol Rugged Ethernet Managed Overview switches. These products are extremely easy to install and operate. Military applications can now take full advantage of 1000Mbps Gigabit Ethernet performance. The installation guide describes how to install and use the hardened compact Ethernet RJSMLAC-8MG-CAPS Military Rugged Switch. -
Page 4: Section 2 Hardware

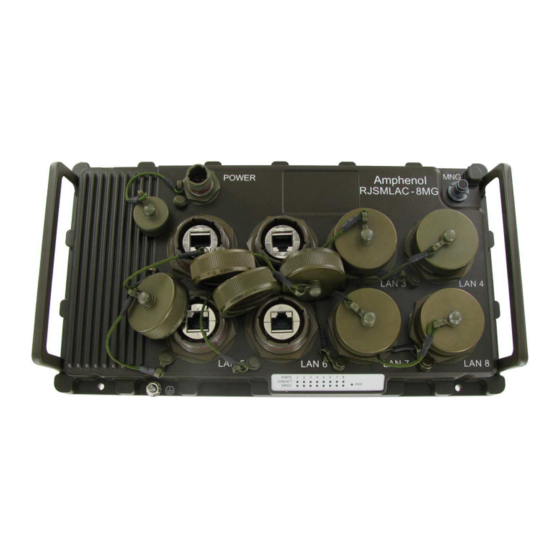

Section 2 Hardware Overview The switches can be mounted directly to a flat surface or to a wall. Refer to the mechanical drawing below. Its high protected enclosure makes it able to withstand immersion (IP67/68 rating). The Ethernet connections come out from rugged MIL-DTL-38999 RJFTV connectors. Front Panel The following describes the front panel, and LED indicators of the RJSMLAC-8MG- Display... -
Page 5: Section 3 Installation
Section 3 Installation As with any electronic device, you should place the switch where it will not be subject to Selecting a extreme temperatures, humidity, or electromagnetic interference that exceeds the Site RJSMLAC-8MG-CAPS ‘s profile. Specifically, the site you select should meet the following requirements: •... - Page 6 RJSMLAC 8MG CAPS UM rev. 3 Page 6 of 14 Last Rev: 14-Dec-15 Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com...
- Page 7 Section 4 Wiring Overview These switches provide connections to Ethernet devices in harsh environment. Typically a port is used to connect to another Ethernet switch that is connected to the main Ethernet backbone. The other Ethernet ports are then connected to Ethernet devices such as communication systems, Ethernet I/O, or industrial computers.
- Page 8 Amphenol No Military No Crimping tools Crimping tool For #20: 809 857 For #20: M22520/1-01 Positioner For #20: 809 858 For #20: M22520/1-04 Plastic insertion and Contact size Amphenol No Military no removal tools 809 854 M81969/14-10 Backshell We suggest using TVNSA backshells with corresponding heat shrinks. These backshells, providing an electrical continuity between cable and connector, ensure a high level or of EMI/RFI protection.
- Page 9 1. Prepare the cable for termination process and slide onto the cable the items in the order shown on figure 1. 2. Screw the backshell at the rear of the connector. 3. Fold back the braid on the outer jacket and fix it (figure 4.
- Page 10 Coding A Plug Receptacle Ethernet RJ45 Most standard Ethernet cordsets follow one of the TIA-568 guideline given hereafter. pins position RJSMLAC 8MG CAPS UM rev. 3 Page 10 of 14 Last Rev: 14-Dec-15 Amphenol – 948, Promenade de l‘Arve – B.P. 29 – 74311 THYEZ Cedex – France - +33(0)4.50.89.28.00 – www.rjswitch.com...
-
Page 11: Web Management
Section 5 Management Management The switch is managed. It can be accessed either using the web interface or using RS-232 console port (port MNG). For in-band Ethernet management configuration use either one of the 8 ports. management Configure your computer with compatible IP address and access to the switch using a web browser. -
Page 12: Features Overview
Section 6 Features Overview Here’s a brief explanation of some of the features found in these switches documented by Switching this manual. Features ETHERNET PORTS • 8 x switched 10/100/1000 (Gigabit Ethernet) ports STANDARDS COMPLIANCE • IEEE 802.1x MAC based Authentication •... - Page 13 PERFORMANCE • 26.8 Mpps wire speed forwarding rate • 20 Gbps maximum forwarding bandwidth • 8K MAC Address CHASSIS • Low profile rugged aluminum extrusion • Conductively cooled w/custom internal heat-sinks • Ingress protection against sand, dust and moisture • Epoxy-Polyamide Paint, Per MIL-C-83286, MATT texture, Nato green POWER •...
-
Page 14: Section 7 Service Information
Section 7 Service Information We sincerely hope that you never experience a problem with any Amphenol product. If Service you do need service, call Amphenol at +33(0) 450 89 28 00 and ask for Applications Information Engineering. A trained specialist will help you to quickly determine the source of the problem.
