Summary of Contents for Teka TFLW10W

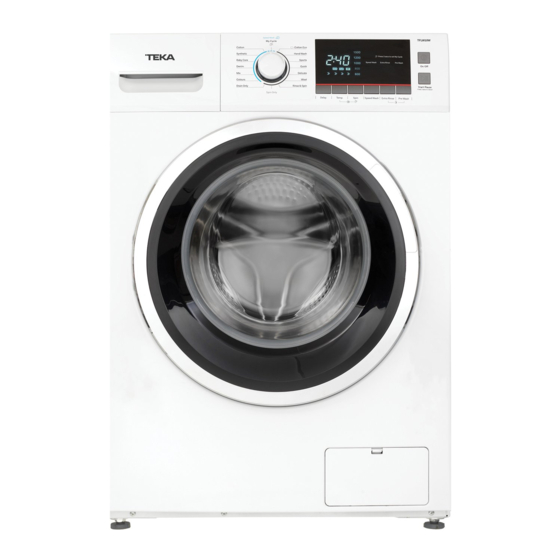

- Page 1 ENGLISH V 1.0 Instruction Manual 10kg Front Load Model/s: Washing Machine TFLW10W...
- Page 2 165 Barkly Ave Burnley ensure optimum performance. Victoria 3121 Australia — Again, thank you for choosing a Teka appliance ACN. 600 546 656 and we look forward to being of service to you. — Online. residentia.group Kind regards, —...
-
Page 3: Table Of Contents
Purchase Details Warranty Customer Teka recommends the use of original spare parts. Care When contacting our customer service team, please ensure that you have the following information at hand (which can be found on your appliances’ rating plate or manual). -
Page 4: Safety Notes
TFLW10W Safety Notes 1. Conditions of use This appliance is intended to be used in household and similar applications such as farm houses or by clients in serviced apartments, holiday apartments and other residential type environments. 2. Safety instructions Before the installation and use of the appliance, carefully read the supplied instructions. - Page 5 Instruction Manual Safety Notes Continued Electrical Connection Warning! Risk of fire and electrical shock. — The appliance must be earthed. — Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician. — Always use a correctly installed shockproof socket. —...
-
Page 6: Installation
TFLW10W Safety Notes Continued 2.4 Transport — Always move the appliance cautiously. Do not use the machine door or the handle of the detergent dispenser, to lift the appliance. — Transportation bolts should be reinstalled within the machine by a specialised person, prior to transporting the appliance. - Page 7 Instruction Manual Installation Continued 3.3 Connect the Inlet Pipe 1. Connect the hose elbow to the cold water outlet, screwing in a clockwise direction. 2. Connect the other end of the inlet hose to the water inlet valve on the rear of the washing machine.
-
Page 8: Your Appliance
TFLW10W Your 4. Product Components Appliance Top board Water supply hose Control panel Power cord Detergent dispenser Drum Note: Door Service panel The images in this user manual are for explanatory purposes only. Drain hose Your Front Loader Washing Machine may appear slightly different, however the functions remain the same. -
Page 9: Operating Instructions
Drain hose Top cover Power supply cord Detergent dispenser Door Water supply hose Service filter Drum Control panel Instruction Manual Drain hose Power supply cord Note! Detergent dispenser • The product line chart is for reference only, please refer to real product as Door standard. - Page 10 TFLW10W Operating Instructions Continued 5 Programme Table Programmes Max Load Temperature Default Spin Default Time (kg) (°C) Speed (RPM) Cotton 10.0kg 1:28 Synthetic 1000 1:25 Baby Care 10.0 1000 1:42 Denim 10.0 1:35 10.0 1:20 Colours 1000 1:01 Drain Only...
- Page 11 Instruction Manual Operating Instructions Continued 6 Preparation Before Washing Clothes Please follow these steps carefully to avoid trouble with your washing machine and damaging your clothing. 6.1 Washing Considerations — New clothes in particular, can leach colour onto other clothing items, particularly whites.
- Page 12 TFLW10W Operating Instructions Continued 6.4 Washing Clothes For The First Time Before washing any clothes, please perform one cycle without clothes inside as follows: — Connect the power source and water. — Insert a small amount of detergent into Compartment II of the detergent drawer and close it.
- Page 13 Instruction Manual Operating Instructions Continued Colours Suitable for washing a load of coloured laundry as the cycle is done at a low temperature to ensure colours do not run or fade. Drain Only A very short cycle to ensure the machine is fully drained by removing any residual water from a previous load.
- Page 14 TFLW10W Operating Instructions Continued 6.7 Additional Wash Options Prewash Function The Prewash function adds an additional wash prior to the main wash. Extra detergent should be placed in the Pre-wash detergent compartment, labeled with “I”. Speed Wash Function Adding this function to your wash program decreases the washing time.
-
Page 15: Care And Maintenance
Instruction Manual Operating Instructions Continued Bubble Removal Function When excessive detergent is used, excessive bubbles may occur, effecting your wash results. Your washing machine will automatically check for excessive bubbles and work to remove them as required. Muting the machine (Sound function) This function allows you to turn the audible tone on or off, to indicate that your washing program is complete. By default the audible sound is set to On. When the Sound function is on, your appliance will make an audible tone when: —... - Page 16 TFLW10W Care and Maintenance Continued 7.4 Cleaning the Detergent Drawer You should periodically follow these steps to ensure the detergent drawer on your machine remains clean: — Press down on the arrow, located on the cover for the fabric softener compartment of the detergent drawer.
-
Page 17: Troubleshooting
Instruction Manual Care and Maintenance Continued 7.6 Cleaning the Drain Pump Filter (Removing Foreign Objects) Warning! Always keep detergents and additives out of reach from children. Periodically you should clean the drain pump filter to ensure normal operation of your washing machine. The type of washing, frequency and soil level of your washing cycles will alter how often this procedure needs to be undertaken, however you should inspect the filter regularly. - Page 18 TFLW10W Troubleshooting Continued 10.2 Troubleshooting Table Problem Solution Washing Machine — Check that the mains plug is inserted and switched on at won’t start-up the power point. — Check that the door is closed securely. — Check that the relevant fuse hasn’t blown.
-
Page 19: Technical Data
Instruction Manual Technical Data 11. Technical Specifications Model TFLW10W Washing Capacity 10kg Dimensions (W � D � H mm) 595 × 565 × 850 mm Power supply 220-240V �50Hz, 10Amp Rated Power 2000W Net Weight 72kg Standard Water Pressure 0.05MPa�1.0MPa... - Page 20 TFLW10W THIS PAGE IS INTENTIONALLY LEFT BLANK...
-
Page 21: Purchase Details
Instruction Manual Attach your receipt to this page Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE... -
Page 22: Warranty
TFLW10W Warranty WARRANTY TERMS & CONDITIONS 1. IN THIS WARRANTY LAUNDRY APPLIANCES a. ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL; This document sets out the terms and conditions of the b. - Page 23 Instruction Manual Warranty Continued 5. You will bear the cost of transportation, travel and delivery of 10. For Appliances and services provided by Residentia Group in the Appliance to and from Residentia Group or its ASR. If you Australia, the Appliances come with a guarantee by Residentia reside outside of the service area, you will bear the cost of: Group that cannot be excluded under the Australian Consumer a.
- Page 24 Teka is proudly distributed in Australia by Residentia Group Pty Ltd www.residentia.group | 1300 11 4357 | support@residentia.com...
