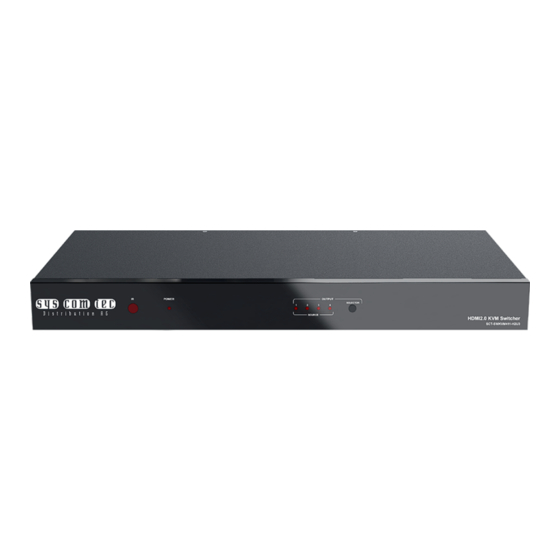

SCT-SWKVM411-H2U3
HDMI2.0 KVM Switcher
User Manual
All Rights Reserved
Version: SCT-SWKVM411-H2U3_2023 V1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCT-SWKVM411-H2U3 and is the answer not in the manual?

Questions and answers

Related Manuals for syscomtec SCT-SWKVM411-H2U3

Summary of Contents for syscomtec SCT-SWKVM411-H2U3

  • Page 1 SCT-SWKVM411-H2U3 HDMI2.0 KVM Switcher User Manual All Rights Reserved Version: SCT-SWKVM411-H2U3_2023 V1.0.0...
  • Page 2 HDMI2.0 KVM Switcher Preface Read this user manual carefully before using the product. Pictures shown in this manual is for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.

  • Page 3: Table Of Contents

    HDMI2.0 KVM Switcher Table of Contents 1. Introduction ....................2 1.1. Overview .................... 2 1.2. Features .................... 2 1.3. Package Contents ................3 1.4. Specifications..................4 1.5. Panel Descriptions ................7 1.5.1. Front Panel ................7 1.5.2. Rear Panel ................7 2.

  • Page 4: Introduction

    HDMI2.0 KVM Switcher 1. Introduction 1.1. Overview This product is a 4x1 HDMI2.0 KVM switcher that supports full 4K and USB 3.0/2.0 switching between four HDMI inputs and one group of HDBT and HDMI outputs. It can transmit 4K@60Hz signals up to 100m/330ft via a single Cat 6a/7 cable.

  • Page 5: Package Contents

    HDMI2.0 KVM Switcher Multiple control options, including front panel buttons, IR, RS232 and LAN  (Telnet/Web UI). 1.3. Package Contents 1 x SCT-SWKVM411-H2U3 Switcher  1 x AC Power Cord (with EU Pins)  2 x Phoenix Male Connectors (3.5mm, 3 Pins) ...

  • Page 6: Specifications

    HDMI2.0 KVM Switcher 1.4. Specifications Technical 4 x HDMI IN, 1 x HDMI OUT, 1 x HDBT OUT, 4 x USB Input/Output Port HOST, 2 x USB DEVICE, 1 x AUDIO OUT, 1 x RS232, 1 x LAN, 1 x IR IN, 1 x AC 100-240V 50Hz/60Hz POWER IN Input Video Signal HDMI with 4K@60 YUV 4:4:4, HDCP 2.2 Output Video Signal...
  • Page 7 HDMI2.0 KVM Switcher Transmission Distance Note: Straight-through category cable wired to T568B standard is recommended.  For max HDMI 2.0 resolution recommended cable is: Cat 6a U/FTP or  F/FTP. Cable Type Range Supported Video 1080P@60Hz 70m/230ft 4K@30Hz 4K@60Hz 4:2:0 36bpp Cat 5e/6 4K@60Hz 4:4:4 24bpp 40m/131ft...
  • Page 8 HDMI2.0 KVM Switcher X = Left-side patch cable length ≤ 5 [meter]  Y = Right-side patch cable length ≤ 5 [meter]  Z = Wall segment ≤ Maximum Distance – X – Y [meter]  Cable Type Range Supported Video 1080P@60Hz 70m/230ft (with Patches) 4K@30Hz...

  • Page 9: Panel Descriptions

    HDMI2.0 KVM Switcher 1.5. Panel Descriptions 1.5.1. Front Panel Name Description IR window Receive IR signals. POWER On: The device is powered on.  Off: The device is powered off.  SOURCE On: HDMI IN (1-4) is selected.  LED (1-4) Off: HDMI IN (1-4) is not selected.
  • Page 10 HDMI IN 1-4 respectively, and they also can be set independently through API or Web UI, detail information, please refer to the separate document “API Command Set SCT-SWKVM411-H2U3” or “Web UI Control” section. DEVICE Connect to USB devices such as keyboard &...

  • Page 11: Installation And Wiring

    HDMI2.0 KVM Switcher 2. Installation and Wiring 2.1. Installation Warnings: Before wiring, disconnect the power from the device.  During wiring, connect and disconnect the cables gently.  To install the device to a suitable location, perform the following: Attach the installation bracket to the enclosure using the screws provided. The bracket is attached to the enclosure as shown.
  • Page 12 HDMI2.0 KVM Switcher USB ports of the connected HDBT receiver. Note: If the connected HDBT receiver is connected to multiple USB devices or high-power USB devices, users need to connect a separate power supply to the receiver. By default, USB control is in follow mode, USB Host 1-4 ports are bound with HDMI IN 1-4 respectively.
  • Page 13 HDMI2.0 KVM Switcher with DHCP server, and connect a PC to the same network. Connect to the provided power adapter to the switcher (With one-way PoE function, the switcher can supply power for the connected HDBT receiver). Power on all attached devices. Laptop Amplifier Display 1...

  • Page 14: Ir Remote Control

    HDMI2.0 KVM Switcher 3. IR Remote Control The remote-control handset can be used to turn on and off a CEC-enabled display and select input source for output. Turn off a CEC-enabled display device Turn on a CEC-enabled display device Select the previous source input Select the next source input Select a specific source input Note:...

  • Page 15: Serial Port Operation

    HDMI2.0 KVM Switcher 4. Serial Port Operation 4.1. RS232 Control Advanced users may need to control the switcher through RS232 serial communication. Connect a control PC or control system to the RS232 port of the switcher. API command for RS232 control is available in the separate document “API Command Set_SCT-SWKVM411-H2U3”.
  • Page 16 HDMI2.0 KVM Switcher When using serial command routing, the default values of serial connection are as follows: Parameters Value Baud Rate 9600 bps Data Bits 8 bits Parity None Stop Bits 1 bit Users can use switcher API to change the serial parameters of 5001 port independently according to different connected devices, the command is as follows: SET UART_CFG out prm1 prm2 prm3 prm4<CR><LF>...

  • Page 17: Web Ui Control

    HDMI2.0 KVM Switcher 5. Web UI Control The Web UI designed for the switcher is available for basic controls and advanced settings of the device. The Web UI can be accessed through a browser with latest version, e.g. Chrome, Firefox, Safari, Opera, IE, etc. 5.1.
  • Page 18 HDMI2.0 KVM Switcher Switcher Control Users can select input for output in this section. By default, INPUT 1 is selected as input source of HDMI output and HDBT receiver. Click the button in the table to select the input for the output display (button turns from white to green once selection is done).

  • Page 19: General Setting

    HDMI2.0 KVM Switcher When it set to “ON”, USB HOST 1-4 are bound with HDMI IN 1-4  respectively, USB connections will follow the input source selection. When it set to OFF, users can switch USB connections independently  through the upper table. For example, select HDMI IN 1 as input source for HDMI/HDBT OUT, and select USB host 2 to be connected to USB devices 1, the USB devices 1 will be connected USB host 2.
  • Page 20 HDMI2.0 KVM Switcher EDID Preset This section allows you to configure EDID settings of each input port. Select the item from the drop-down menu, then click “Apply” to take effect. By default, input EDID is set as 4K@60Hz 2.0ch audio With SDR. EDID Read Click “Enter”...

  • Page 21: Advanced Setting

    HDMI2.0 KVM Switcher HDCP This section allows you to enable or disable HDCP capability of each input. By default, HDCP Support is switched to ON at each input to allow for HDCP-protected content transmission. 5.2.3. Advanced Setting There are five submenus in this page: Network, Change Login Password, System Version, FW Update and System.
  • Page 22 HDMI2.0 KVM Switcher Change Login Password This section allows you to change login password. The default password is “admin”. Apply: Click to save the changes. Note: The new password must be 4 to 16 characters in length (alphanumeric only). System Version This section shows the current web UI version MCU version and Valens version.
  • Page 23 HDMI2.0 KVM Switcher first, then Valens firmware, and at last ARM firmware. If one firmware is already the version need to upgrade, it will skip this firmware and upgrade next automatically.
  • Page 24 HDMI2.0 KVM Switcher When the window of “Update Process” shows “Upgrade Successful. Rebooting” and the process bar reaches to 100% (as shown in the last figure in step 2), the upgrading process finishes and the switcher will reboot automatically. Please wait for about 30s and then refresh and log in again.
  • Page 25 HDMI2.0 KVM Switcher The switcher will upgrade and reboot automatically when upgrading firmware is completed. Please wait for about 30s and then refresh and log in again. System This section allows users to reboot, reset the switcher or set it to standby mode. Reboot: Click to reboot the device.
  • Page 26 HDMI2.0 KVM Switcher When in standby mode, enter the password in login page, the following  window will pop up, users can select to exit standby mode or stay in this mode.

  • Page 27: Customer Service

    HDMI2.0 KVM Switcher 6. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 6.1. Warranty The limited warranty period of the product is fixed three years. 6.2.
  • Page 28 HDMI2.0 KVM Switcher syscomtec Distribution AG Raiffeisenallee 8 D-82041 Oberhaching (bei München) Tel.: +49 89 666 109 330 Email: post@syscomtec.com https://www.syscomtec.com...
