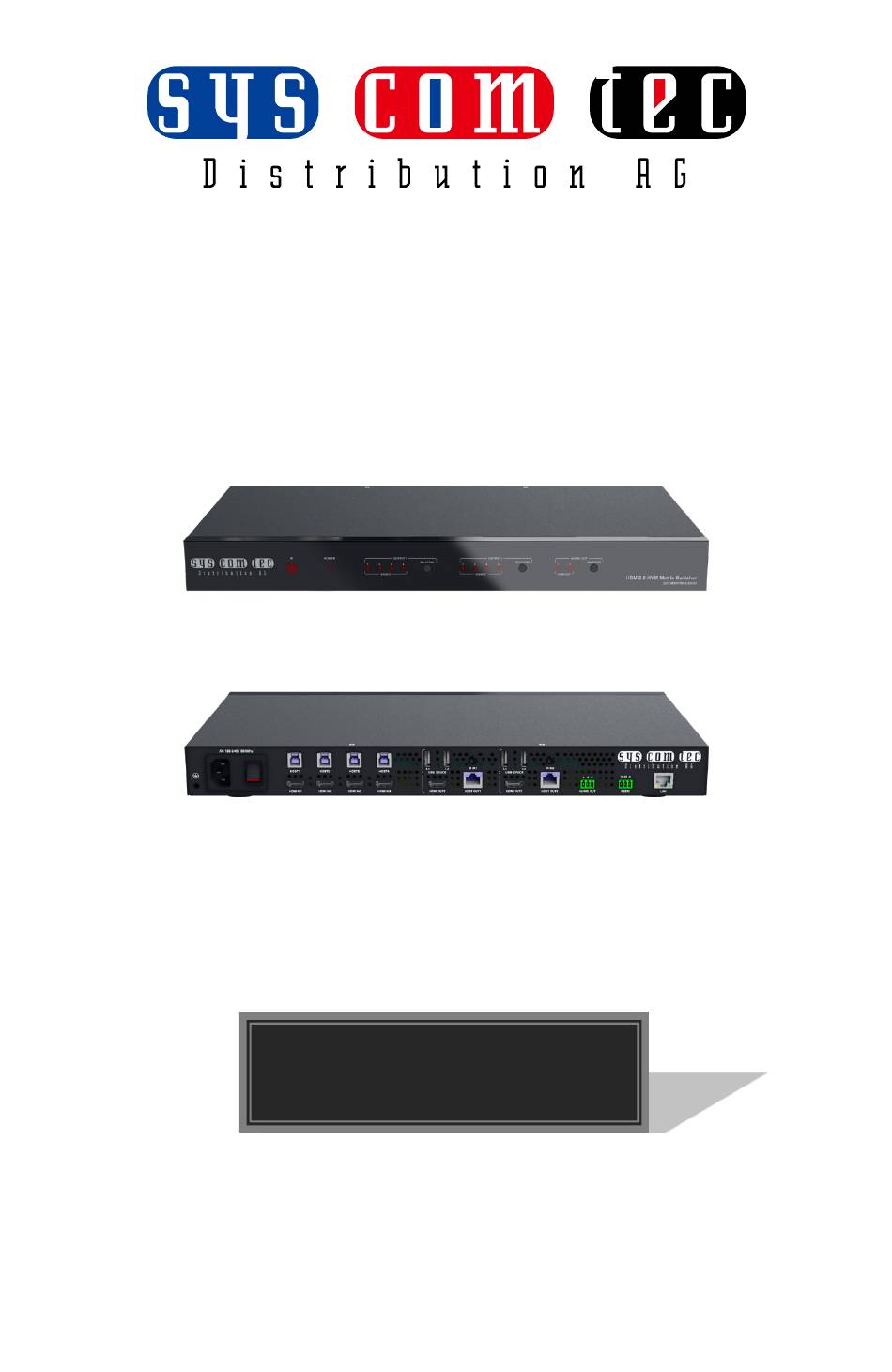

- Page 1 SCT-MXKVM42-H2U3 HDMI2.0 KVM Matrix Switcher User Manual All Rights Reserved Version: SCT-MXKVM42-H2U3_2022 V1.0.2...
- Page 3 HDMI2.0 KVM Matrix Switcher Preface Read this user manual carefully before using the product. Pictures shown in this manual is for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
-
Page 4: Table Of Contents
HDMI2.0 KVM Matrix Switcher Table of Contents 1. Introduction ....................2 1.1. Overview .................... 2 1.2. Features .................... 2 1.3. Package Contents ................3 1.4. Specifications..................4 1.5. Panel Descriptions ................7 1.5.1. Front Panel ................7 1.5.2. Rear Panel ................7 2. -
Page 5: Introduction
HDMI2.0 KVM Matrix Switcher 1. Introduction 1.1. Overview This product is a 4x2 HDMI2.0 KVM matrix switcher that supports full 4K and USB 3.0/2.0 matrix switching between four HDMI inputs and two groups of HDBT and HDMI outputs. It can transmit 4K@60Hz signals up to 100m/330ft via a single Cat 6a/7 cable. -
Page 6: Package Contents
HDMI2.0 KVM Matrix Switcher One audio output port for outputting de-embedded audio from HDBT/HDMI OUT 1/2. Multiple control options, including front panel buttons, IR, RS232 and LAN (Telnet/Web UI). 1.3. Package Contents 1 x Matrix 1 x AC Power Cord (with EU Pins) ... -
Page 7: Specifications
HDMI2.0 KVM Matrix Switcher 1.4. Specifications Technical 4 x HDMI IN, 2 x HDMI OUT, 2 x HDBT OUT, 4 x USB Input/Output Port HOST, 4 x USB DEVICE, 1 x AUDIO OUT, 1 x RS232, 1 x LAN, 2 x IR IN, 1 x AC 100-240V 50Hz/60Hz POWER IN Input Video Signal HDMI with 4K@60 YUV 4:4:4, HDCP 2.2 Output Video Signal... - Page 8 HDMI2.0 KVM Matrix Switcher Transmission Distance Note: Straight-through category cable wired to T568B standard is recommended. For max HDMI 2.0 resolution recommended cable is: Cat 6a U/FTP or F/FTP. Cable Type Range Supported Video 1080P@60Hz 70m/230ft 4K@30Hz 4K@60Hz 4:2:0 36bpp Cat 5e/6 4K@60Hz 4:4:4 24bpp 40m/131ft...
- Page 9 HDMI2.0 KVM Matrix Switcher The standard specifies the following lengths for the three-segment cable installation: X = Left-side patch cable length ≤ 5 [meter] Y = Right-side patch cable length ≤ 5 [meter] Z = Wall segment ≤ Maximum Distance – X – Y [meter] ...
-
Page 10: Panel Descriptions

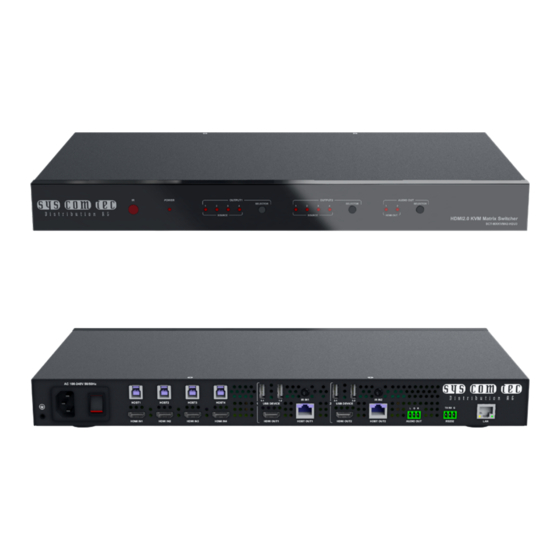

HDMI2.0 KVM Matrix Switcher 1.5. Panel Descriptions 1.5.1. Front Panel Name Description IR window Receive IR signals. POWER On: The device is powered on. Off: The device is powered off. SOURCE On: HDMI IN (1-4) is selected. LED (1-4) Off: HDMI IN (1-4) is not selected. - Page 11 HDMI2.0 KVM Matrix Switcher Name Description Connect to a control PC or control system for RS232 RS232 serial control. Connect to a control system for Web UI or Telnet control. Connect to USB host PC. By default, USB Host 1-4 ports are bound with HDMI IN 1-4 respectively, and they also can be set USB HOST independently through API or Web UI, detail...
-
Page 12: Installation And Wiring
HDMI2.0 KVM Matrix Switcher 2. Installation and Wiring 2.1. Installation Warnings: Before wiring, disconnect the power from the device. During wiring, connect and disconnect the cables gently. To install the device to a suitable location, perform the following: Attach the installation bracket to the enclosure using the screws provided. -
Page 13: Wiring
HDMI2.0 KVM Matrix Switcher 2.2. Wiring Connect the HDMI sources (such as PC) to the HDMI IN 1-4 ports. Connect HDMI display device (such as TV, projector, LED/LCD display) to the HDMI OUT 1-2 ports. Connect HDBT receivers (such as SCT-HDBT3KVM-TRX) to HDBT OUT ports, and connect displays to the receivers. - Page 14 HDMI2.0 KVM Matrix Switcher Connect an audio receiver such as an amplifier) to AUDIO OUT port. Connect for additional control options: IR Control: Using the provided IR remote directly point to the IR window to control the matrix. (Detail information, please refer to “IR Remote Control”...
-
Page 15: Ir Remote Control
HDMI2.0 KVM Matrix Switcher 3. IR Remote Control The remote-control handset can be used to turn on and off a CEC-enabled display and select input source for output 1 and output 2.. Turn off a CEC-enabled display device Turn on a CEC-enabled display device Select the next source input Select the previous source input Select a specific source input... -
Page 16: Serial Port Operation
HDMI2.0 KVM Matrix Switcher 4. Serial Port Operation 4.1. RS232 Control Advanced users may need to control the matrix through RS232 serial communication. Connect a control PC or control system to the RS232 port of the Matrix. API command for RS232 control is available in the separate document “API Command Set_SCT-MXKVM42-H2U3”. - Page 17 HDMI2.0 KVM Matrix Switcher HDBT output1 receiver. When using serial command routing, the default values of serial connection are as follows: Parameters Value Baud Rate 9600 bps Data Bits 8 bits Parity None Stop Bits 1 bit Users can use matrix API to change the serial parameters of 5001 or 5002 port independently according to different connected devices, the command is as follows: SET UART_CFG prm1 prm2 prm3 prm4 prm5<CR><LF>...
-
Page 18: Web Ui Control
HDMI2.0 KVM Matrix Switcher 5. Web UI Control The Web UI designed for the matrix is available for basic controls and advanced settings of the device. The Web UI can be accessed through a browser with latest version, e.g. Chrome, Firefox, Safari, Opera, IE, etc. 5.1. - Page 19 HDMI2.0 KVM Matrix Switcher Video Control The section manages distribution of input sources to output displays. By default, INPUT 1 corresponds to OUTPUT 1, INPUT 2 corresponds to OUTPUT 2. Click the button in the table to select the input for the output display (button turns from white to green once selection is done).
- Page 20 HDMI2.0 KVM Matrix Switcher USB Control This section allows you to set USB control mode. Follow video: Click the slider to set “Follow video” function to “ON/OFF”. By default, “Follow video” is set to “ON”. When it set to “ON”, USB HOST 1-4 are bound with HDMI IN 1-4 ...
-
Page 21: General Setting
HDMI2.0 KVM Matrix Switcher Preset This section saves/loads the input/output switch settings to or from the matrix. Save: Settings in Video Control section are saved. • Load: Preset already saved is loaded. • 5.2.2. General Setting There are three submenus in this page: EDID Preset, EDID Read, HDCP. EDID Preset This section allows you to configure EDID settings of each input port. - Page 22 HDMI2.0 KVM Matrix Switcher Select one output port from the drop-down menu for EDID setting. Read: Click to read the EDID of the Output port you choose. Save As: Click to save the read EDID of the output as a bin file to a ...
-
Page 23: Advanced Setting
HDMI2.0 KVM Matrix Switcher 5.2.3. Advanced Setting There are five submenus in this page: Network, Change Login Password, System Version, FW Update and System. Network Network is used to toggle between the dynamic and static IP addressing. DHCP: When enabled, the IP address of the Matrix is assigned ... - Page 24 HDMI2.0 KVM Matrix Switcher The default password is “admin”. Apply: Click to save the changes. Note: The new password must be 4 to 16 characters in length (alphanumeric only). System Version This section shows the current web UI version and MCU version. FW Update This section allows you to upgrade firmware of the matrix.
-
Page 25: Customer Service
HDMI2.0 KVM Matrix Switcher 6. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 6.1. Warranty The limited warranty period of the product is fixed three years. 6.2. - Page 28 HDMI2.0 KVM Matrix Switcher syscomtec Distribution AG Raiffeisenallee 8 D-82041 Oberhaching (bei München) Tel.: +49 89 666 109 330 Email: post@syscomtec.com https://www.syscomtec.com...
