Geek L8 User Manual

Robot vacuum cleaner
Hide thumbs
Table of Contents

Advertisement

Quick Links

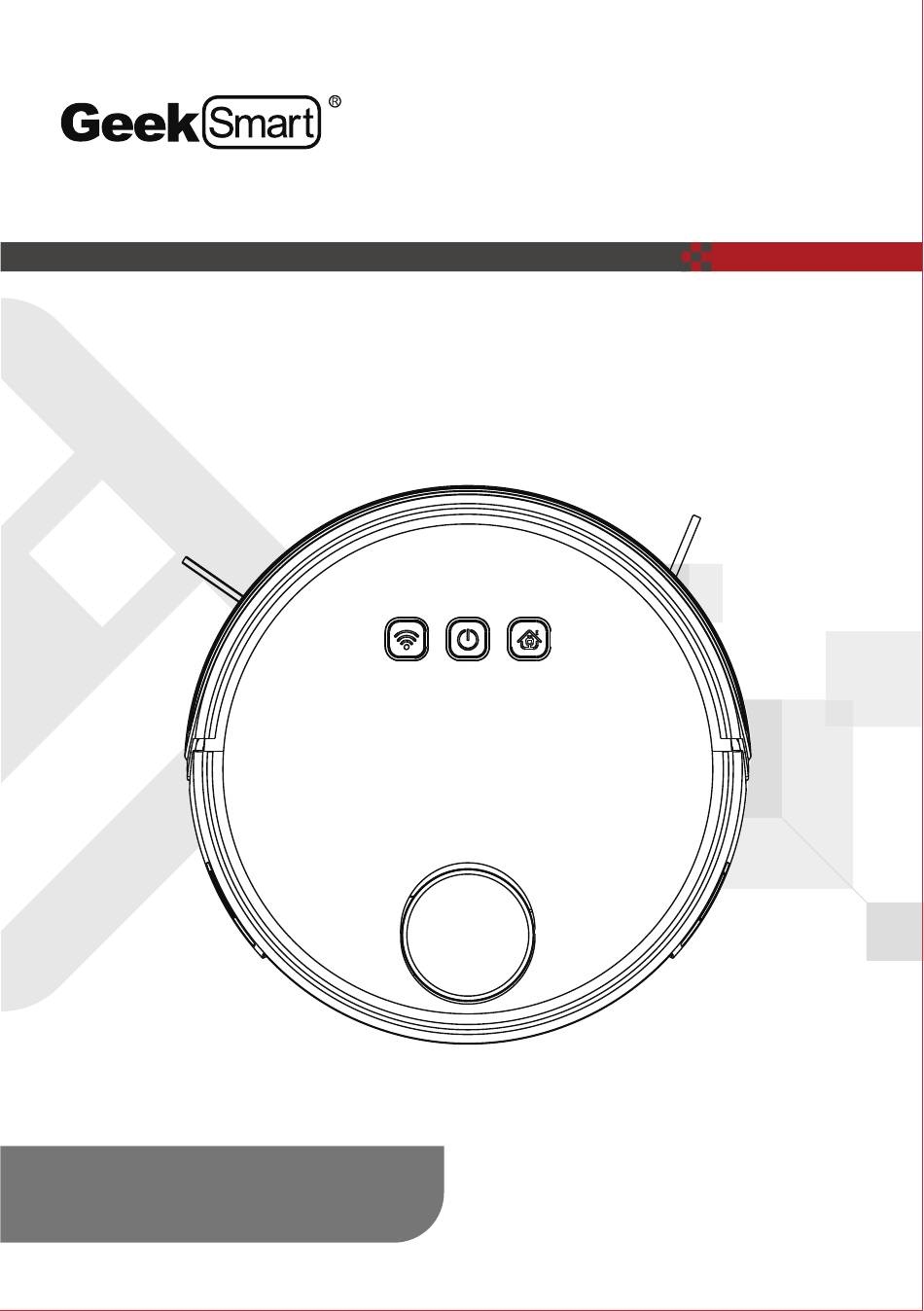

ROBOT VACUUM CLEANER
User Manual
Model No.: L8
IMPORTANT：Read the instructions
carefully before operating the appliance
and keep them for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L8 and is the answer not in the manual?

Questions and answers

Related Manuals for Geek L8

Summary of Contents for Geek L8

  • Page 1 ROBOT VACUUM CLEANER User Manual Model No.: L8 IMPORTANT：Read the instructions carefully before operating the appliance and keep them for future reference.
  • Page 2 Safety Instructions Product Components How To Use Cleaning And Maintenance Troubleshooting welcome GeekSmart bids you welcome to a world of smart home devices, the robot vacuum ceaner. GeekSmart strives to explore and develop the smart home industry for the good of all by combining cutting-edge technologies to develop products fit and ready for the market.
  • Page 3 lmportant Safety lnstructions Please read the manual carefully before using the product and keep this instruction for reference. Products cannot be used by children under 8 years of age or people with mental disabilities. If these kinds of people need to use it, please do so under the supervision of the guardian.
  • Page 4 It is forbidden to absorb any items such as follows: - stones, waste paper. - flammable materials such as toner for printers or copies. - cigarettes, matches, ash, or other items that may cause a fire. Do not place any product that is burning at the suction outlet. Do not use products when suction is blocked.

  • Page 5: Product Components

    Side Brushes X6 HEPA X2 Water Tank X1 Water Rag X1 Remote Control “Optional” X2 ROBOT VACUUM CLEANER User Manual Model No.: L8 Instruction Manual X1 IMPORTANT：Read the instructions carefully before operating the appliance and keep them for future reference.
  • Page 6 Assembly Name Back-charging button Wi-Fi button Power button Laser Head Top View Lower Vision Sensor Universal Wheel Charging Pole Piece Right Brush Left Brush Drive Wheels Roller Brush Assembly Dust Box Bottom View Dust Box Infrared Sensors Power Switch Side view...
  • Page 7 Primary Filter Filter Sponge High-Efficiency Filter(HEPA) Dust Box Lower Cover Dust Box Upper Cover Dustbin Key Dust Box Primary filter Sponge filter Hepa filter Dust bin cover Dust bin button Dust bin block slice Dust bin unit Dust Bin...
  • Page 8 Water Tank Dustbin Key Water Tank Sealing Plug Water Rag Water Permeable Rag Assembly Power Home - Return to Charging base Forward Left Right Stop/Start Backward Wall-following Turbo Seeping mode Remote Contro (“Optional”)
  • Page 9 Clean Brush Indicator Light Power Adapter Charging Pole Piece Power Adapter Slots Charging Base Parameter Product Model Input 19V / 1A Power Consumptiom Battery Capacity Li-ion 3200mAh Dust Collector Capacity 0.5L Cleaning Time Max. 110 mins Charging Time Round 300 mins Battery DC 3V(AAA) Remote Control Method...

  • Page 10: How To Use

    How To Use Please refer to the following guidelines to check the cleaning area before the cleaner works. Power lines and other debris scattered on the ground may trip up the product, they must be removed. 2. Please roll the carpet tassels or let the product work on short-hair rugs.

  • Page 11: Charging Operation

    Install The Side Brushes Please install the right brush into the right bottom mounting port of the machine, the left brush into the left bottom mounting port of the machine, and ensure that the two side brushes are in place. Charging Operation 1.

  • Page 12: Start/Stop Cleaning

    Charging Place the robot in the charging stand and pay attention to the charging pole piece. Turn on the power switch, the robot will enter standby mode. The solid orange light indicates the appliance is returning for charging. The it is fully charged. The blue light indicates the appliance is working normally / fully charged.

  • Page 13: Mode Selection

    2. If you need to select another mode, please refer to the (Mode Selection) section. Mode Selection product has a variety of cleaning modes, which can be selected by remote control as needed. The remote control can switch any mode directly. Before starting the mode, make sure that the outer ring of the key is blue and the robot is in the state of being awakened.
  • Page 14 Return Charging Mode automatically find the charging stand for charging. You can press the “home” button or press the “power” button twice to make the robot return to the charging stand for charging. NOTE: In the regular cleaning mode, the maximum run time of the robot could be 100 minutes while it would automatically return charging for next task if it has completed present one.
  • Page 15 Roller Brush Assembly and Cleaning on it and then use the cleaning brush to clean it. Set roller brush assembly: take out sucking assembly first, set the roller brush, cover the board and press it to lock. Use of Water Permeable Rag This product is equipped with a water tank assembly.
  • Page 16 Add Water Open the water inlet cover and take enough water. Sticking The Water Rag Close the water inlet cover and stick the water rag. Install Water Tank Assembly Press the dust box release button at the rear of the master to remove the dust box and replace the water tank assembly.

  • Page 17: Wifi Connection

    WiFi Connection Please scan the QR code or search “GeekSmart” and download APP. After the APP is installed. Please follow the APP instruction to register the account and login. Open the APP, click 【add device】 or click the button 【+】 and select the “Robot Vacuum”，then click the model you bought.
  • Page 18 3. Please make sure that the product is on (like the picture shows) 4. Long press the button below for 3 seconds and then flashes, input the wi-fi account and password.(only support 2.4Ghz wifi,5Ghz can not be connected.) A few seconds later ,the product will be connected to your phone.
  • Page 19 Description of App Icons and Buttons Icons and Descriptions Entire house cleaning: The vacuum cleaner generates a map of the entire house through sensor scanning, and automatically plans the optimal cleaning path. Where to sweep: You can specify a point on the app map. Then, the vacuum cleaner will automatically move to the point, and clean the 1.6mx1.6m zone centered on this point.

  • Page 20: Start Cleaning

    Geek Smart ‒ L8 Tap and hold the button to power on the machine. Then, the power indicator is on, and the vacuum cleaner enters the standby state. When the vacuum cleaner is in a current cleaning task. TIP: Start cleaning Press the button to start cleaning.
  • Page 21 TIPS: If the power is too low, the vacuum cleaner cannot start cleaning. There- fore, charge the vacuum cleaner before starting it. Before cleaning, tidy up all kinds of wires on the ground (including the power cord of the docking station). Otherwise, the vacuum cleaner may drag the wires while cleaning, which may cause power failures of other electric appliance or damage to items or wires.
  • Page 22 When the vacuum cleaner is being charged, the power indicator blinks in breathing manner. TIPS: If the vacuum cleaner fails to find the docking station, it automatically returns to the starting point. In this case, you need to manually put the vacuum cleaner back to the docking station.
  • Page 23 The functions and details of the app may change slightly due to continuous development and upgrade of the app. The specific functions and details of the app are subject to the actual version. Geek Smart ‒ L8 Restricted zone for...
  • Page 24 TIPS: Before using this function, you need to enable the map save mode for the vacuum cleaner in the mobile app. This function is only used to divide cleaning zones, but cannot be used to block dangerous zones. If the vacuum cleaner is moved or there are significant changes in the the home environment, the map may become invalid and the settings of virtual wall or restricted zone may be lost.
  • Page 25 After cleaning starts, the main unit may move to a place beyond the selected zone. Make sure that you have cleared the obstacles on the ground around the selected zone, which cannot be used for safety isolation. Geek Smart – L8 √B √A 3.
  • Page 26 5. Adhesion: adjust suction power. 6. Water quanty: adjust water seep when mopping. 7. Breakpoint continuous scanning: If low power, the cleaner will be back to charging base to charge, then back to the breakpoint to clean continuously. 8. Voice and volume 9.

  • Page 27: Cleaning And Maintenance

    Cleaning And Maintenance Dust Box and Filter and unplug the charging stand. Remove the dust box, open the dust box cover, and clean the garbage. Remove dust filter. HEPA is not recommended for washing. Please pat and remove ash. Flush the dust box and the primary filter. Dry the dust box and the dust filter assembly and keep it dry to ensure its service life.

  • Page 28: Other Assembly

    Cleaning of Water Rag Remove: After the mopping is completed, remove the water tank assembly and remove the water permeable rag. Maintenance: Rinse and dry the water rag. Remove: After mopping the floor, remove the water tank assembly, remove the Maintenance: Dry the reservoir and allow it to dry.
  • Page 29 If you will not use the product for a long time, please remove the battery and keep it in a safe place. If the battery leaks, remove the battery and wipe the battery compartment clean. This product uses a high-life battery and does not require frequent replace- ment.

  • Page 30: Troubleshooting

    Troubleshooting Cause of APP content Solution lssue Left wheel Left Wheel Fault Put the wheel on the ground error Push heavily the front bumper, Collision the check whether the front bumper can bounces back Please install the water tank No water The Water Tank Is Not correctly tank inside...
  • Page 31 FAQs Please install the right brush into the right bottom mounting port of the machine, the left brush into the left bottom mounting port of the machine, and ensure that the two side brushes are in place. What should I do when it can not work on the carpet? We don’t suggest you make it clean the carpet.
  • Page 32 Geek Technology Ltd. 1275 Bloomfield Ave Fairfield, NJ07004 Toll Free 1-844-801-8880 / (862) 352-0406 www.geektechnology.com...
