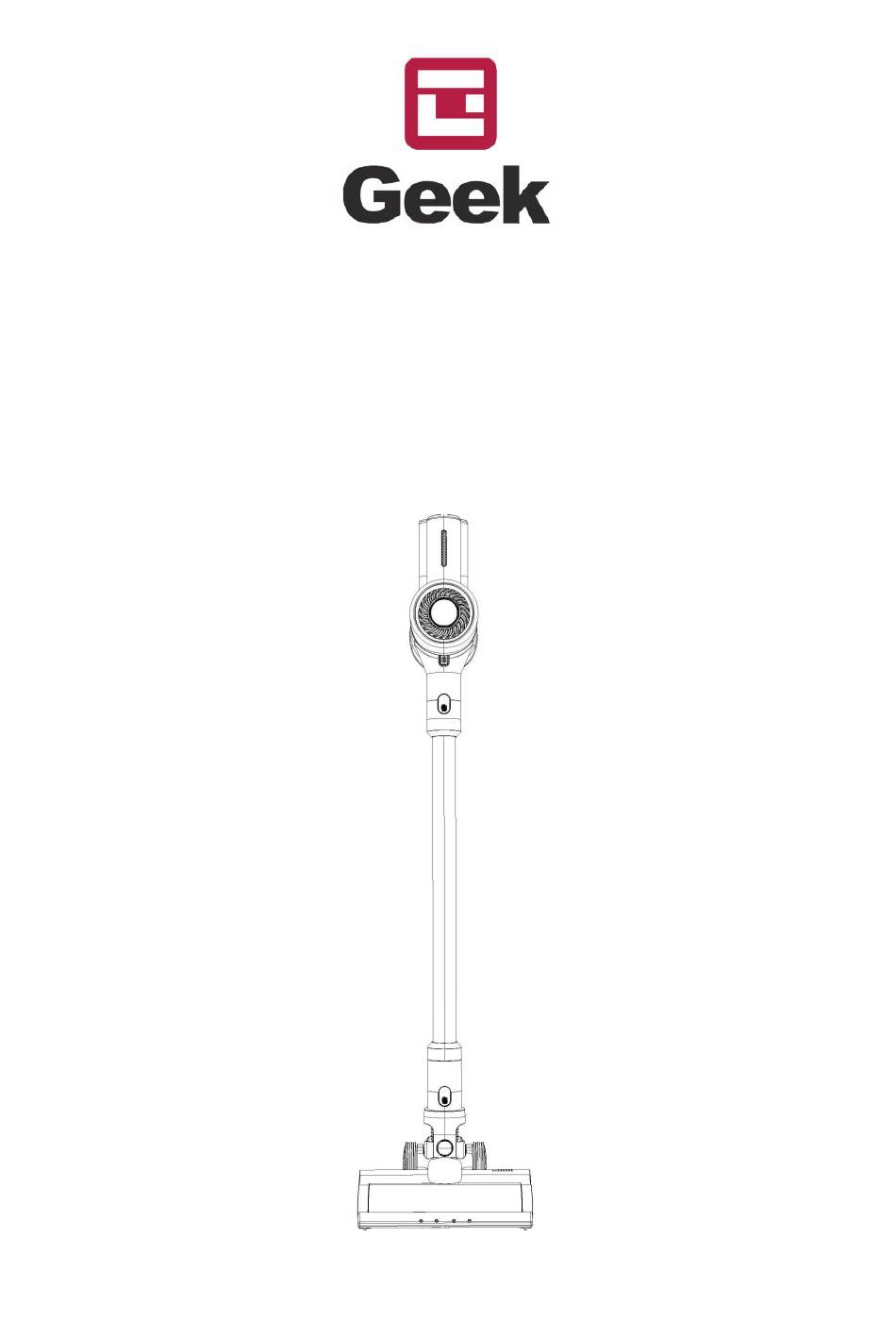

- Page 1 INSTRUCTION MANUAL Vacuum cleaner Model No. BC-8880A...
- Page 2 Warning: 1. Read this instruction booklet carefully. 2. This appliance is for domestic use only. Use as described in this instruction booklet. 3. Before using this appliance, check that the mains power voltage corresponds to the voltage shown on the rating plate. 4.
-
Page 3: Parts Description
Parts Description 1. Main unit 9. Floor brush release button 2. Aluminum tube 10. Charging port 3. Electrical floor brush 11. Battery pack 4. On/off button 12. Dust bin release button 5. Dust empty release button 13. Charger 6.Dust bin bottom plate 14. - Page 4 INSTRUCTION FOR USE Note: Before using the Cordless Vacuum cleaner for the first time, clean it with a soft, damp cloth and dry thoroughly. Do not immerse the Cordless Vacuum cleaner in water or any other liquid. Assembling the Cordless Vacuum cleaner 1.
- Page 5 Operating the Cordless Vacuum cleaner Before first time use, ensure the vacuum cleaner has been charged 5-5.5 hours. Turn on the Cordless vacuum cleaner by pressing the ON/OFF button and press the button max or min to adjust the power. Note: Battery indicator light represents battery capacity and will illuminate during use.
-
Page 6: Care And Maintenance
CARE AND MAINTENANCE Filter replacement and cleaning 1. Turn off the Cordless vacuum cleaner 2. Press and hold the dust cup release button and rotate the dust cup at a clockwise angle of 30 °, then remove the whole dust cup. 3.How to clean the dust cup：... - Page 7 4.Remove filter assembly: Filter, Hepa , Dust cup. 5.Cleaning the filter/hepa in water, wait for it to dry completely. 6.Put the filter/hepa back into the dust cup carefully. 7.Put the dust cup back into the main body: Dust cup counterclockwise rotation into the slot, hear the sound of "ka", that means the dust cup installed in place.
- Page 8 Floor brush cleaning 1. Turn the brush bottom screw to unlock position (picture) 2. Open the brush bottom fixed device. 3. Show brush, clean the rotating brush on the twisting thing. 4. Put the rotating brush back. 5. Turn the brush bottom screw to lock position STORE YOUR PRODUCTS Your cordless vacuum cleaner is enclosed with a wall mount which will help you to store your appliance in safe way, follow below steps:...
-
Page 9: Technical Specification
3. Dispose of the battery to a collection of chemical waste from. Attention: The battery pack of this model vacuum cleaner is Non-removable. If you need to replace battery pack ,Please send it to a professional maintenance station. TECHNICAL SPECIFICATION Model No. BC-8880A Voltage DC 22.2V Motor DC 22.2V, 120W Battery Lithium, 2200 mAh Charger Model No. -
Page 10: Troubleshooting Guide
TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE REASON POSSIBLE SOLUTION 1. no power in electrical outlet 1. check fuse or HAND VACUUM supplying transformer breaker .replace fuse/reset WILL NOT OPERATE 2. unit needs servicing breaker. 1.Empty dust cup. HAND VACUUM 1.Dust cup is full. Remove dust cup filter and WILL NOT PICK-UP 2.Dust cup filter needs... - Page 11 Warranty Information The manufacturer provides warranty in accordance with the legislation of the customer's own country of residence, with a minimum of 1 year The warranty only covers defects in material or workmanship. The repairs under warranty may only be carried out by an authorized service centre. When making a claim under the warranty, the original bill of purchase (with purchase date) must be submitted.
