J206 PCIB40 Technical Manual
Links 3 & 4
The outputs from counter 1 and 2 can be connected to the D-50 connector using LK4 and 3
respectively.
NOTE: The counter outputs are interfaced to the I/O connector using an inverting open-collector
driver. The output state is therefore the inverse of the counter output state defined in the data
sheet. When using the counter outputs, it is necessary to ensure that the I/O signals for group 2,
bits 0 and 1, are set for input mode by writing '1's to both bits. This avoids the counter output
conflicting with the I/O port output.
LK3
LK4

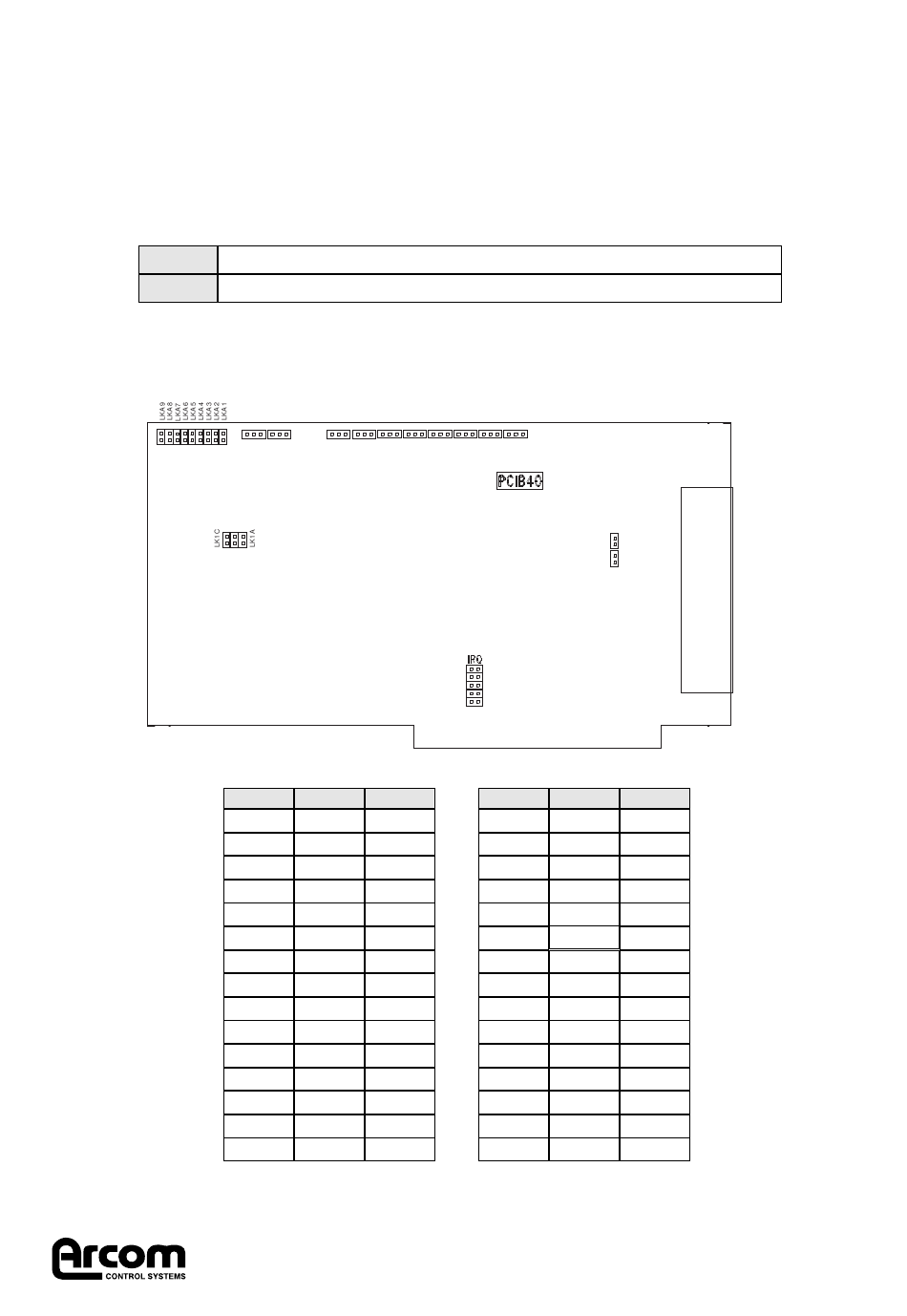

User Configuration Record Diagram

Counter 1 and 2 Output Select

Connects T2 output via inverter buffer, to RC24 (Digital group 2, bit 1)
Connects T1 output via inverter buffer, to RC23 (Digital group 2, bit 0)
LK22 LK12
LK24 LK14 LK23 LK13
A B A B
A B A B A B A
LK1B
Link Default User
LKA1
LKA2
LKA3
LKA4
LKA5
LKA6
LKA7
LKA8
LKA9
LK10
LK11
LK12
LK13
LK14
LK20
LK21 LK11 LK20 LK10
B A B A B A B
B A
IRQ2
IRQ3
IRQ4
IRQ5
IRQ7
Link Default
LK21
LK22
LK23
LK24
LK1A
LK1B
LK1C
LK3
LK4
IRQ2
IRQ3
IRQ4
IRQ5
IRQ3
IRQ7
2192-09066-000-000
LK4
LK3
User
9
