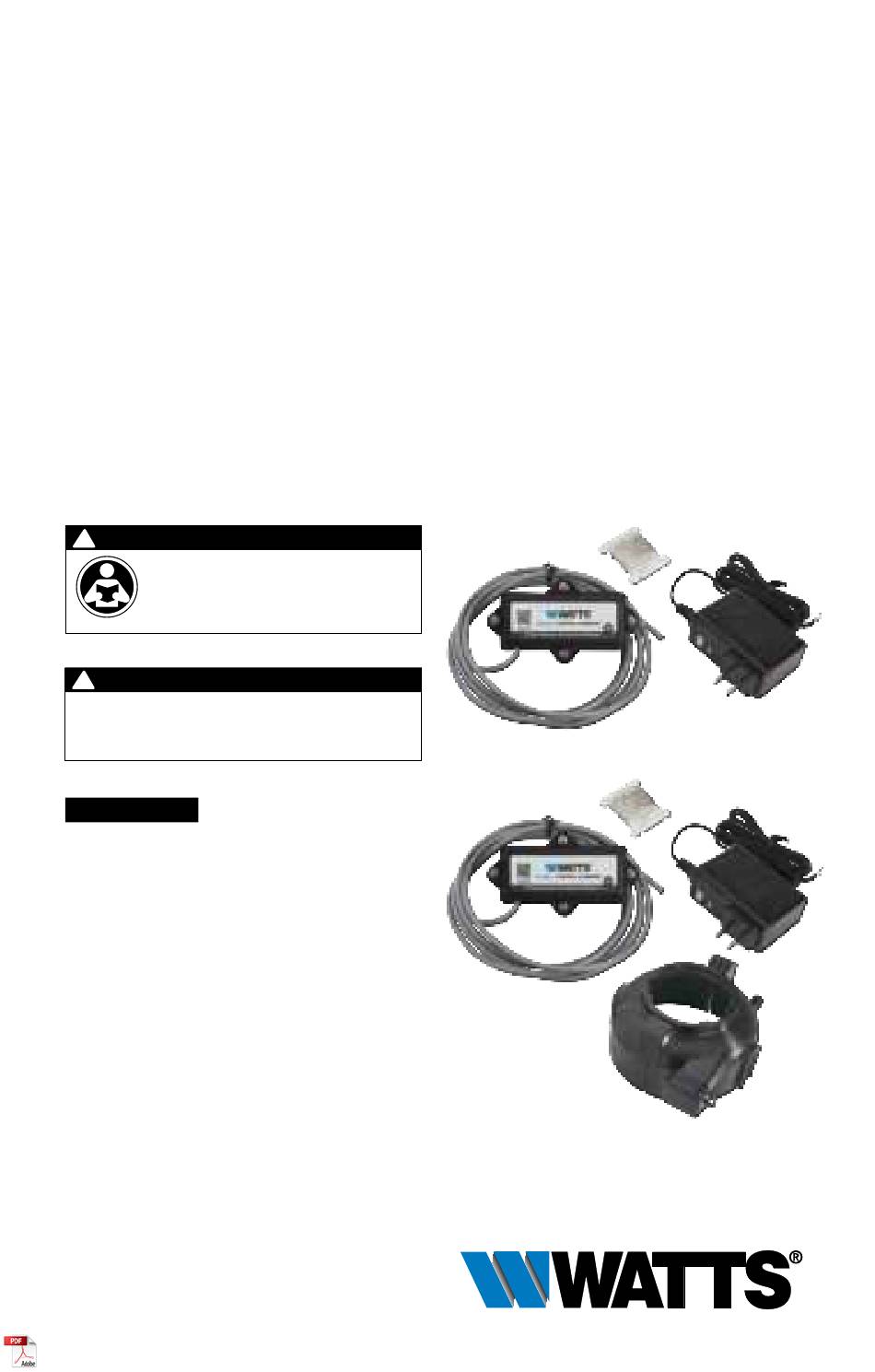

Installation Instructions

BMS Sensor Connection Kit

and Retrofit Connection Kit

Series 957-FS, 957RPDA-FS, LF957RPDA-FS

Series 994-FS, 994RPDA-FS

Series C400-FS, C500-FS, LFC500-FS

Series 4000SS-FS, 5000SS-FS

⁄

" – 10"

WARNING

Read this Manual BEFORE using this equipment.

Failure to read and follow all safety and use infor-

mation can result in death, serious personal injury,

property damage, or damage to the equipment.

Keep this Manual for future reference.

WARNING

You are required to consult the local building and plumbing codes prior to

installation. If the information in this manual is not consistent with local

building or plumbing codes, the local codes should be followed. Inquire

with governing authorities for additional local requirements.

NOTICE

Use of the SentryPlus Alert

technology does not replace the

need to comply with all required instructions, codes, and regu-

lations related to the installation, operation, and maintenance of

the backflow preventer to which it is attached, including the

need to provide proper drainage in the event of a discharge.

Watts

is not responsible for the failure of alerts due to

connectivity or power issues.

Monitor relief valve discharge with smart and connected

technology to detect and notify of flooding. The BMS Sensor

Connection Kit activates the integrated flood sensor to enable

functions that detect flood conditions. The BMS Sensor Retrofit

Connection Kit upgrades existing installations by integrating

and activating the flood sensor to enable functions for flood

detection. When excessive relief valve discharge occurs, the

flood sensor energizes a relay signaling flood detection and

triggers real-time notification of potential flood conditions

through the building management system, or BMS.

IS-FloodSensor-957/994/Colt/SS-BMS

Connection Kit

Retrofit Connection Kit

Need help?

Do you have a question about the 957-FS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Watts 957-FS Series

Page 1 Watts ® is not responsible for the failure of alerts due to connectivity or power issues.

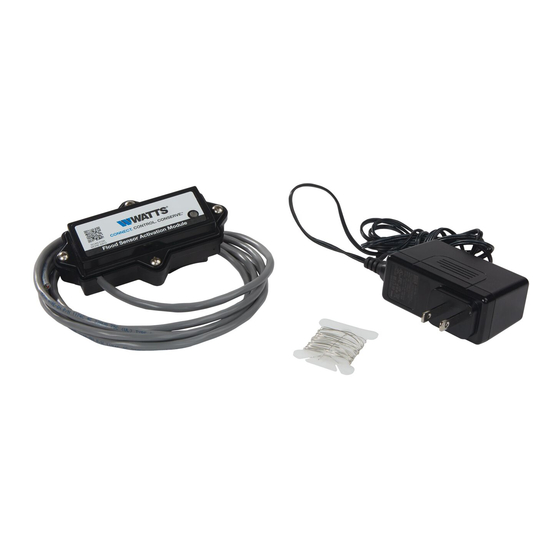

Page 2: Kit Components
Kit Components All kits include the sensor activation module NOTICE and power adapter to enable the flood sensor. The connection kits are suitable for installation on the Retrofit kits also include the flood sensor and specified valve series only. related components. If any item is missing, speak with your account representative.
Page 3 Install the Flood Sensor and Sensor Activation Module Attach the flood sensor and the sensor activation module to the backflow relief valve. For assemblies with the integrated flood sensor, start at step 4. The sensor activation module receives a signal from the flood sensor when a discharge is detected. If the discharge meets the conditions of a qualifying event, the normally open contact is closed to provide a signal to the BMS input terminal.
Page 4 The flood sensor LED is steady green when the unit is ready. Limited Warranty: Watts (the “Company”) warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge.
Page 5 à l’entretien de l’appareil antirefoulement auquel il est fixé, y compris la nécessité de fournir un drainage adéquat en cas de décharge. Watts ® n’est pas responsable de la défaillance des alertes en raison de problèmes de connectivité ou d’alimentation.
Page 6 Composants de la trousse Toutes les trousses comprennent le module AVIS d’activation du capteur et l’adaptateur Les trousses de connexion conviennent uniquement à une d’alimentation pour activer le capteur installation sur la série de vannes spécifiée. d’inondation. Les trousses de modernisation comprennent également le capteur d’inondation et les composants connexes.
Page 7 Installation du capteur d’inondation et du module d’activation du capteur Fixez le capteur d’inondation et le module d’activation du capteur à la soupape de décharge de refoulement. Pour les assemblages avec capteur d’inondation intégré, commencez à l’étape 4. Le module d’activation du capteur reçoit un signal du capteur d’inondation lorsqu’une décharge est détectée.
Page 8 Garantie limitée : Watts (la « Société ») garantit que chacun de ses produits est exempt de vice de matériau et de fabrication dans des conditions normales d’utilisation pour une période d’un an à compter de la date d’expédition d’origine. Si une telle défaillance devait se produire au cours de la période sous garantie, la Société...
Page 9 ® Watts no asume responsabilidad por fallas de las alertas debido a problemas de conectividad o de alimentación. Monitoree la descarga de la válvula de alivio con tecnología inteligente y conectada para detectar inundaciones y notificar sobre inundación.
Page 10 Componentes del kit Todos los kits incluyen el módulo de activación AVISO del sensor y el adaptador de alimentación Los kits de conexión son adecuados para la instalación en la para habilitar el sensor de inundación. Los serie de válvulas especificada únicamente. kits de retroadaptación también incluyen el sensor de inundación y los componentes relacionados.
Page 11 Instalación del sensor de inundación y del módulo de activación del sensor Conecte el sensor de inundación y el módulo de activación del sensor a la válvula de alivio del contraflujo. Para ensamblajes con el sensor de inundación integrado, comience en el paso 4. El módulo de activación del sensor recibe una señal del sensor de inundación al detectar una descarga.
Page 12 Garantía limitada: Watts (la “Compañía”) garantiza que cada producto está libre de defectos en los materiales y la mano de obra en condiciones de uso normal en el período de un año a partir de la fecha de envío original. En caso de que tales defectos se presenten dentro del período de garantía, la Compañía, a su criterio, reemplazará...
