Peavey PVM 480 Specifications

SPECIFICATIONS PVM 480
™
Element type:
Black-electret condenser
Frequency response:
40 Hz to 20 kHz
Pick up pattern:
Supercardioid
Front-to-back rejection:
20 dB at nulls (typical)
Impedance:
Low (500 ohms, balanced)
Sensitivity (at 1 kHz open
circuit voltage):
-46 dBV/Pa (1 Pa = 94 dB SPL)
Maximum SPL:
128 dB
S/N ratio:
Better than 69 dB
reference 1 Pascal
Connector:
Three-pin XLR type
Power requirements:
Phantom 9-52 volts
Finish:
Powder coat
Phasing:
Positive (inward) pressure on
diaphragm produces positive
voltage at Pin #2
Weight:
2.5 oz. (70.8 g)
Furnished accessories:
External windscreen, mic clip
and 25' balanced cable
Features:
• Permanently polarized
condenser element (back-
electret type)
• Flat, wide-range frequency
response
• Very effective
supercardioid directional
pattern
• Wide dynamic range
• 9-52 volt phantom supply
capability
• Rugged construction
• External windscreen, mic
clip and 25' balanced
cable provided
Description

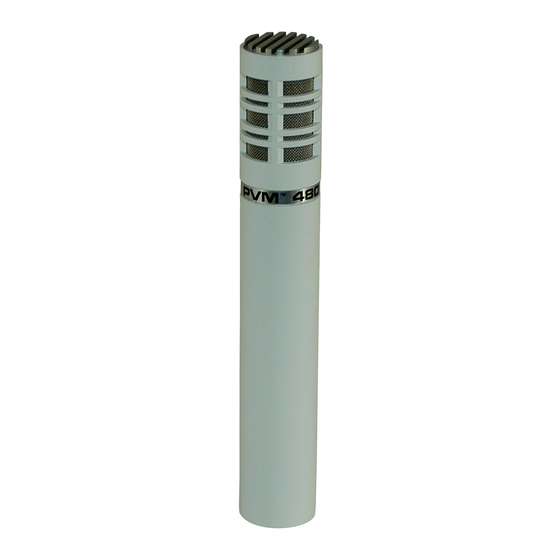

The PVM 480 is a permanently
polarized condenser
microphone utilizing advanced
back-electret technology to
achieve optimum performance.
The widely extended
flat frequency response
and excellent transient
characteristics ensure accurate
reproduction of almost any
type of sound.
Very good rejection of
unwanted sound and feedback
is afforded by the PVM 480's
highly effective supercardioid
polar response. The unusual
frequency uniformity of this
pattern ensures minimal sound
coloration due to the acoustic
environment.
The electronic circuitry is
specially designed to provide
a high signal-to-noise figure
and clean reproduction of
high-level sounds, resulting in
a comfortably wide dynamic
range.
The PVM 480 will operate
properly with any phantom
power supply providing
between 9 and 52 volts.
