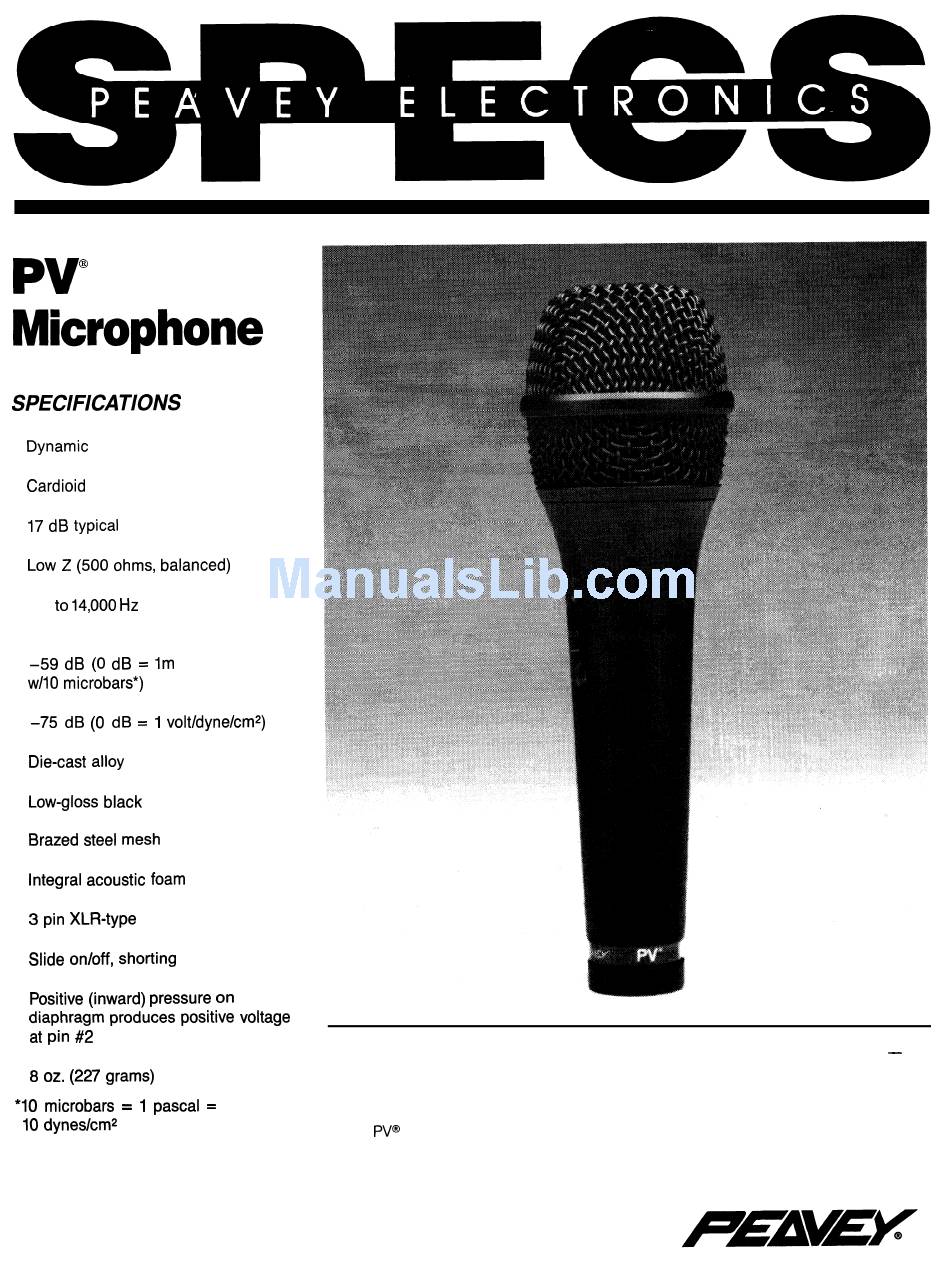

Peavey PV Specifications
Peavey PV Specifications

Peavey PV Specifications

Peavey pv microphones: specifications
Hide thumbs Also See for PV:

Advertisement

Quick Links

Element Type:
Polar Pattern:
Front-to-Back Rejection:
Impedance:
Frequency Response:
50 to 14,000 Hz
Sensitivity:
Output Power Level:
Open Circuit Voltage:
Case (Housing):
Finish:
Windscreen:
Pop Filter:
Connector:
Switch:
Phasing:
Weight:
FEATURES:
On/off switch in handle
l
Clean, natural sound
l
Cardioid unidirectional polar
l
response
Low pop and handling noise
l
Rugged die-cast and steel case
l
Low-gloss black finish
l
DESCRIPTION:
The PV@ is a cardioid unidirectional
dynamic microphone designed for
applications in which a built-in "on/off"
switch is desired. With a clean, natural
speech response and good noise and
feedback rejection, the PV is an ideal
microphone for vocals, church and
institutional systems, meeting rooms,
auditoriums, and some instruments -
almost anywhere in which convenient
local control of the microphone is
required. The PV mic has been

Advertisement

loading

Summary of Contents for Peavey PV

  • Page 1 “on/off” switch is desired. With a clean, natural speech response and good noise and feedback rejection, the PV is an ideal microphone for vocals, church and institutional systems, meeting rooms, auditoriums, and some instruments -...
  • Page 2 (Another possible alternative is to rewire the PV so that the switch is used to open one side of the line for (‘off.“) For high impedance mics, cable lengths of 25’ or more and input impedance...
  • Page 3 Figure 4. Polar Patterns 200 Hz 500 Hz 1 kHz 5 kHz 10 kHz DIMENSIONS INCHES (MILLIMETERS) WIRING DIAGRAM __--------------------------- -------------------- POSITIVE (INWARD) PRESSURE ON DIAPHRAGM PRODUCES POSITIVE VOLTAGE AT PIN #2...
  • Page 4 If the defect is remedial under this limited Peavey Electronics Corporation 711 A Street / Meridian, MS 39301 / U.S.A. / (601)483-5365 / Telex 504115 / Fax 486-l 278 01992 warranty and the other terms and conditions...
