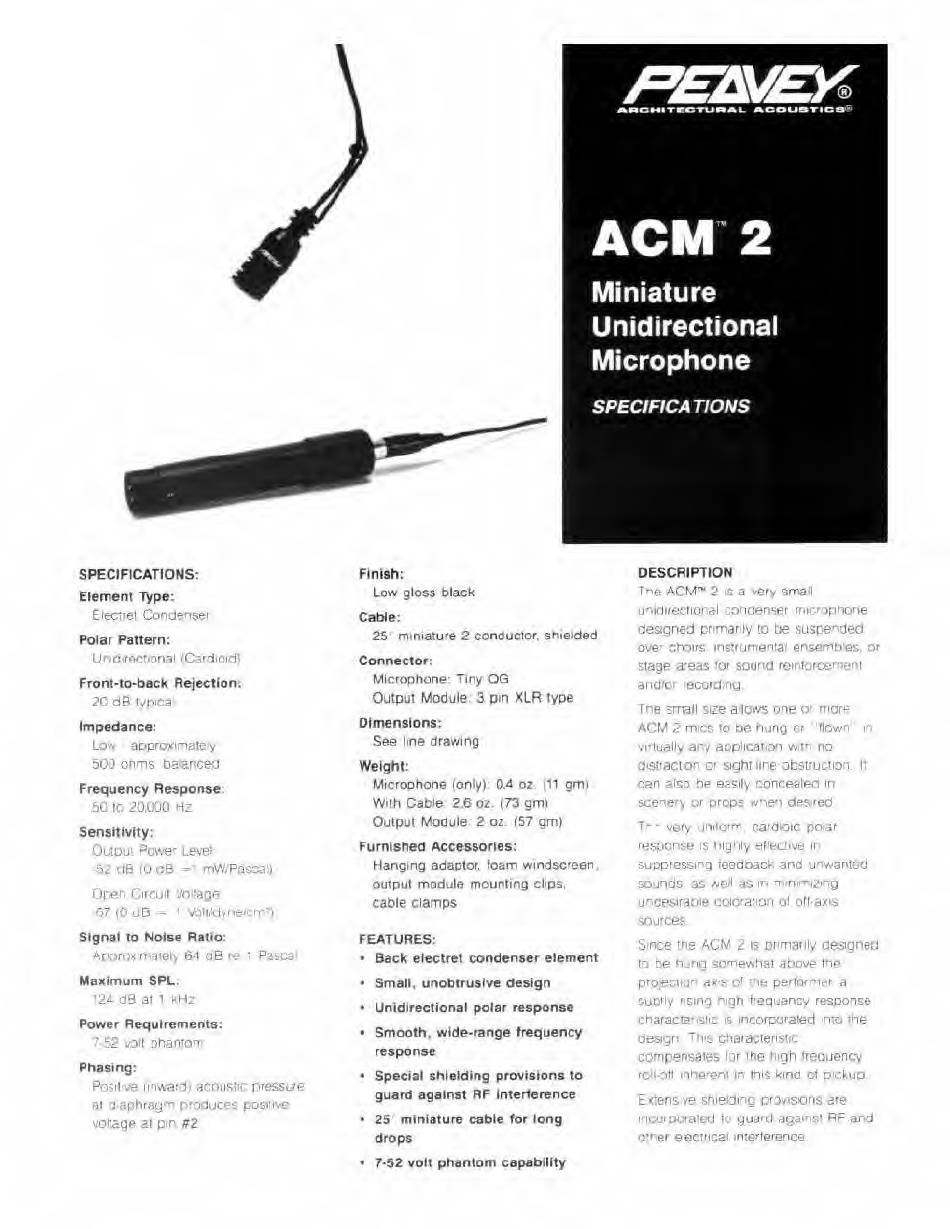

Peavey ACM 2 User Manual

ARCHITECTURAL ACOUSTICS'
ACM 2
Miniature
Unidirectional
Microphone
SPECIFICATIONS
SPECIFICATIONS:
Element Type:
Electret Condenser
Polar Pattern:
Unidirectional (Cardiold)
Front-to-back Rejection:
20 dB typica
Impedance:
Low approximately
500 ohms balanced
Frequency Response:
50 lo 20.000 Hz
Sensitivity:
Output Power Level
-52 dB (0 oB =i mW/Pascai)
Open Circuit Voltage
•67 (0 dB = t Voli/dyne/crn*)
Signal to Noise Ratio:
Approximately 64 dB re ' Pascal
Maximum SPL
'24 dB at 1 kHz
Power Requirements:
7-52 volt ohaniom
Phasing:
Positive (inward) acoustic pressure
at diaphragm prepuces positive
voltage al pm
U2
Finish:
Low gloss black
Cable:
25 ' miniature 2 conductor, shielded
Connector:
Microphone* Tiny OG
Output Module 3 pin XLR type
Dimensions:
See Ime drawing
Weight:
Microphone (only): 0.4 oz (11 gm)
With Cable 2.6 oz. (73 gmi
Output Module 2 oz. (57 gm)
Furnished Accessories:
Hanging adaptor, foam windscreen,
output module mounting clips,
cable clamps
FEATURES:
• Back electret condenser element
• Small, unobtrusive design
• Unidirectional polar response
• Smooth, wide-range frequency
response
• Special shielding provisions to
guard against RF interference
• 25 miniature cable for long
drops
• 7-52 volt phantom capability
DESCRIPTION
The ACM" 2isa very small
unidirectional condenser microphone
designed primarily to be suspended
ove' choirs instrumental ensemb'es. or
stage areas for sound reinforcement
and'or recording
The small size allows one or more
ACM 2 mics to be hung cr "flown' m
virtually any application with no
distract on or sight line obstruction. It
can also be easily concealed in
scenery or props when desired
T-- very uniform cardioic polar
response is highly effective in
suppressing feedback and unwanted
sounds, as well as in minimizing
uncesiraoie coloration of off-axis
sources.
Since the ACM 2 is primarily designee
to be hung somewhat above the
protection axis of tne performer a
SUOlly rising nigh frequency response
characteristic is incorporated nto the
design This characteristic
compensates tor the high frequency
roll-off inherent in this kina ot pickup.
Extens ve shielding provisions are
incorporated to guard against RF and
other electrical interference
