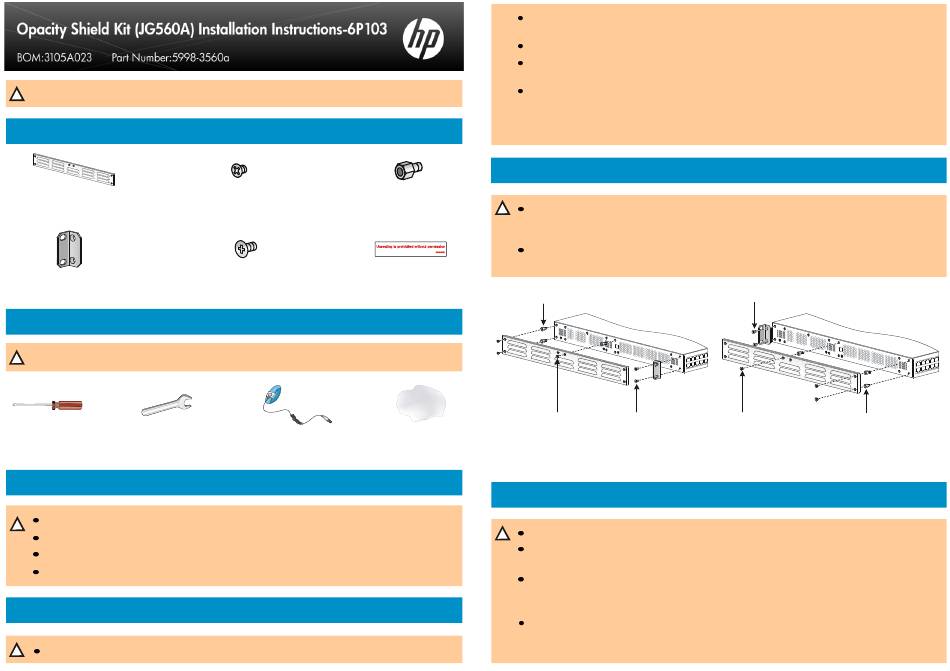

HP JG560A Installation Instructions

HP 5800 switches meet the requirement of FIPS security level 2.

Introduction to the opacity shield kit

Opacity shield M3 countersunk-head screw (used to
(1 in total) secure the opacity shield, 3 in total)
Two-holed mounting bracket M4 countersunk-head screw (used to
(2 in total) secure the mounting brackets, 4 in total)

Installation tools

The installation tools are not provided with the switch. Prepare them yourself.
Phillips
Spanner
screwdriver

Applicable products

HP 5800-24G-PoE+ Switch (JC099A/JC099B)
HP 5800-24G-PoE+ TAA Switch (JG254A/JG254B)
HP 5800-48G-PoE+ Switch with 1 Interface Slot (JC104A/JC104B)
HP 5800-48G-PoE+ TAA Switch with 1 Interface Slot (JG257A/JG257B)

Installation preparation

The installation procedures must be performed by qualified personnel.
Hex bolt
(3 in total)
Tamper evidence
label (30 in total)
ESD-preventive wrist Alcohol-based
strap cleaning pad
Before installation, read the Compliance and Safety Manual for the compatible switch
of the opacity shield kit.
Make sure the operating temperature is not higher than 40°C (104°F).
Wear an ESD-preventive wrist strap, and make sure the wrist strap makes good skin
contact and is well grounded.
The two-holed mounting brackets are not designed to support the weight of the switch.
To mount the switch to the rack, install a rack shelf in a proper position of the rack,
place the switch on the rack shelf, and use screws to secure the two-holed mounting
brackets to the rack posts.

Installing the opacity shield

The methods for installing the opacity shields to an HP 5800-24G-PoE+ Switch and an
HP 5800-48G-PoE+ Switch with 1 Interface Slot are the same. This section uses an HP
5800-24G-PoE+ Switch as an example.
Only use the screws and hex bolts that are supplied in the opacity shield kit to secure
the opacity shield.
Hex bolt
M3 countersunk- M4 countersunk-
head screw head screw
The mounting bracket is installed
at the port side of the chassis.

Applying tamper evidence labels

Make sure the chassis temperature is above 10°C (50°F).
Before applying tamper evidence labels, use alcohol-based cleaning pads to clean the
chassis and air dry the cohesive areas.
Apply tamper evidence labels to all field replacement units
(for example, opacity shields and interface cards), USB ports, and any M3
countersunk-head screw on an opacity shield.
The methods for applying tamper evidence labels are the same when the mounting
brackets are installed at the port side and the power supply side. In the following
example, the mounting brackets are installed at the port side.
M4 countersunk-head screw
countersunk- Hex bolt
head screw
The mounting bracket is installed at
the power supply side of the chassis.
