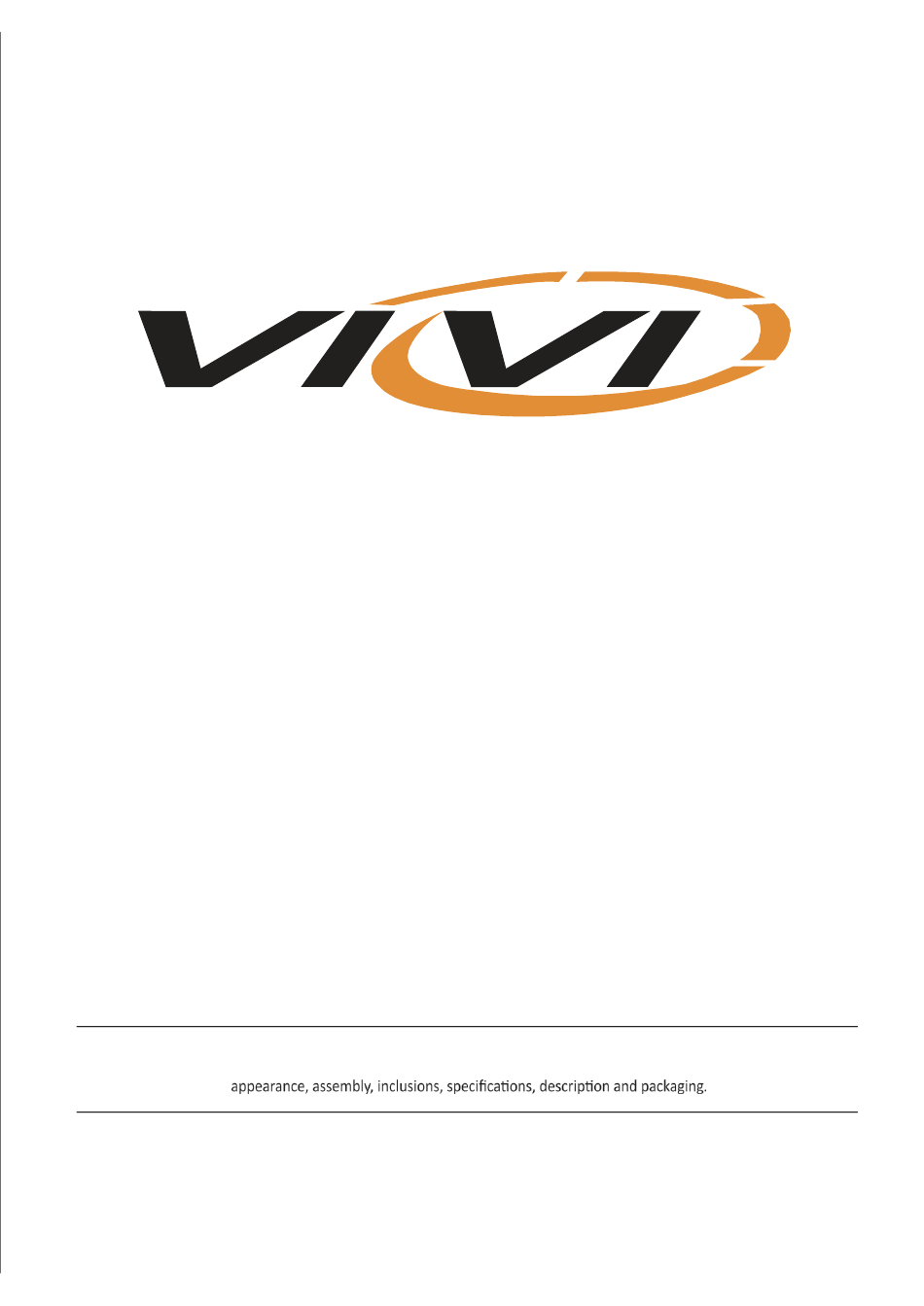

ELECTRIC BICYCLE
User Manual
[ VIVI TT2020-Z2]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
After-sale Email: service.viviebike@gmail.com
Made in Chin
a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT2020-Z2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VIVI TT2020-Z2

Summary of Contents for VIVI TT2020-Z2

  • Page 1 ELECTRIC BICYCLE User Manual [ VIVI TT2020-Z2] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in After-sale Email: service.viviebike@gmail.com...

  • Page 2: Table Of Contents

    Batteries and Battery Charging................13 To charge the battery: ....................13 Removing the Battery Pack..................14 Maintenance ......................15 Battery Storage......................16 Battery Fuse......................17 Tyre Pressures......................17 Chain Care.........................17 Torque Settings......................17 Frequently Asked Questions..................18 Troubleshooting......................18 Record Your VIVI bike Info..................21...

  • Page 3: Safety

    Safety  Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions ...

  • Page 4: Parts Assembly

    Parts assembly Carefully place the bicycle assembly on a flat surface so that it rests on the front fork and rear wheel. Front Wheel 1. Remove the front fork protector from the front fork. (Please note: front fork protector is used to prevent the fork from being deformed during transport.
  • Page 5 3. When the front wheel is mounted on the fork, the washer is on the inside, and a gasket is added on the outside and a safety hook is added. Thick gasket Thin gasket Safety hook Safety hook...

  • Page 6: Handlebars

    4. Use your thumb to measure the distance between the tires on both sides and the front fork. Hold the front hub with your right hand and lock the left nut and then the right nut until both sides are locked Handlebars 1.

  • Page 7: Seat

    3. lock the quick release handle with the palm of your hand until it is completely locked, preferably with the safety plastic latch (this is very important!!) 4.Release the handlebar quick release handle, turn the handlebar hand, adjust the brake handle to the plane or Angle you want about 15-30 degrees, and finally lock the quick release handle with your palm until the lock is tight.If it feels too loose or too tight, adjust the nut below.

  • Page 8: Front Ligh

    Note that small changes in seat position can have a substantial effect on comfort. It is recommended to make seat adjustments in small increments and test the position, then re- adjust as necessary. Front light 1.Use the "5"# hexagon tool to loosen the screw on the front fork, then screw through the headlight rack hole to lock the screw...

  • Page 9: Pedals

    Pedals It is critical that you follow the pedal to crank arm attachment procedure carefully to ensure correct assembly. During assembly, do NOT use excessive force to screw the pedals into the crank arms – this may indicate misalignment of the pedals or mis-matched threads. If the pedal does not "feel right"...
  • Page 10 Ⅱ．Product components Brake lever Saddle Front Fork Freewheel Rear derailleur 1、Saddle 7、Controller box 13、Quick lock 19、Handle bar 2、Seat tube 8、Front Fork 14、Folding system 20、Quick lock 3、Battery box 9、Freewheel 15、Chain 21、Stem 4、Brake lever 10、Brake disc 16、Chain wheel 22、Headlight 5、Valve 11、Motor 17、Crank 6、Mudguard 12、Rear derailleur 18、Pedal...

  • Page 12: Operation And Use

    Operation and use ("pedal power") alone can be used. It is recommended to use pedal assistance when necessary, and not rely on it solely. When using pedal assistance, also pedal for best efficiency.  The bicycle must be moving,or have enough pressure placed on the pedals (in a forward direction) to activate pedal assistance.
  • Page 13 Meter operation 3.1 Meter instruction 3.2 Meter operation a, Please kindly note that the key must be fully pushed in for the bolt,and must stay in to operate the ebike (there are 3 key spots - unlock, lock, and lock on where you operate the ebike). b, In the pedal assist mode,you need to step on the pedal so that the bike will be moved.

  • Page 14: Using Gears

    Using Gears Some model bicycles are equipped with gears. Gears are used to change the ratio between rotations of the rear wheel and the crank set. This enables you to pedal less and travel faster on flat or downhill sections, or pedal faster and travel slower to climb hills. Gearing is independent to pedal assistance, so pedal assistance operates the same regardless of selected gear.

  • Page 15: Using Brakes

    Using Brakes All bicycle models are equipped with a front and rear wheel braking system. Brakes are used to slow the bicycle down. The braking systems may use different mechanics; however,the functionality is the same, and that is to change the energy of the moving bicycle into heat energy（“friction”): For disc brakes, this means pads made from a special friction material pinching against a disc mounted to the centre of the bicycle wheel.

  • Page 16: Batteries And Battery Charging

    Batteries and Battery Charging Never modify the electrical system. Alterations may cause a fire, resulting in serious injury and could also damage the electrical system.  Charge with the supplied charger only. Use of the wrong charger may cause a fire or explosion, resulting in serious injury.

  • Page 17: Removing The Battery Pack

    Removing the Battery Pack Please first remove the two battery fixing screws under the car tube with the "4" # inner hexagon tool, and then open the safety buckle and folding handle of the frame folding machine. After folding, you can see the battery cover plate and remove the two screws with a Phillips screwdriver, and finally pull out the battery.Install back to send steps in reverse order on the way.

  • Page 18: Maintenance

    Maintenance Some maintenance activities described may be beyond the scope of some users. Do NOT attempt procedures that you are not comfortable with, or do not have the necessary tools, experience or knowledge for - take the unit to an authorised service centre or qualifed technician for servicing. Items in the maintenance schedule below that are recommended to be performed by a qualified technician are highlighted yellow.

  • Page 19: Battery Storage

    Maintenance Schedule Check Before *Check Clean / Adjust / Tighten / Component / Condition Every Ride Periodically Lubricate Replace as Required Tyre Pressure Tyre Wear / Damage Brake Adjustment Handlebar Tightness Controls and Display Seat Post Tightness Fasteners / Mounting Hardware Brake Pads / Shoes Brake Cable Wear Chain...

  • Page 20: Battery Fuse

    Battery Fuse Use fuses of the same type only - the rating (in Amperes) is printed on the end of the fuse. . If the fuse"blows" regularly, have the bicycle inspected at an authorised service centre. The bicycle battery/ electrical system may feature fuse protection to prevent damage in the event of a short circuit, overload or over current situation.

  • Page 21: Troubleshooting

    Frequently Questions & Answers Q:Is it normal for batteries to get warm when charging? A: Yes, it is normal that the batteries will become warm during the charging process. Q:How long will my batteries last before needing replacement? A: Average battery life depends on use and conditions. Even with proper care, rechargeable batteries do not last forever.
  • Page 22 Malfunction Possible Cause Possible Solution 1. Stiff chain link. 1. Lubricate chain. 2. Loose pedals / bearings. 2. Tighten / adjustbearings. Clicking noises 3. Loose bottom bracket/ 3. Tighten / adjustbearings. when pedalling bearings. 4. Replace. 4. Bent bottom bracket or pedal 5.
  • Page 23 Possible Cause 1. Check connectors / wiring. Replaceas 1. Loose connectors / wiring Pedal assistance OK, required. damage. but no display 2. Replace. 2. Faulty controller. 1. Check connectors / wiring. Replaceas 1. Loose motor connectors / required. wiring Display OK, but no damage.

  • Page 24: Record Your Vivi Bike Info

    Record Your VIVI bike Info Item Info Bicycle Serial Number Model Color Date of Purchase Dealer’s Name Dealer’s Phone Dealer’s E-mail...
